SMART KEY SYSTEM SELF-DIAGNOSIS
The smart key system is equipped with a self-diagnostic function. If a malfunction is detected in the sys-
tem, the malfunction will be indicated by the flash pattern of the smart key system indicator light “ ”.
TIP
The smart key system indicator light “ ” comes on for 1 second when the ON/start switch is pushed. If
one of the following malfunctions is detected, the indicator light starts flashing.

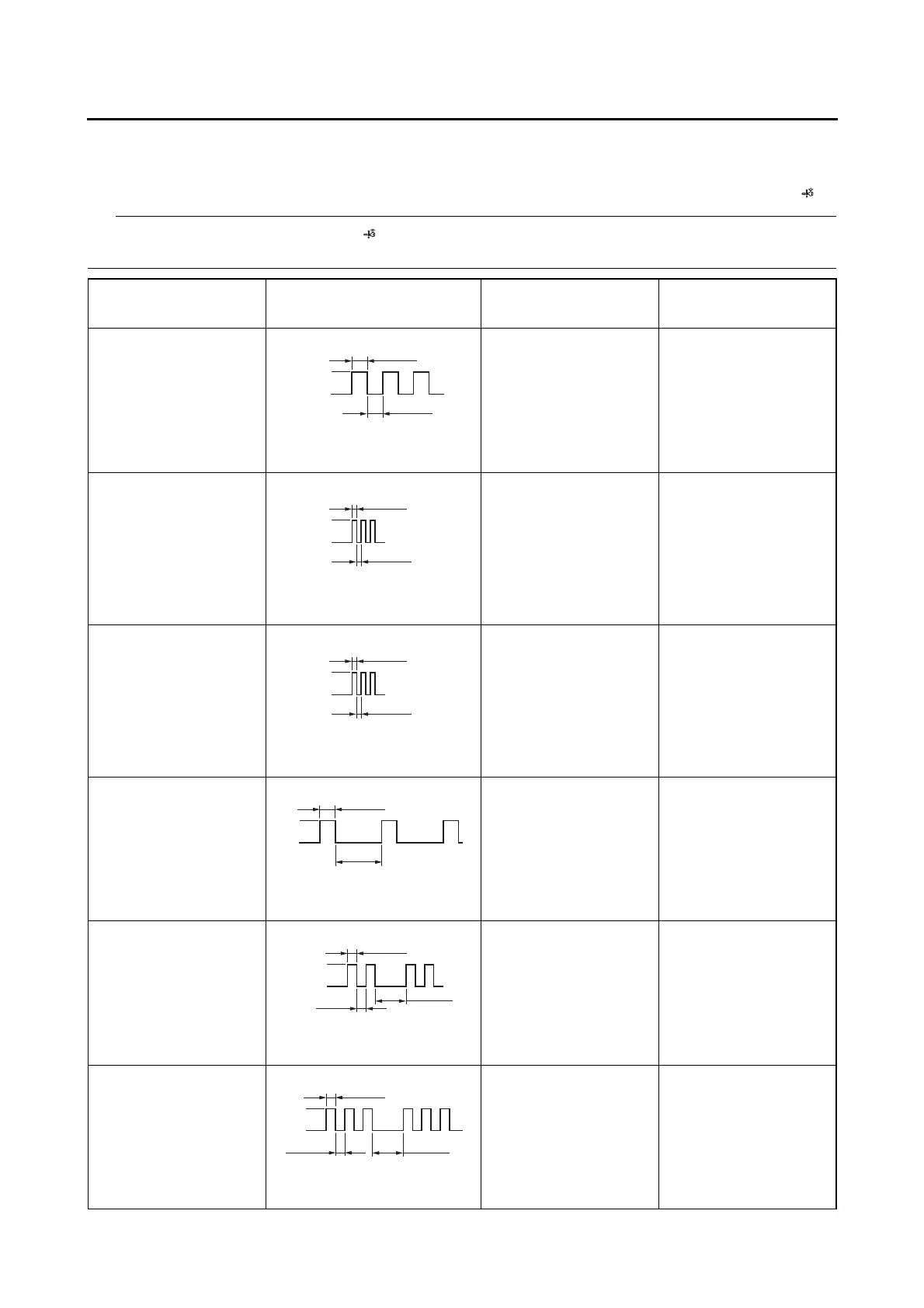

Item Flash pattern
Flashing time/number
of flashes
Malfunction and
check point
Low voltage of smart
key button cell battery
a. LED on
b. LED off
20 (seconds)
Replace the button cell
battery of the smart key.
Refer to “SMART KEY
SYSTEM” on page
8-193.
Vehicle power off verifi-
cation error
a. LED on
b. LED off
10 (seconds)
The smart key cannot
be recognized.
Check that there are no
sources of strong elec-
tromagnetic waves in
the vicinity, the smart
key is not lost, and the
battery is not dis-
charged.
Running detection
error*
a. LED on
b. LED off
Flashes continuously
until the error is
resolved.
The smart key cannot
be recognized.
Check that there are no
sources of strong elec-
tromagnetic waves in
the vicinity, the smart
key is not lost, and the
battery is not dis-
charged.
• Steering lock is stuck
• Steering lock cannot
be released
a. LED on
b. LED off
20 (seconds)/10 times
Check whether the
steering lock is stuck.
Steering lock or center-
stand lock communica-
tion error
a. LED on
b. LED off
20 (seconds)/flashes 2
times in a repeating
cycle
Check the wire harness.
• Steering lock data
error
• Steering lock unit mal-
function
a. LED on
b. LED off
20 (seconds)/flashes 3
times in a repeating
cycle
Check the wire harness.
Check the steering lock
unit.
0.5
(s)
0.5
(s)
a
b
0.15
(s)
0.15
(s)
a
b
0.15
(s)
0.15
(s)
a
b
0.5
(s)
1.5
(s)
a
b
a
b
0.3
(s)
0.3
(s)
1.0
(s)
0.3
(s)
0.3
(s)
1.0
(s)
a
b
