ENGINE REMOVAL
5-4
Disconnecting the leads and hoses

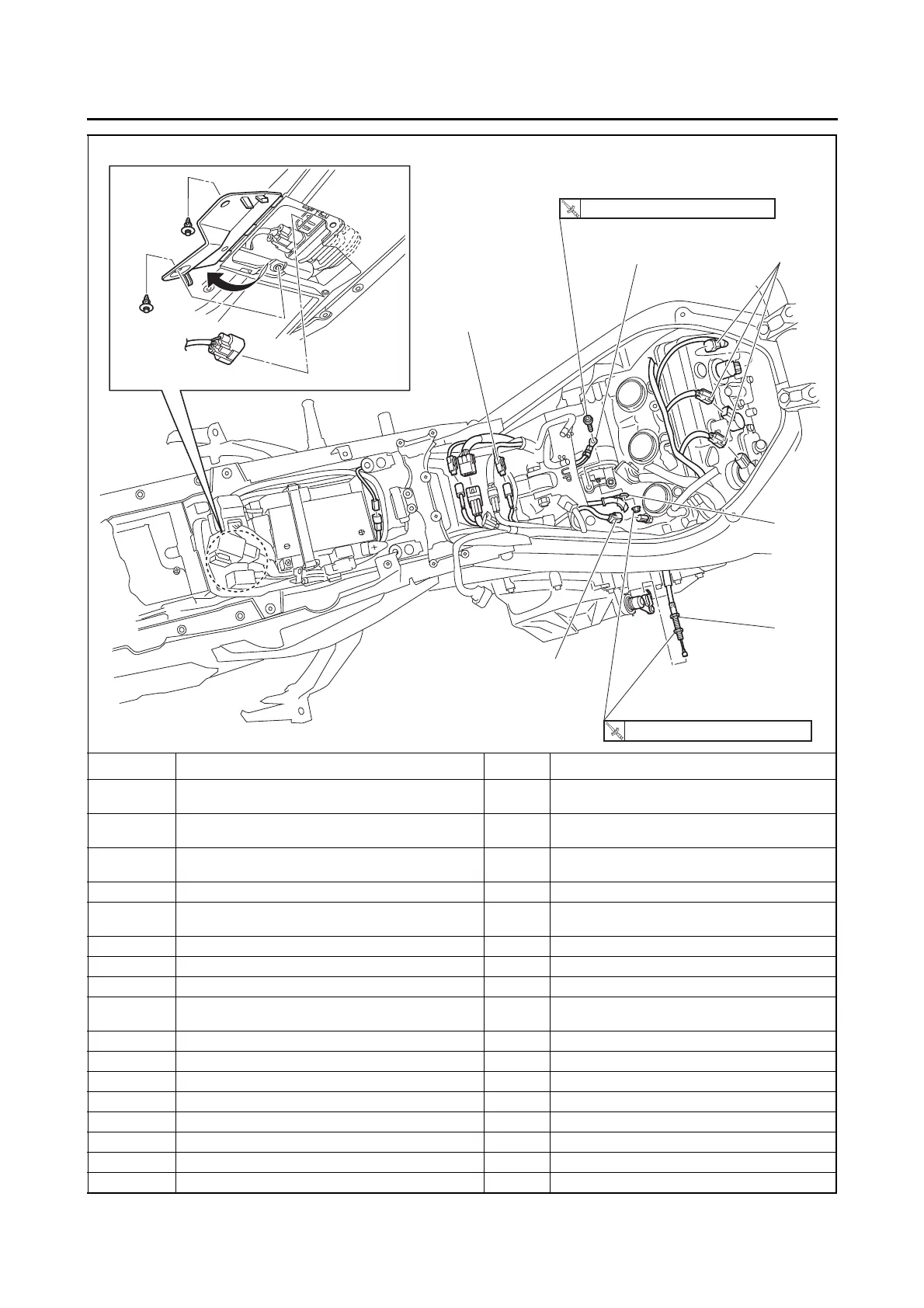

Order Job/Parts to remove Q’ty Remarks
Fuel tank front cover/Front side panel/Front side
cowling
Refer to “GENERAL CHASSIS (2)” on page
4-6.
Passenger seat/Rider seat/Rear side cover (left)
Refer to “GENERAL CHASSIS (1)” on page
4-1.
Fuel tank cover
Refer to “GENERAL CHASSIS (3)” on page
4-13.
Fuel tank/Canister Refer to “FUEL TANK” on page 7-1.
Air filter case
Refer to “GENERAL CHASSIS (3)” on page
4-13.
Throttle bodies Refer to “THROTTLE BODIES” on page 7-5.
Fuel rail Refer to “THROTTLE BODIES” on page 7-5.
Radiator Refer to “RADIATOR” on page 6-1.
Air cut-off valve
Refer to “AIR INDUCTION SYSTEM” on
page 7-15.
Footrest assembly (right) Refer to “REAR BRAKE” on page 4-48.
Drive sprocket Refer to “CHAIN DRIVE” on page 4-98.
1 Clutch cable 1 Disconnect.
2 Starter motor lead 1 Disconnect.
3 Negative battery lead 1 Disconnect.
4 Ignition coil coupler 3 Disconnect.
5 Coolant temperature sensor coupler 1 Disconnect.
6 Oil level switch coupler 1 Disconnect.
1
2
34
5
6
7 N・m (0.7 kgf・m, 5.1 lb・ft)
12 N・m (1.2 kgf・m, 8.7 lb・ft)
To Next Page
