Yamaha TRB-JP2 - Circuit Diagram and Connections; Electronic Circuit Schematic; Component Identification Key

TRB-JP2
7

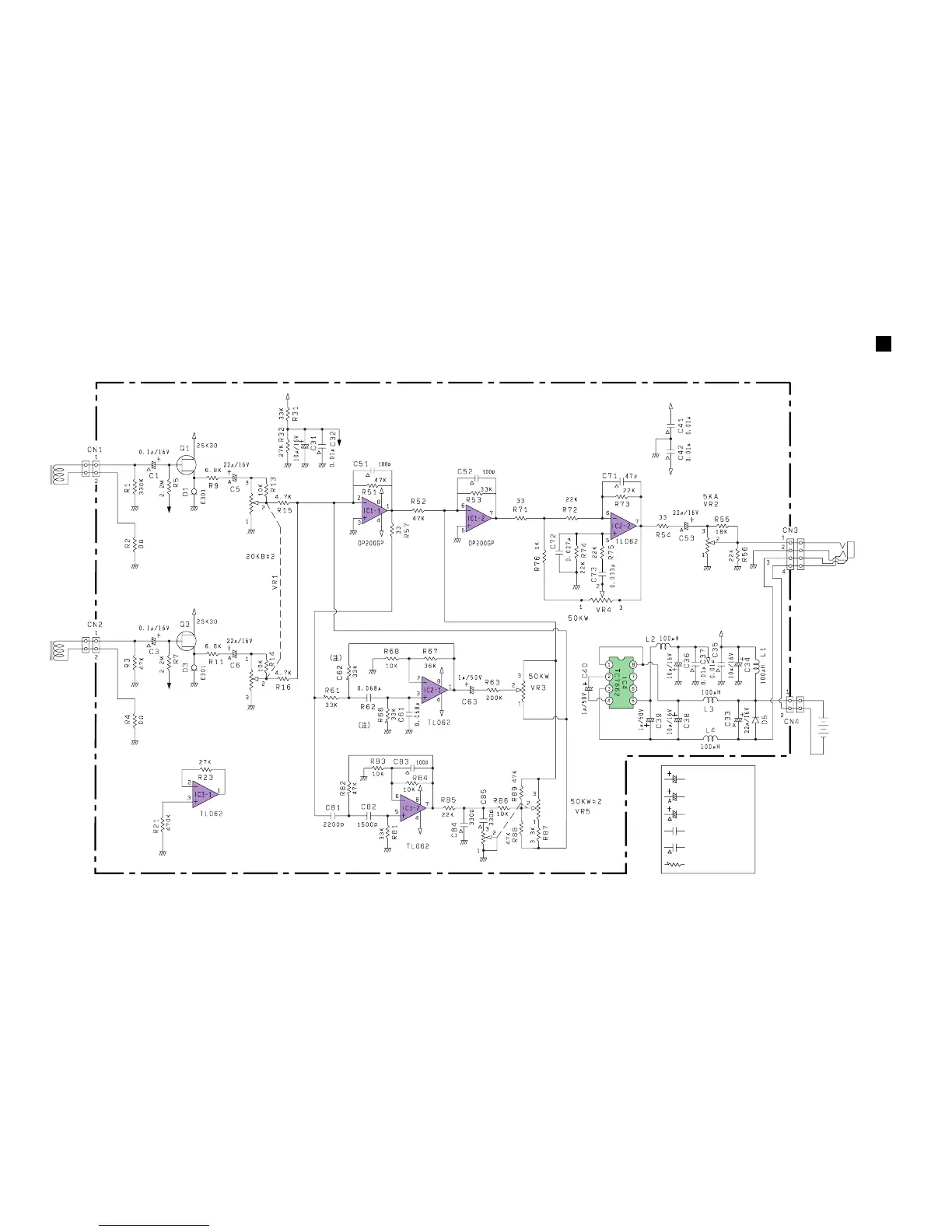

CIRCUIT DIAGRAM
Electrolytic Capacitor
Tantalum Capacitor
Mylar Capacitor
Ceramic Capacitor
Metal Film Resistor
Electrolytic Capacitor
(Audio)
BALANCER
VOLUME
MID
BASS
TREBLE
Note
Note
FRONT
PICKUP
REAR
PICKUP
BATTERY
9V
OUTPUT
JACK
OP AMP
OP AMP
OP AMP OP AMP
REGULATOR
BAJJ-09
Note: C62 uses a resistor and R62 uses a capacitor.
