Front wheel
EAU56491

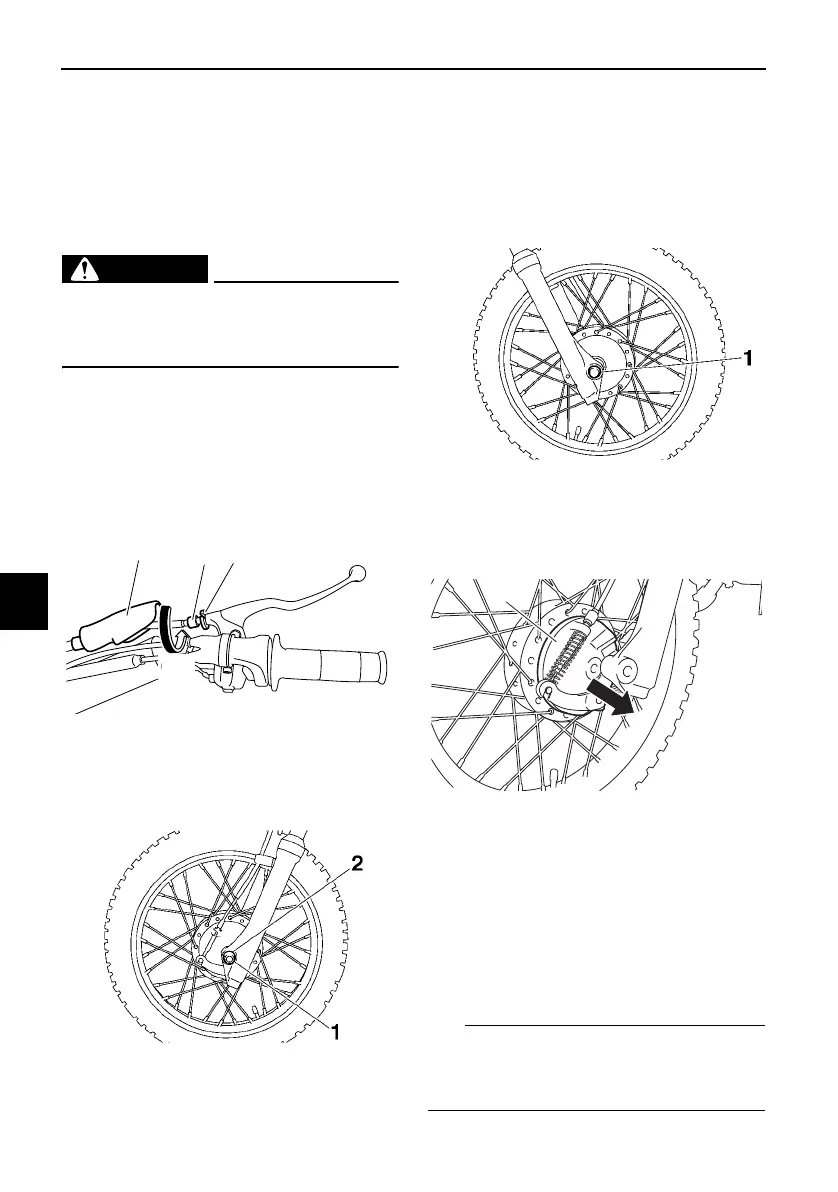

To remove the front wheel
EWA10822
To avoid injury, securely support the
vehicle so there is no danger of it
falling over.
1. Slide the rubber cover back at the
brake lever.
2. Loosen the locknut, and then turn
the brake lever free play adjusting
bolt fully in direction (a).
3. Loosen the axle nut.
4. Lift the front wheel off the ground
according to the procedure in the
previous section “Supporting the
motorcycle”.
5. Remove the axle nut and washer.
6. Pull the wheel axle out.
7. Remove the brake shoe assembly
from the wheel hub by pulling it
out.
8. Remove the wheel.
To install the front wheel
1. Install the brake shoe assembly
into the wheel hub.
2. Lift the wheel up between the fork
legs.
Make sure that the slot in the brake
shoe plate fits over the retainer on the
fork leg.
1. Rubber cover
2. Brake lever free play adjusting bolt
3. Locknut
1. Axle nut
2. Washer
1. Wheel axle
1. Brake shoe assembly
