Periodic maintenance and adjustment
7-31
7
3. Insert the wheel axle from the right
side, and then install the washer
and the axle nut.
4. Lower the front wheel so that it is
on the ground, and then put the
sidestand down.
5. Tighten the axle nut to the speci-
fied torque.
6. Adjust the brake lever free play.
(See page 7-18.)
7. While applying the front brake,
push down hard on the handlebar
several times to check for proper
fork operation.
EAU25081
Rear wheel
EAU56801
To remove the rear wheel
EWA10822
To avoid injury, securely support the
vehicle so there is no danger of it
falling over.
1. Disconnect the brake torque rod
from the brake shoe plate by re-
moving the cotter pin, the nut and
the bolt.
2. Remove the brake pedal free play
adjusting nut, and then discon-
nect the brake rod at the brake
camshaft lever.

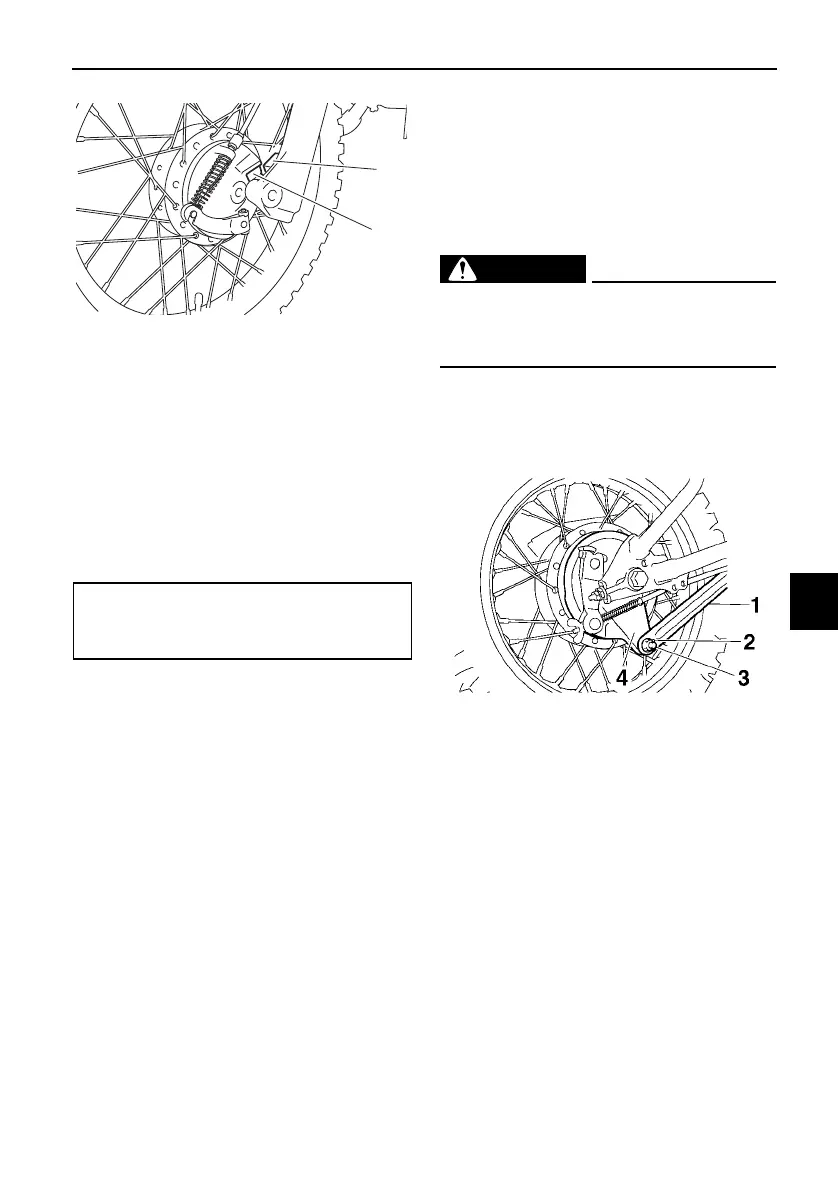

1. Slot
2. Retainer
Tightening torque:
Axle nut:
35 N·m (3.5 kgf·m, 26 lb·ft)
1. Brake torque rod
2. Cotter pin
3. Brake torque rod bolt and nut
4. Brake shoe plate
UB5186E0.book Page 31 Wednesday, April 22, 2020 9:11 AM
