4 - 46

ENG

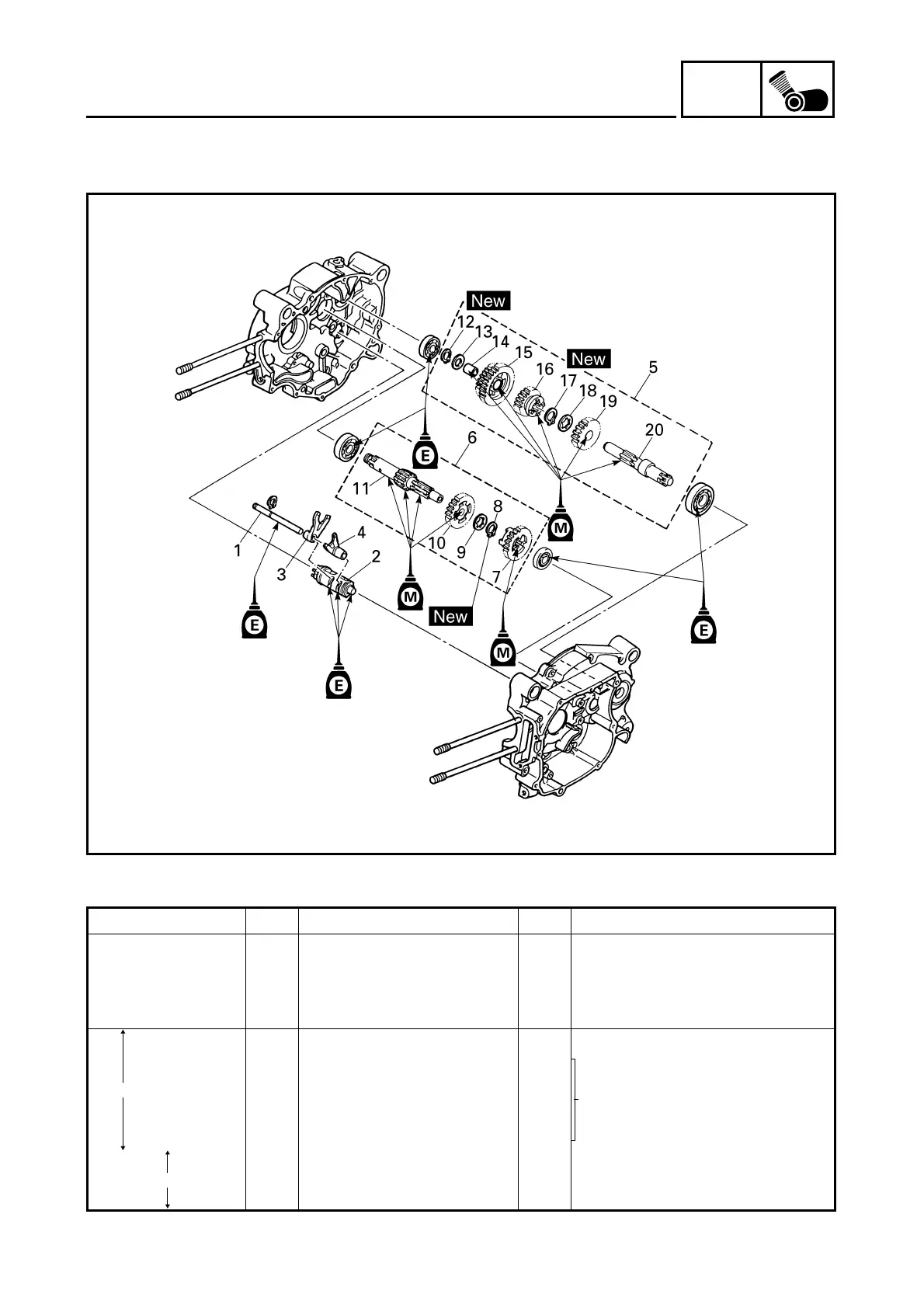

SHIFT FORK, SHIFT CAM AND TRANSMISSION

Extent of removal: 1 Shift fork, shift cam, main axle and drive axle removal

2 Main axle disassembly 3 Drive axle disassembly

Extent of removal Order Part name Q’ty Remarks

SHIFT FORK, SHIFT CAM

TRANSMISSION REMOVAL

Preparation for removal Engine assembly

Separate the crankcase. Refer to “CRANKCASE AND CRANK-

SHAFT” section.

1 Guide bar 1

2 Shift cam 1

Refer to “REMOVAL POINTS”.

3 Shift fork 2 “R” 1

4 Shift fork 1 “L” 1

5 Drive axle assembly 1

6 Main axle assembly 1

7 2nd pinion gear 1

8 Circlip 1

9 Washer 1
