Yamaha TT600RE 2004 - Cylinder Head

ENG
ENGINE ASSEMBLY AND SETTING
5-57

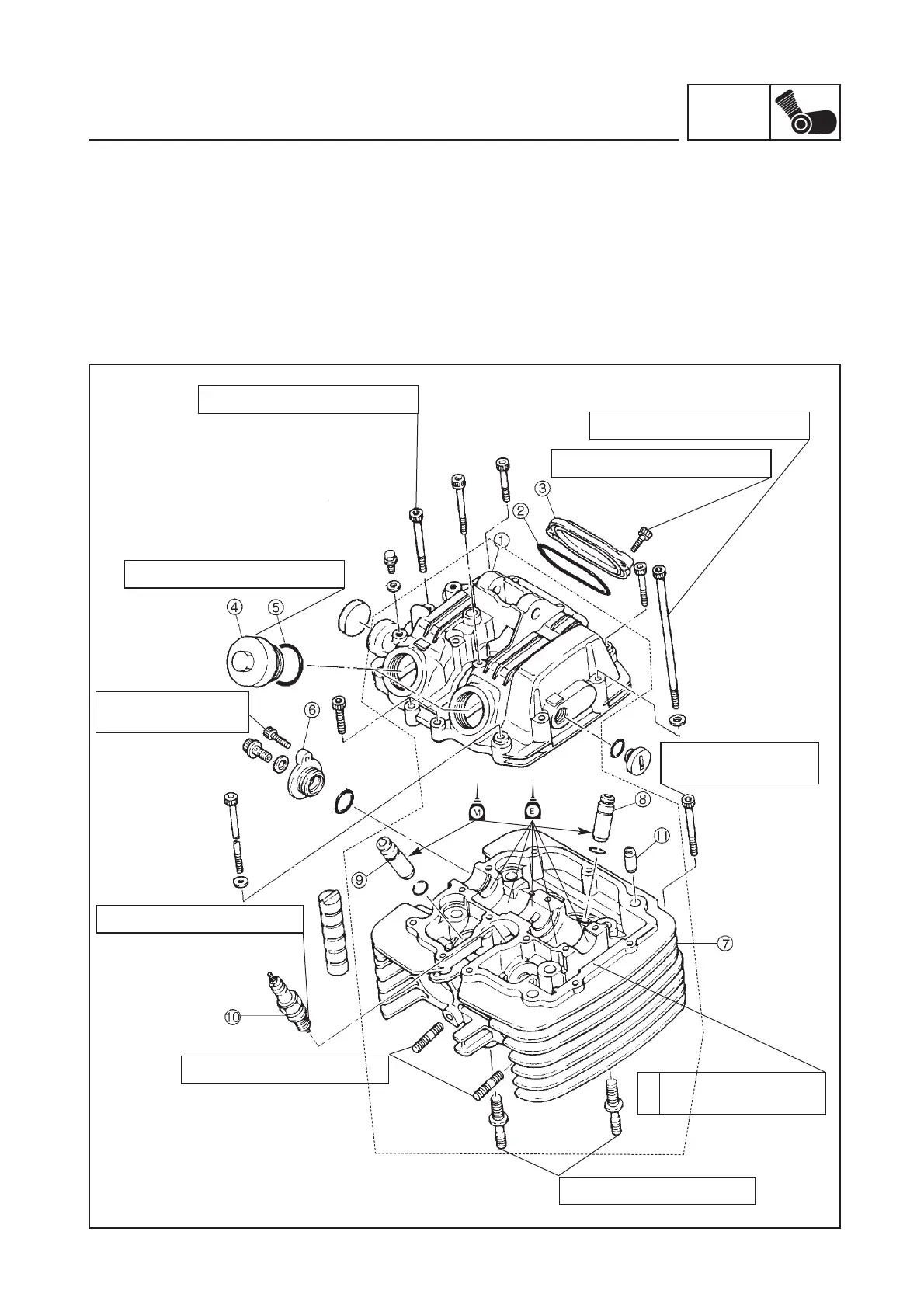

CYLINDER HEAD
(1) Cylinder head cover
(2) O-Ring
(3) Tappet cover
(intake)
(4) Tappet covers (exhaust)
(5) O-Ring
(6) Cap
(7) Cylinder head
(8) Valve guide
(intake valve)
(9) Valve guide
(exhaust valve)
(10) Spark plug
(11) Dowel pin
10 Nm (1.0 m
•
kg 7.2 ft
•
lb)
A
10 Nm (1.0 m
•
kg 7.2 ft
•
lb)
10 Nm (1.0 m
•
kg 7.2 ft
•
lb)
18 Nm (1.8 m
•
kg 13 ft
•
lb)
7 Nm (0.7 m
•
kg 5.1 ft
•
lb)
20 Nm (2.0 m
•
kg 14 ft
•
lb)
12 Nm (1.2 m
•
kg 8.7 ft
•
lb)
10 Nm
(1.0 m
•
kg 7.2 ft
•
lb)
10 Nm
(1.0 m
•
kg 7.2 ft
•
lb)
SEALANT (QUICK GASKET)
®
