EAU00694

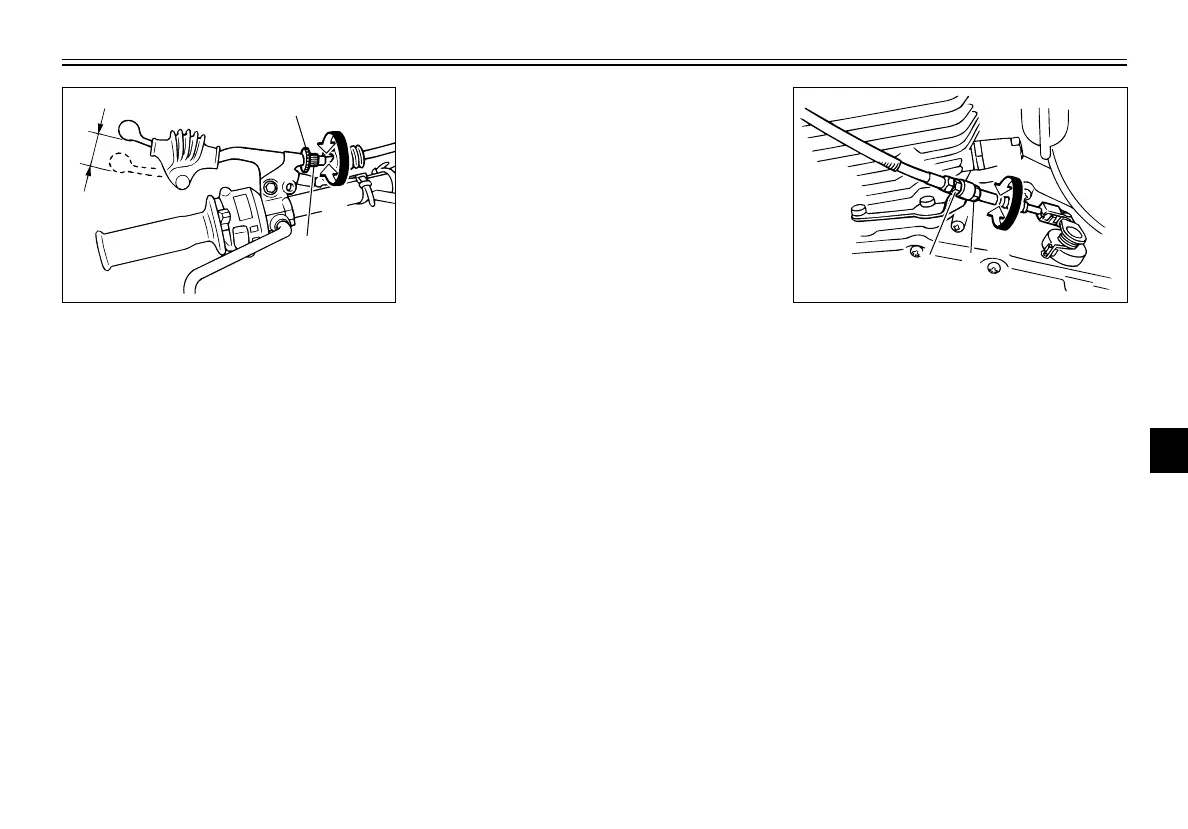

Adjusting the clutch lever
free play
The clutch lever free play should
measure 10–15 mm (0.40–0.60 in) as
shown. Periodically check the clutch
lever free play and, if necessary,
adjust it as follows.
1. Loosen the locknut at the clutch
lever.
2. To increase the clutch lever free
play, turn the adjusting bolt in
direction a. To decrease the
clutch lever free play, turn the
adjusting bolt in direction b.
1. Locknut (clutch lever)
2. Adjusting bolt
c. Free play
5. Loosen the locknut at the
crankcase.
6. To increase the clutch lever free
play, turn the adjusting nut in
direction a. To decrease the
clutch lever free play, turn the
adjusting nut in direction b.
7. Tighten the locknut at the clutch
lever and the crankcase.
1. Locknut (crankcase)
2. Adjusting nut
