4. Tilt the outboard motor down slowly until
the swivel bracket contacts the tilt sup-
port shaft, and then check that the tilt
support shaft is secured in place.

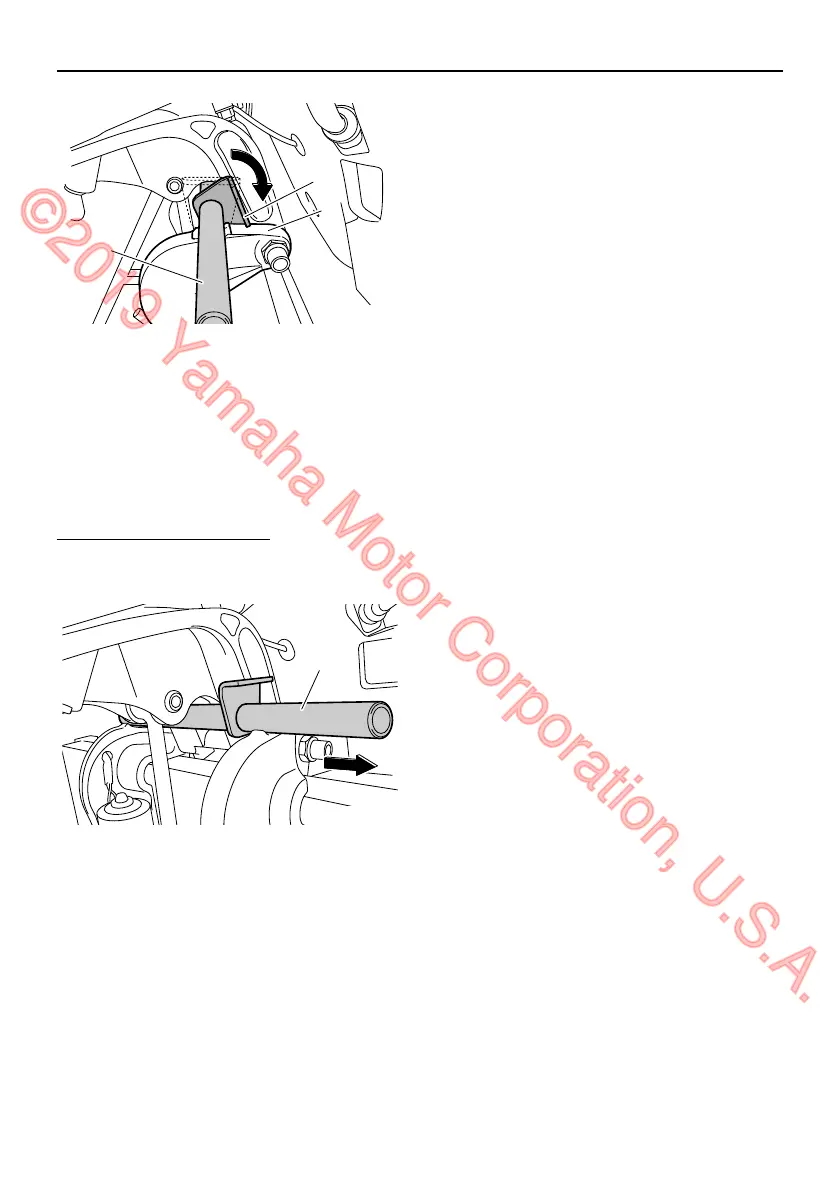

Removing tilt support shaft
1. Fully tilt the outboard motor up, and then
remove the tilt support shaft.
2. Tilt the outboard motor down.
1. Tilt support shaft
2. Plate
3. Clamp bracket
1. Tilt support shaft
1
2
3
ZMU06976
1
ZMU06925
