Checkpoints

Check each of the propeller blades for ero-
sion from cavitation or ventilation, and oth-
er damage.

Check the propeller shaft for damage.

Check the splines for wear and damage.

Check for fish line tangled around the pro-
peller shaft.
EMU42632
Removing propeller
1. Straighten the cotter pin and pull it out
using a pair of pliers.
2. Remove the propeller nut, washer, and
spacer. WARNING! Do not use your
hand to hold the propeller when loos-
ening the propeller nut.
[EWM01891]
3. Remove the propeller, spacer (if
equipped), and thrust washer.
EMU46220
Installing propeller
NOTICE
ECM00502
Make sure to use a new cotter pin and
bend the ends over securely. Otherwise,
the propeller could come off during oper-
ation and be lost.
1. Apply Yamalube Marine Grease to the
propeller shaft.
2. Install the thrust washer, spacer (if
equipped), and propeller on the propel-
ler shaft. NOTICE: Make sure to install
the thrust washer before installing
the propeller. Otherwise, the lower
case and propeller boss could be
damaged.
[ECM01882]
3. Install the spacer, washer, and propeller
nut. Tighten the propeller nut to the
specified torque.

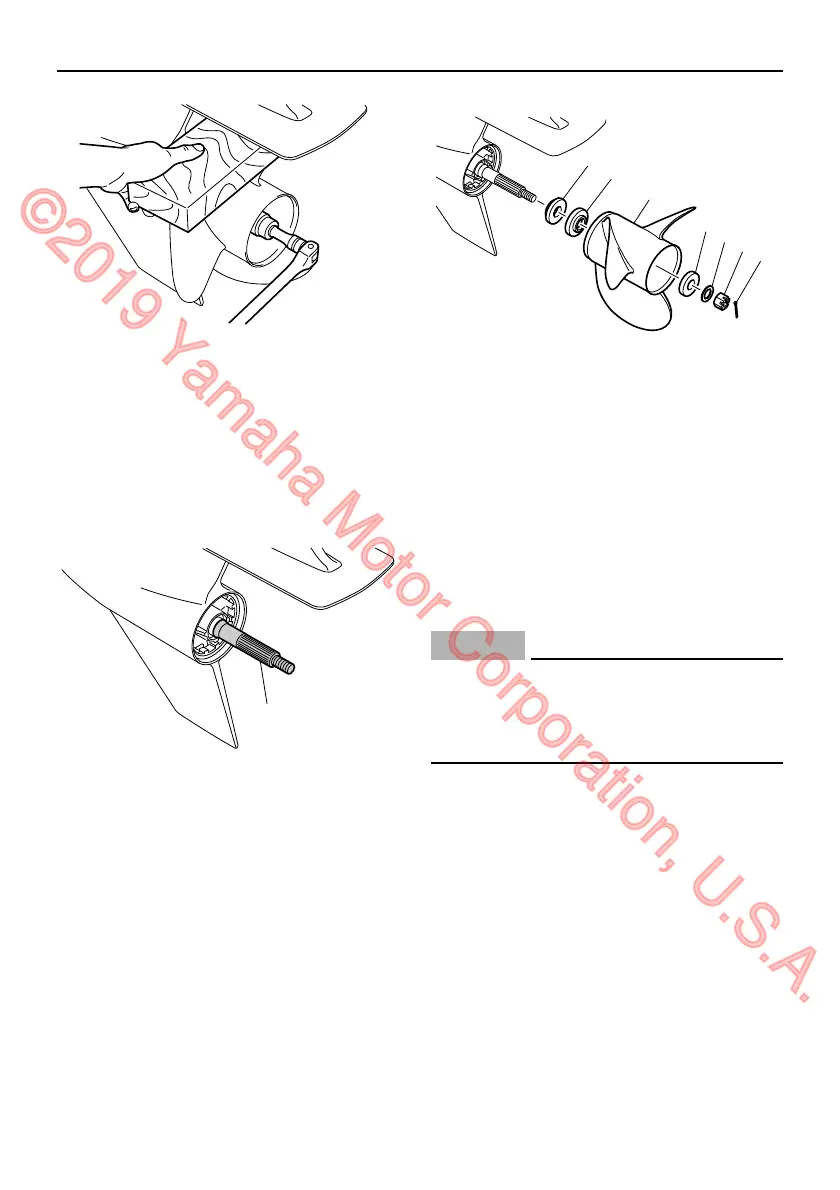

1. Propeller shaft
ZMU06953
1
ZMU06954
1. Cotter pin
2. Propeller nut
3. Washer
4. Spacer
5. Propeller
6. Spacer
7. Thrust washer
7
6
5
4
3
2
1
ZMU06955
