3-4
EAU00113
Fuel gauge
The fuel gauge indicates the amount
of fuel in the fuel tank. The needle
moves towards “E” (Empty) as the
fuel level decreases. When the nee-
dle reaches “E”, refuel as soon as
possible.
NOTE:
Do not allow the fuel tank to empty
itself completely.
EAU03889
Turn signal switch “4/6”
To signal a right-hand turn, push this
switch to “6”. To signal a left-hand
turn, push this switch to “4”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after
it has returned to the center position.
EAU00129
Horn switch “*”
Press this switch to sound the horn.
EAU03890
Engine stop switch “#/$”
Set this switch to “#” before starting
the engine. Set this switch to “$” to
stop the engine in case of an emer-
gency, such as when the scooter
overturns or when the throttle cable is
stuck.
INSTRUMENT AND CONTROL FUNCTIONS
3
FE
1

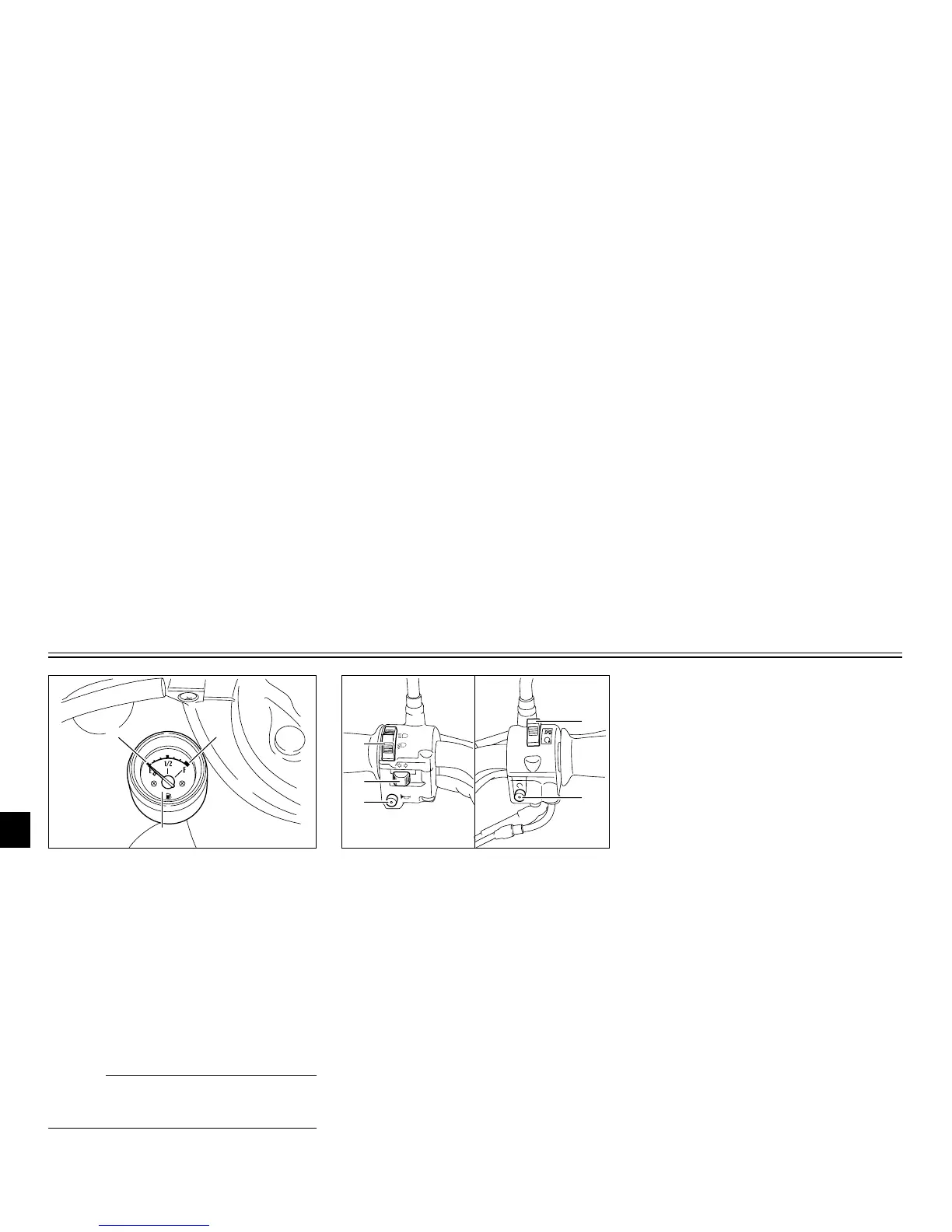

1. Fuel gauge
EAU00118
Handlebar switches
EAU03888
Dimmer switch “&/%”
Set this switch to “&” for the high
beam and to “%” for the low beam.
5
4
1
2
3
1. Dimmer switch “&/%”
2. Turn signal switch “4/6”
3. Horn switch “*”
4. Engine stop switch “$/#”
5. Start switch “,”
