Yamaha VINO YJ50RR User Manual

6-4
PERIODIC MAINTENANCE AND MINOR REPAIR
6
EAU01777

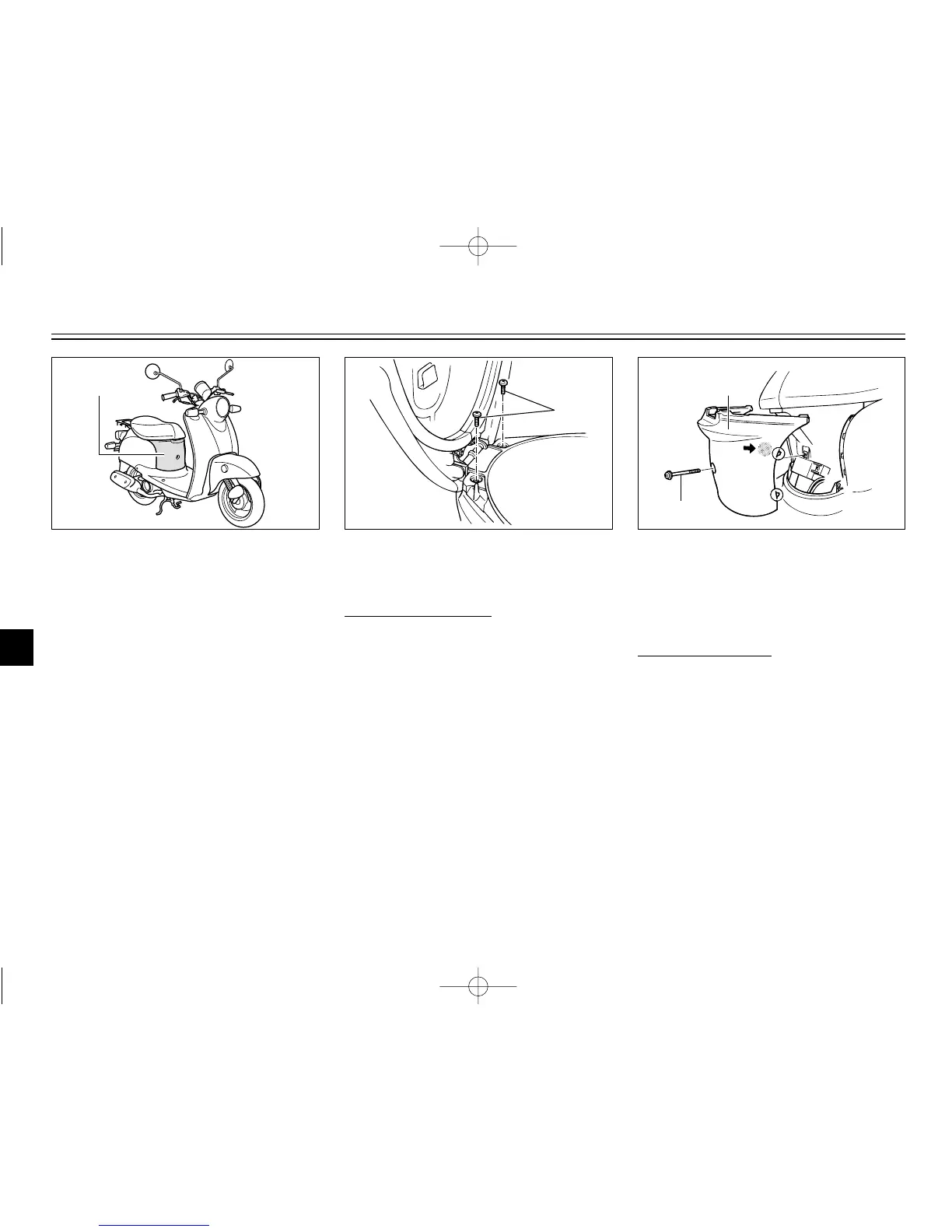

Removing and installing the
panel
The panel shown above needs to be
removed to perform some of the
maintenance jobs described in this
chapter. Refer to this section each
time the panel needs to be removed
and installed.
1
1. Panel A
2. Remove the screw, and then pull
the panel off as shown.
To install the panel
Place the panel in the original posi-
tion, and then install the screw.
2
1
1. Panel A
2. Screw
EAU04475
Panel A
To remove the panel
1. Open the seat. (See page 3-9 for
seat opening and closing proce-
dures.)
1
1. Screw (×2)
5LY-9-13 (US) 4/23/02 4:16 PM Page 40

Yamaha VINO YJ50RR Specifications

General

Ignition	CDI
Front Suspension	Telescopic fork
Rear Suspension	Unit swing
Front Brake	Drum
Rear Brake	Drum
Bore x Stroke	40.0mm x 39.2mm
Starting System	Electric/kick
Transmission	Automatic
Final Drive	Belt
Front Tire	3.00-10
Rear Tire	3.00-10
