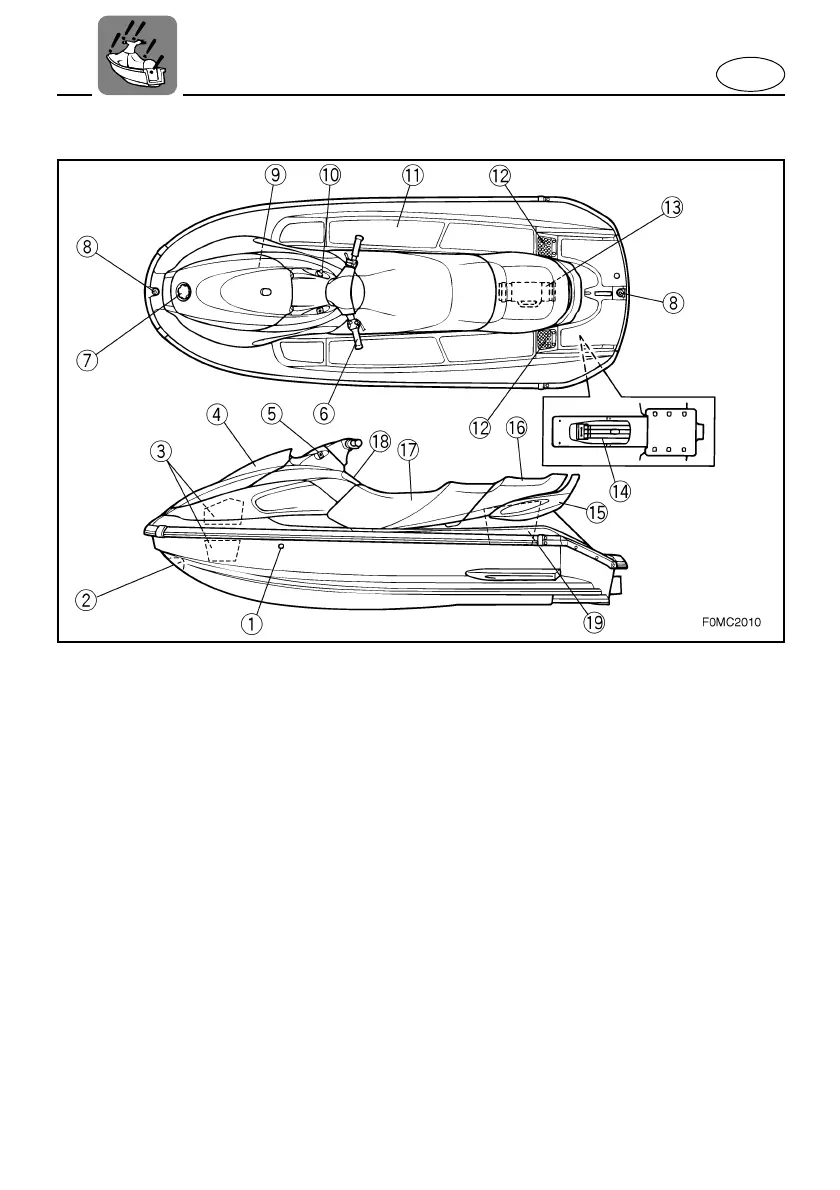

Location of main components
1
Cooling water pilot outlet
Use to verify cooling water flow.
2
Bow eye
Use to attach rope for transporting, mooring or
towing the watercraft in an emergency.
3
Front storage compartment
4
Hood
5
Fuel cock knob
Use to select either normal or reserve fuel flow
from the fuel tank to the carburetors, or to shut
off fuel flow.
6
Handlebars
Use to control direction.
7
Fuel tank filler cap
8
Rope hole
Use to attach a rope for mooring only.
9
Oil tank filler cap
0
Choke knob
Use to start a cold engine.
A
Footwell
Use to place feet for balance.
B
Footrest
To keep proper balance while facing to the rear
to watch the skier.
C
Fire extinguisher container
Use to store the fire extinguisher.
D
Intake grate
Prevents debris from getting into the jet pump.
E
Handgrip
Use for support when boarding the watercraft
or when seated facing rearward and acting as
a spotter for a water-skier.
F
Rear seat
G
Front seat
H
Glove compartment
I
Seat storage compartments
