Rear shock absorber adjustment
The spring preload can be adjusted to suit the
rider’s weight and riding conditions.
Adjust the spring preload as follows:
To increase the spring preload, turn the ad-
justing ring in direction
a
.
To decrease the spring preload, turn the ad-
justing ring in direction
b
.

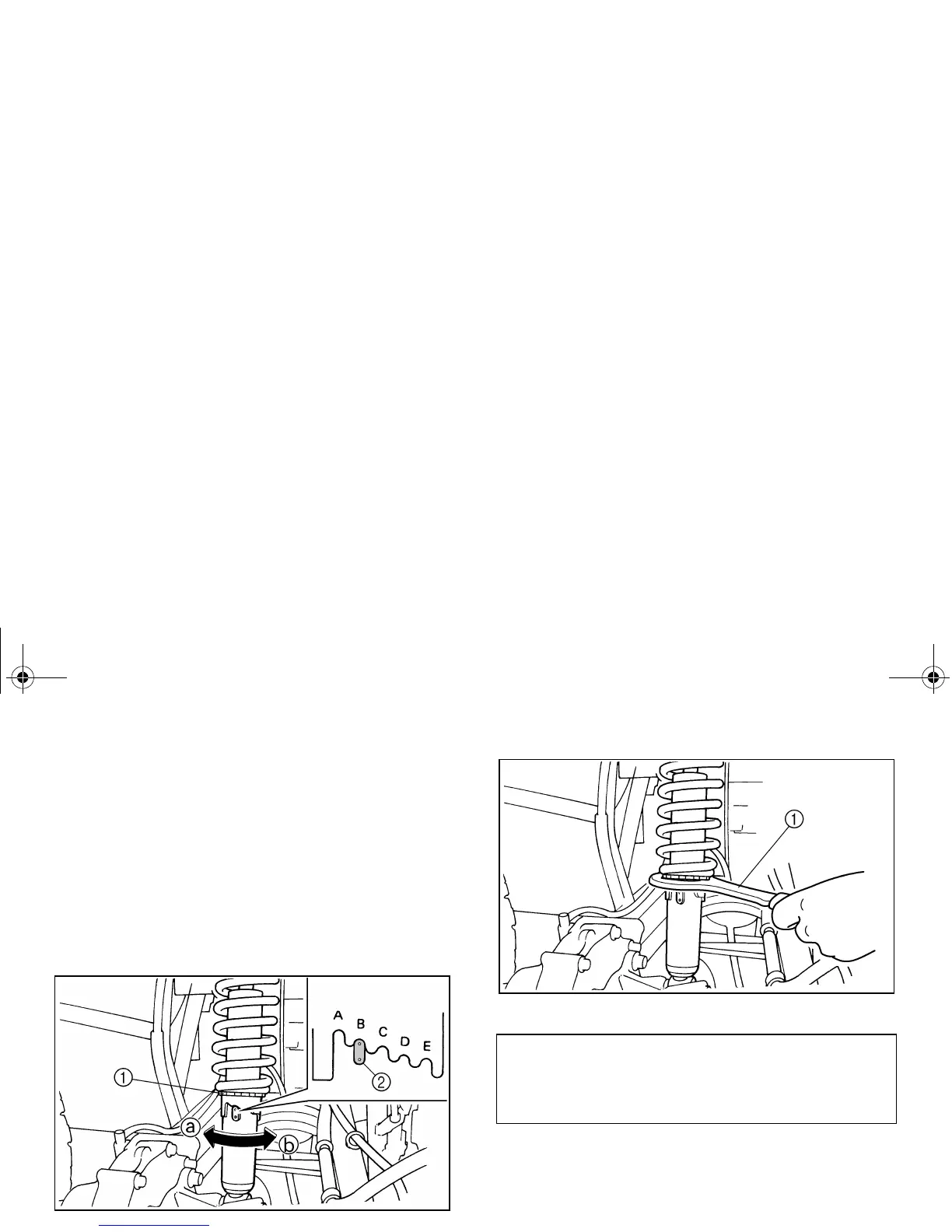

1. Spring preload adjusting ring 2. Position indicator
NOTE:
_
A special wrench can be obtained at a
Yamaha dealer to make this adjustment.
_
1. Special wrench
EBU00112
WARNING
Indicates a potential hazard that could
result in serious injury or death.
Standard position: B
A - Minimum (soft)
E - Maximum (hard)
