Yamaha Wolverine YXE700E - Throttle Body

THROTTLE BODY
7-8
EBS20056

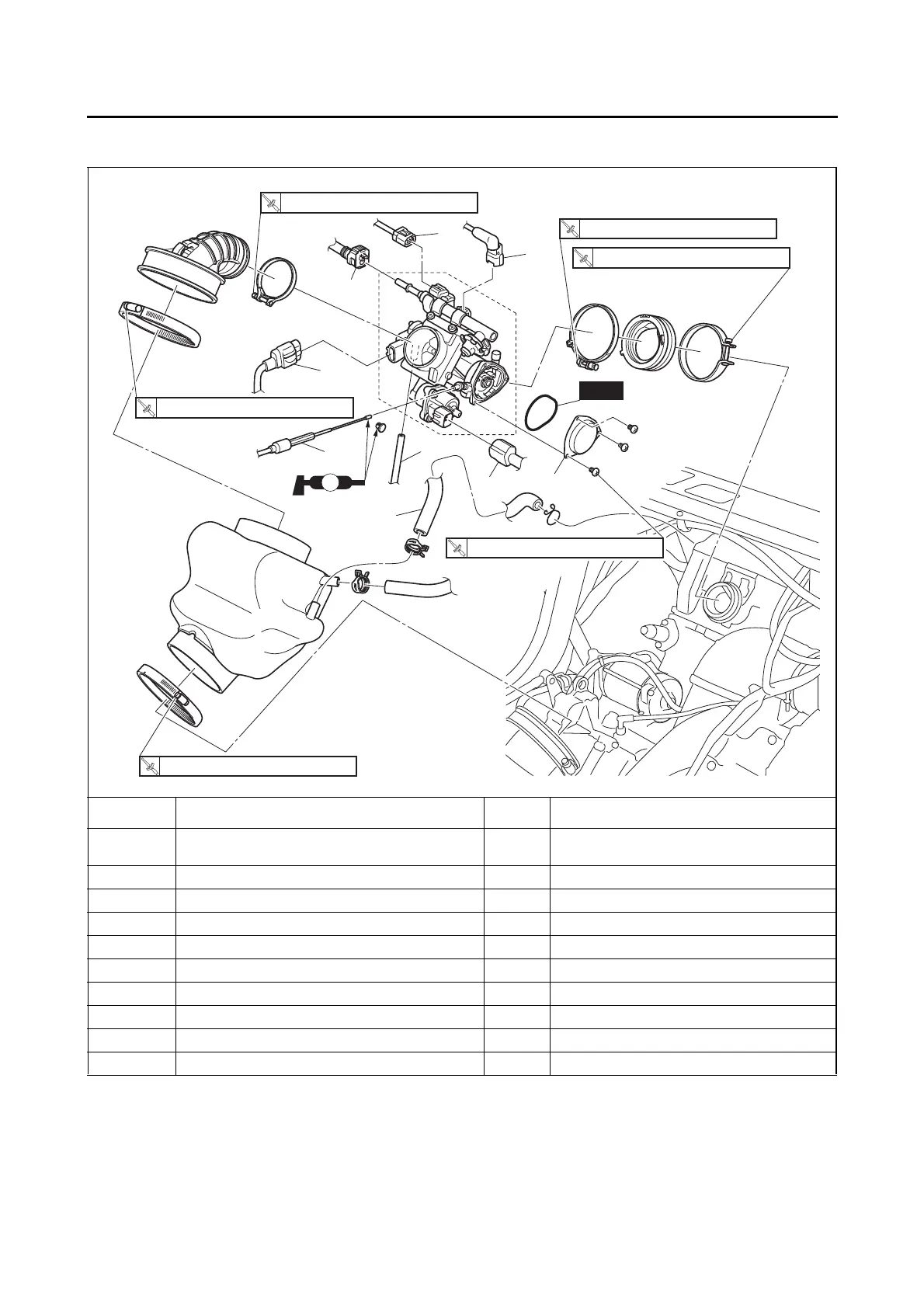

THROTTLE BODY
Removing the throttle body assembly
Order Job/Parts to remove
Q’ty
Remarks
Cargo bed
Refer to “GENERAL CHASSIS (9)” on page
4-19.
1 Intake air pressure sensor coupler 1 Disconnect.
2 Throttle position sensor coupler 1 Disconnect.
3 Throttle body breather hose 1
4 Fuel injector coupler 1 Disconnect.
5 ISC (Idle Speed Control) unit coupler 1 Disconnect.
6 Throttle cable housing cover 1
7 Throttle cable 1 Disconnect.
8 Fuel hose 1 Disconnect.
9 Cylinder head breather hose 1
New
LS
4
1
8
5
2
7
3
9
6
2.0 Nm (0.20 m
•
kgf, 1.4 ft
•
Ibf)
T
.R.
2.0 Nm (0.20 m
•
kgf, 1.4 ft
•
Ibf)
T
.R.
2.0 Nm (0.20 m
•
kgf, 1.4 ft
•
Ibf)
T
.R.
2.8 Nm (0.28 m
•
kgf, 2.0 ft
•
Ibf)
T
.R.
3.5 Nm (0.35 m
•
kgf, 2.5 ft
•
Ibf)
T
.R.
3.0 Nm (0.30 m
•
kgf, 2.2 ft
•
Ibf)
T
.R.
