Yamaha WR250F 2017 - CYLINDER AND PISTON

CYLINDER AND PISTON
6-32
EAS2GBB256
CYLINDER AND PISTON

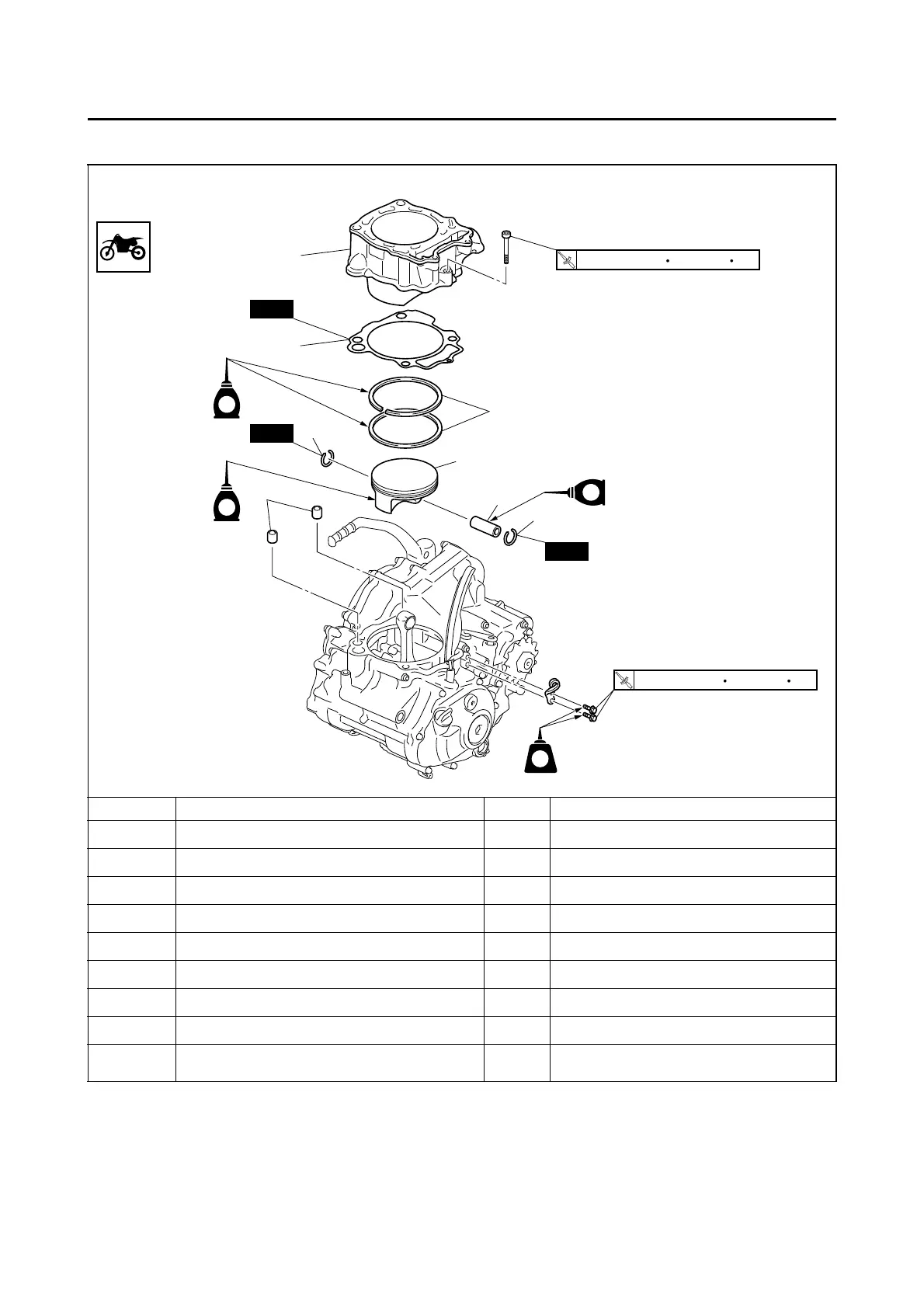

Removing the cylinder and piston
Order Part name Q’ty Remarks
Cylinder head
Refer to “CYLINDER HEAD” on page 6-20.
1
Cylinder body
1
2
Gaskets
1
3
Dowel pin
2
4
Piston pin clip
2
5
Piston pin
1
6
Piston
1
7
Piston ring set
1
For installation, reverse the removal proce-
dure.
1
2
3
4
4
5
6
7
10 Nm (1.0 m kgf, 7.2 ft Ibf)
T
.R.
10 Nm (1.0 m kgf, 7.2 ft Ibf)
T
.R.
E
E
New
New
New
LT
E
