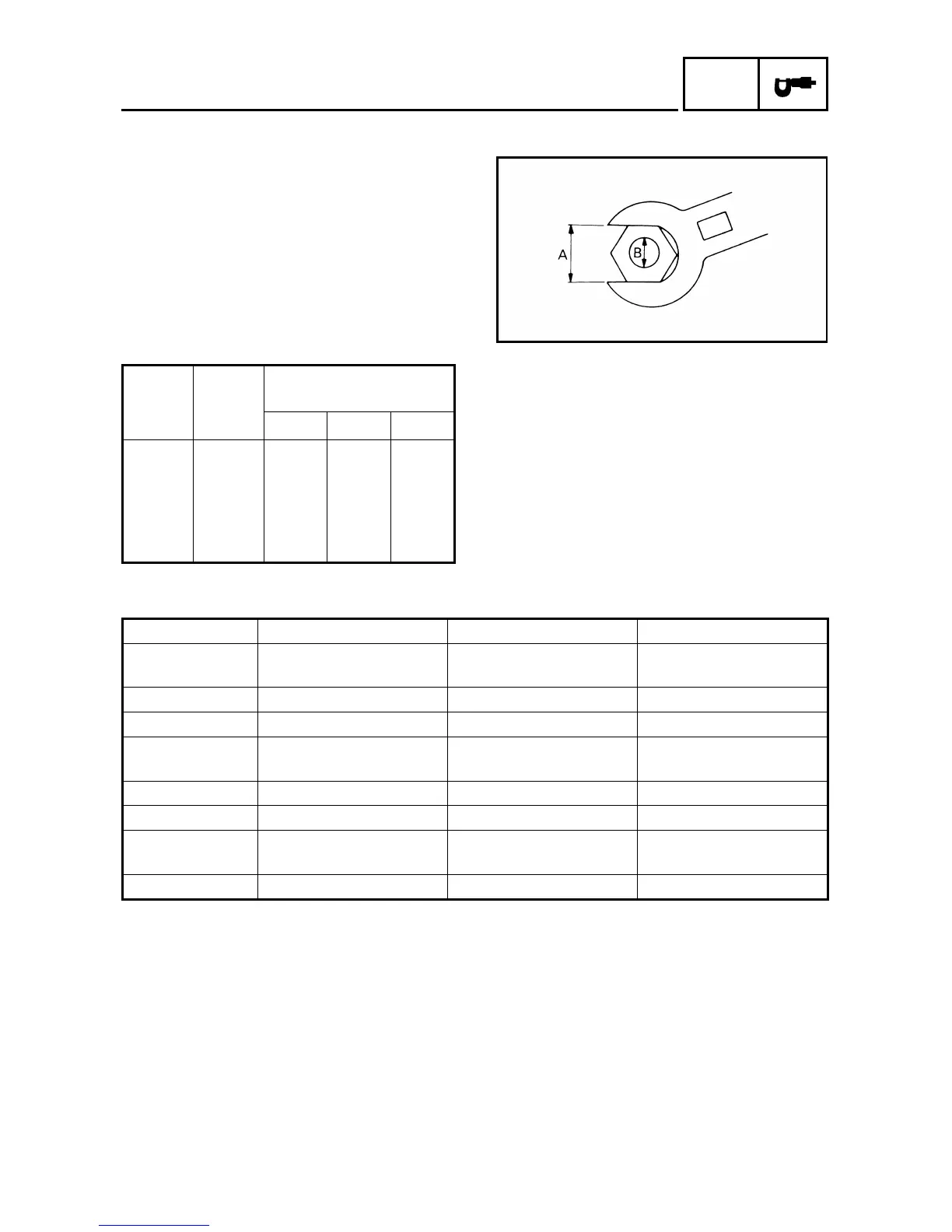

GENERAL TORQUE SPECIFICATIONS
This chart specifies torque for standard fasten-
ers with standard I.S.O. pitch threads. Torque
specifications for special components or
assemblies are included in the applicable sec-
tions of this book. To avoid warpage, tighten
multi-fastener assemblies in a crisscross fash-
ion, in progressive stages, until full torque is
reached. Unless otherwise specified, torque
specifications call for clean, dry threads. Com-
ponents should be at room temperature.
A: Distance between flats
B: Outside thread diameter
EC230000
DEFINITION OF UNITS
A
(Nut)
B
(Bolt)
TORQUE
SPECIFICATION
Nm m•kg ft•lb
10 mm
12 mm
14 mm
17 mm
19 mm
22 mm
6 mm
8 mm
10 mm
12 mm
14 mm
16 mm
6
15
30
55
85
130
0.6
1.5
3.0
5.5
8.5
13
4.3
11
22
40
61
94
Unit Read Definition Measure
mm
cm
millimeter
centimeter
10
-3
meter
10
-2
meter
Length
Length
kg kilogram 10
3
gram Weight
N Newton 1 kg × m/sec
2
Force
Nm
m • kg
Newton meter
Meter kilogram
N × m
m × kg
Torque
Torque
Pa Pascal N/m
2
Pressure
N/mm Newton per millimeter N/mm Spring rate
L
cm
3
Liter
Cubic centimeter
—
—
Volume or capacity
Volume or capacity
r/min Revolution per minute — Engine speed
GENERAL TORQUE SPECIFICATIONS/
DEFINITION OF UNITS

Yamaha WR450 FS 2004 Specifications

General

Year	2004
Manufacturer	Yamaha
Model	WR450 FS
Displacement	449 cc
Bore x Stroke	95.0 mm x 63.4 mm
Compression Ratio	12.5:1
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Tire	80/100-21
Rear Tire	110/100-18
Category	Enduro
Engine Type	Single cylinder, four-stroke
Fuel System	Keihin FCR39
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Single disc
Width	825 mm
Wheelbase	1, 485 mm
Fuel Capacity	8.0 liters
