Yamaha XC50V - Checking the Primary Sheave Weights; Checking the Slider; Checking the Secondary Sheave

ENG
5-41
EAS00321

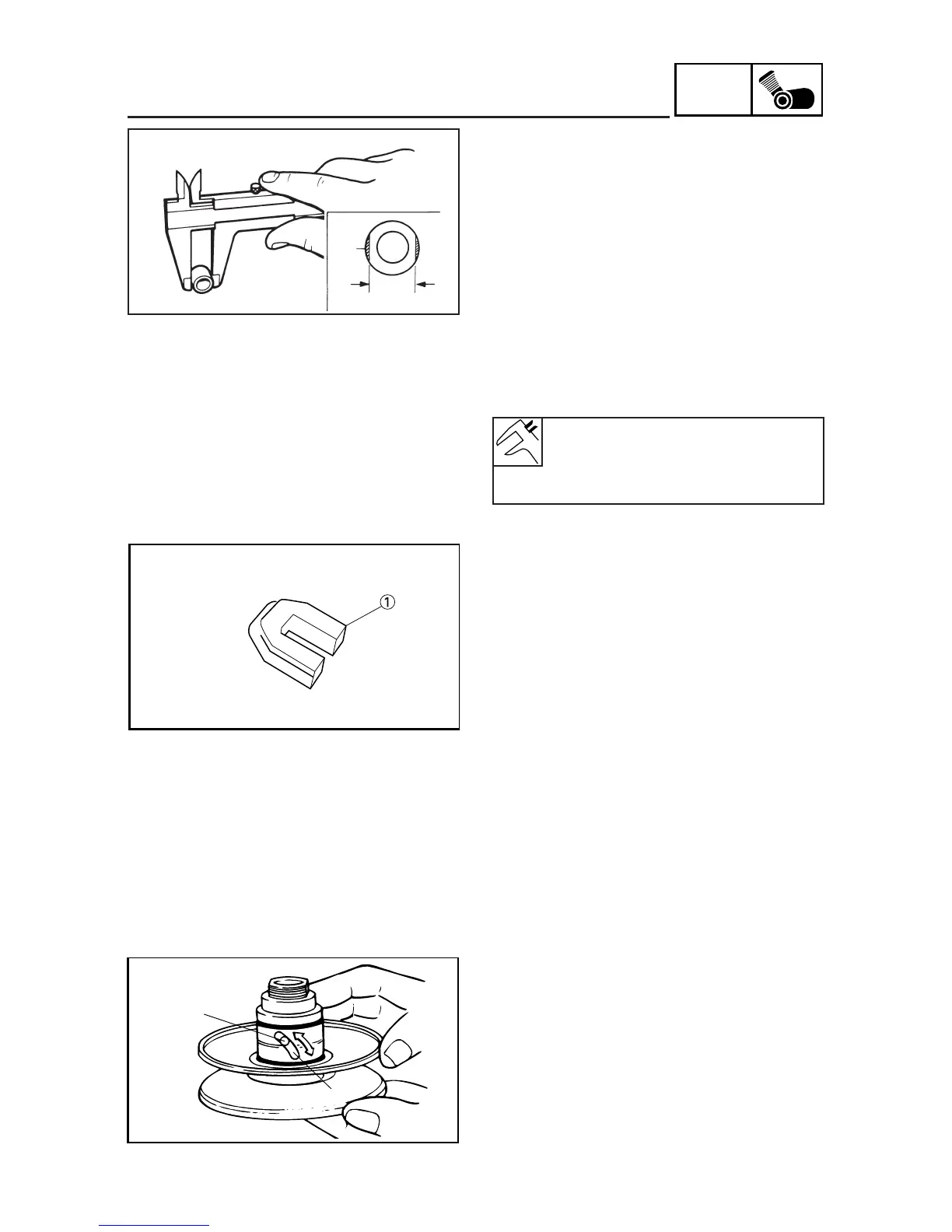

CHECKING THE PRIMARY SHEAVE WEIGHTS
The following procedure applies to all of the pri-
mary sheave weights.
1. Check:
8primary sheave weight
Cracks/damage/wear J Replace.
2. Measure:
8primary sheave weight outside diameter
a
Out of specification J Replace.
Primary sheave weight outside di-
ameter
15 mm (0.591 in)
<Limit>: 14.5 mm (0.571 in)
BELT DRIVE
CHECKING THE SLIDER
1. Check:
8slider 1
Damage/wearJ Replace
EAS00322
CHECKING THE SECONDARY SHEAVE
1. Check:
8secondary fixed sheave
8secondary sliding sheave
Cracks/damage/wear J Replace the sec-
ondary fixed and sliding sheaves as a
set.
1
2
a
2. Check:
8torque cam groove 1
Damage/wear J Replace the secondary
fixed and sliding sheaves as a set.
3. Check:
8guide pin 2
Damage/wear J Replace the secondary
fixed and sliding sheaves as a set.
