8-19
-+
ELEC
RemarksOrder Job/Part Q’ty
Removing the starter motor
Seat/Trunk
Front cover
Battery cover
Air filter assembly
Starter motor lead
Starter motor
Disassembling the starter motor
O-ring
Gasket
Stator assembly
O-ring
Armature coil
Brush
Plate washer
1
2
1
2
3
4
5
6
7
1
1
1
1
1
1
1
2
1
Remove the parts in the order listed.
Refer to “COVER AND PANEL”in chap-
ter 3.
Refer to“MANIFOLD, AIR FILTER AND
MUFFLER ASSEMBLY”in chapter 5.
Disconnect.
For installation, reverse the removal pro-
cedure.
Disassemble the parts in the order listed.
For assembly, reverse the disassembly
procedure.
ELECTRIC STARTING SYSTEM
EAS00767

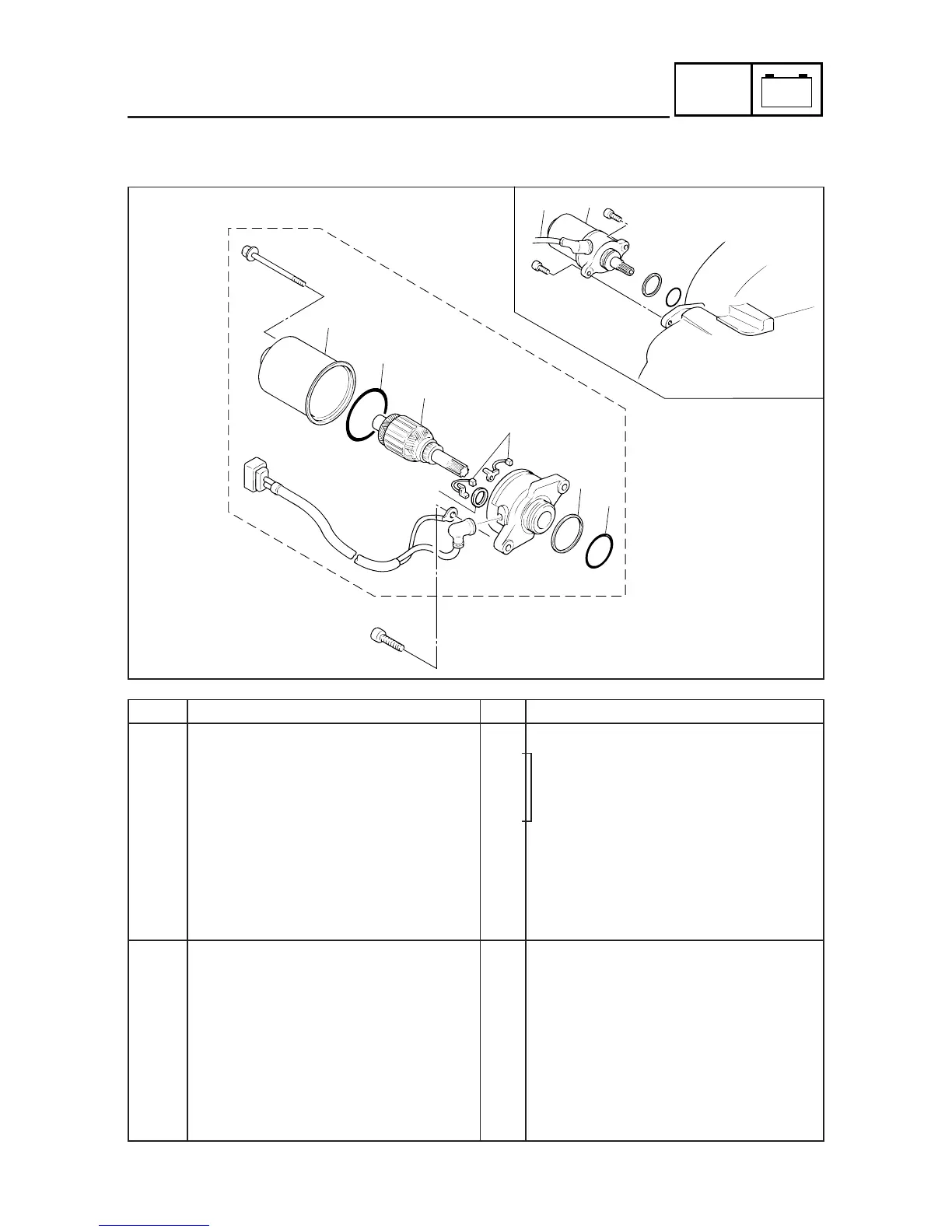

STARTER MOTOR
1
3
4
5
6
7
2
1
2
To Next Page
