Periodic maintenance and adjustment
7-30
1
2
3
4
5
6
7
8
9
10
11
12
3. Place the panel and rubber cover
in the original position.
4. Install the nuts and bolt.

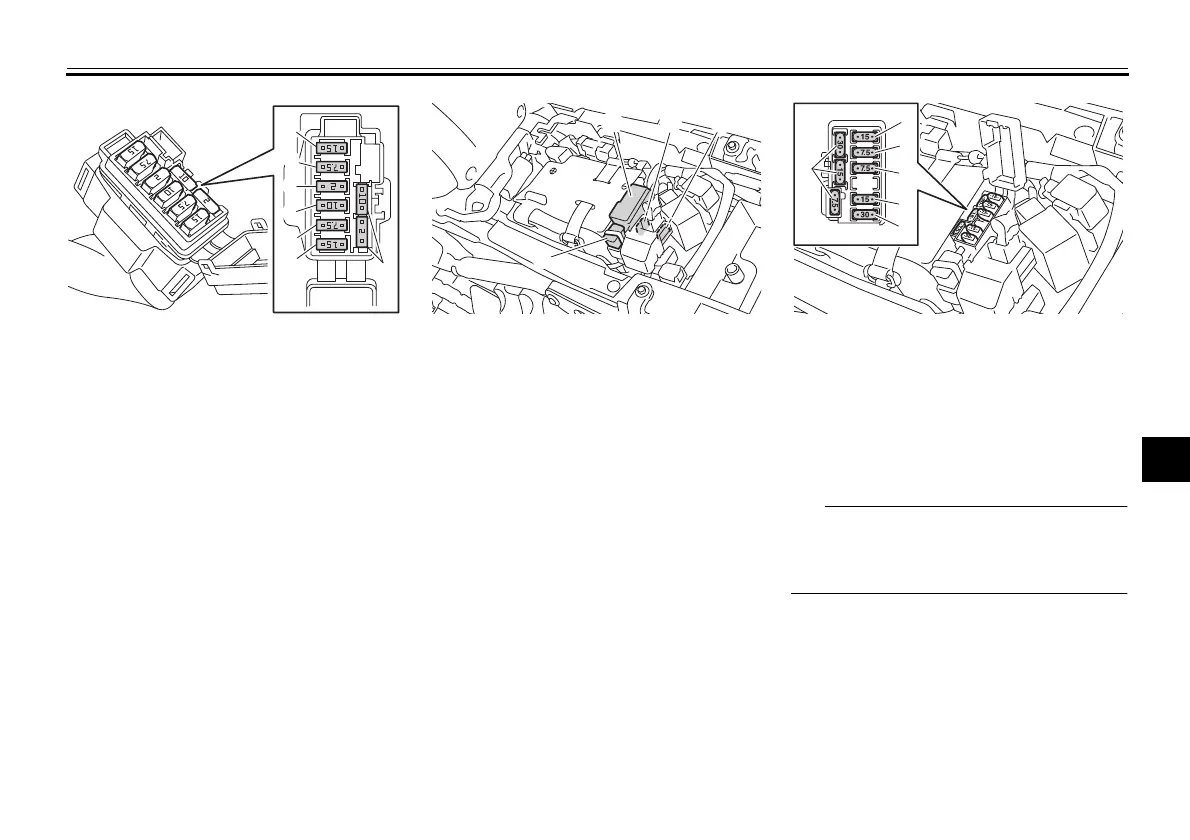

The main fuse, the fuel injection system
fuse, and fuse box 2 are located under
the seat. (See page 4-19.)
TIP
To access the fuel injection system
fuse, remove the starter relay cover by
pulling it upward.
1. Ignition fuse
2. ABS control unit fuse
3. Parking lighting fuse
4. Auxiliary fuse 1
5. Signaling system fuse
6. Headlight fuse
7. Spare fuse
7
1
2
3
4
5
6
1. Main fuse
2. Fuse box 2
3. Fuel injection system fuse
4. Fuel injection system spare fuse
2
1
3
4
1. Radiator fan motor fuse
2. Backup fuse
3. Electronic throttle valve fuse
4. ABS solenoid fuse
5. ABS motor fuse
6. Spare fuse
15
15
15
1
2
3
4
5
6
