Yamaha XT660R 2004 User Manual

4 - 34
CHAS
FRONT AND REAR BRAKES
5. Check:
• brake hoses
Cracks/damage/wear → Replace.
EAS00598

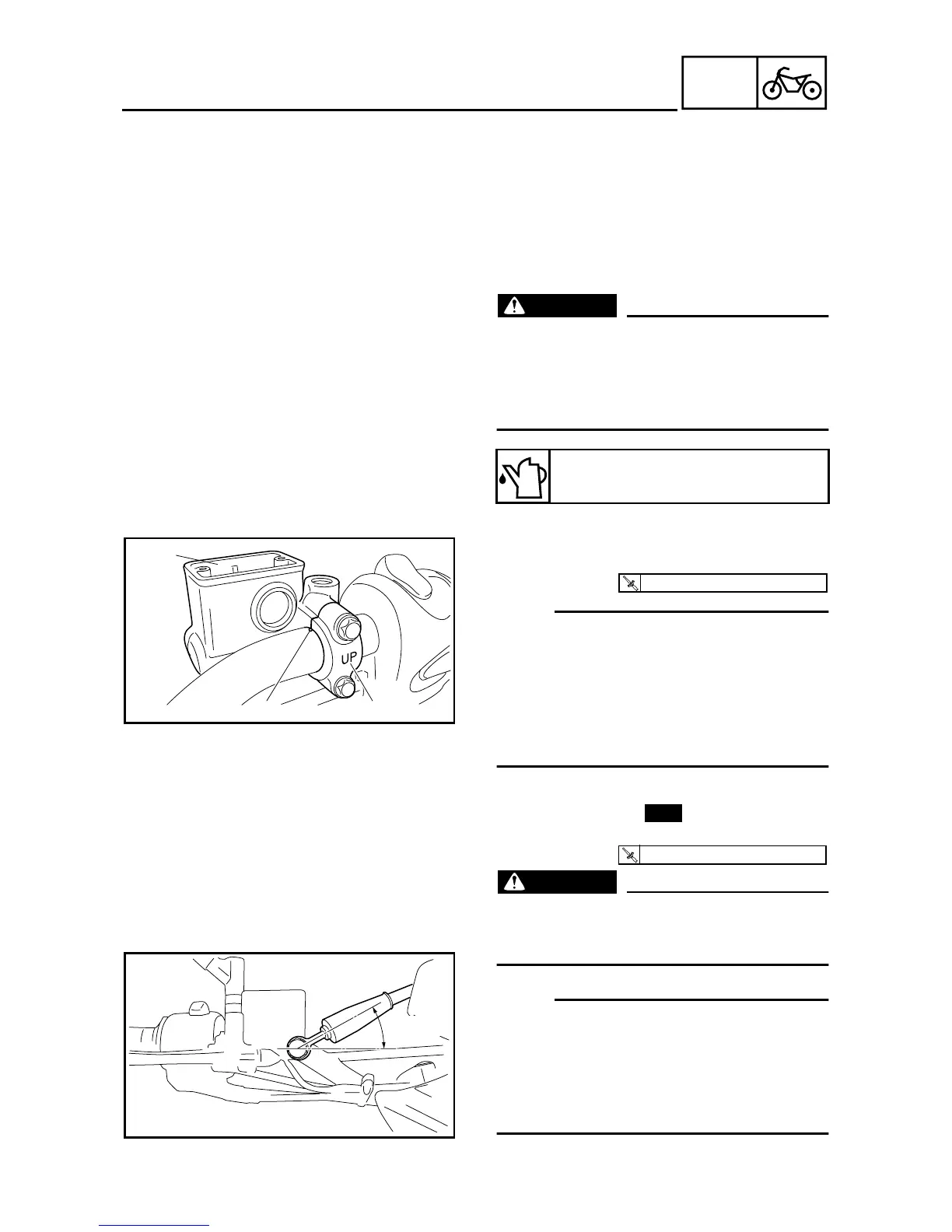

ASSEMBLING AND INSTALLING THE
FRONT BRAKE MASTER CYLINDER
WARNING
_
• Before installation, all internal brake com-
ponents should be cleaned and lubricated
with clean or new brake fluid.
• Never use solvents on internal brake
components.
1. Install:
• brake master cylinder 1
• brake master cylinder holder
NOTE:
_
• Install the brake master cylinder holder with
the “UP” mark a facing up.
• Align the end of the brake master cylinder
holder with the punch mark b on the handle-
bar.
• First, tighten the upper bolt, then the lower
bolt.
2. Install:
• copper washers
• brake hose
• union bolt
WARNING
_
Proper brake hose routing is essential to
insure safe motorcycle operation. Refer to
“CABLE ROUTING” in chapter 2.
NOTE:
_
• Install the brake hose within the range
shown.
• Turn the handlebar to the left and right to
make sure the brake hose does not touch
other parts (e.g., wire harness, cables,
leads). Correct if necessary.
Recommended brake fluid
DOT 4
1
b
a
T
R
.
.
7 Nm (0.7 m · kg, 5.1 ft · lb)
New
T
R
.
.
30 Nm (3.0 m · kg, 22 ft · lb)
40˚±10˚
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: info@motomatrix.co.uk

Yamaha XT660R 2004 Specifications

General

Displacement	660cc
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition	TCI
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brake	Single disc, 298 mm
Rear Brake	Single disc, 245 mm
Front Tire	90/90-21
Rear Tire	130/80-17
Seat Height	865 mm (34.1 inches)
Fuel Capacity	15 liters (3.96 gallons)
Engine type	Liquid cooled, 4-stroke, single cylinder, SOHC
Bore x Stroke	100.0 mm x 84.0 mm
Power	35 kW (48 hp) @ 6, 000 rpm
Torque	58 Nm @ 5, 500 rpm
Rear Suspension	Swingarm, (link suspension)
Dry Weight	165 kg
Length	2, 240 mm
Width	865 mm
Height	1, 230 mm
