Yamaha XT660R 2004 User Manual

7 - 23
FI

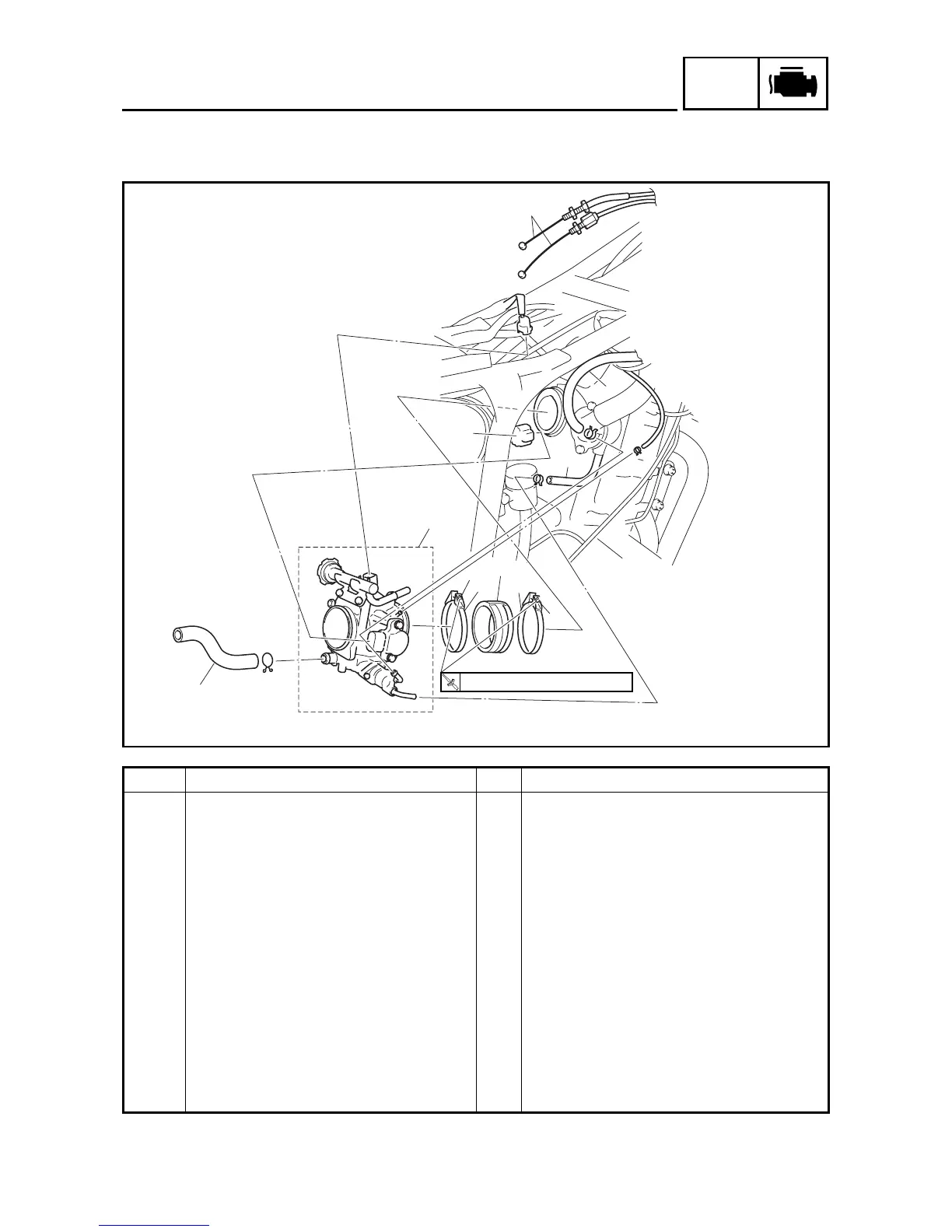

THROTTLE BODY ASSEMBLY
EAS00909
THROTTLE BODY ASSEMBLY
8
8
11
10
10
4
T
R
.
.
6 Nm (0.6 m
•
kg, 4.3 ft
•
Ib)
3
1
2
6
5
7
9
Order Job/Part Q’ty Remarks
Removing the throttle body assem-
bly
Remove the parts in the order listed.
Seat Refer to “COWLING AND COVER” in
chapter 3.
Fuel tank Refer to “FUEL TANK” in chapter 3.
Air filter case Refer to “AIR FILTER CASE” in chapter 3.
Coolant Drain.
Refer to “CHANGING THE COOLANT” in
chapter 3.
1 Fuel injector coupler 1 Disconnect.
2 Throttle position sensor coupler 1 Disconnect.
3 Throttle cable 2 Disconnect.
Refer to “INSTALLING THE THROTTLE
BODY ASSEMBLY”.
4 Vacuum hose 1 Disconnect.
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: info@motomatrix.co.uk

Yamaha XT660R 2004 Specifications

General

Displacement	660cc
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition	TCI
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brake	Single disc, 298 mm
Rear Brake	Single disc, 245 mm
Front Tire	90/90-21
Rear Tire	130/80-17
Seat Height	865 mm (34.1 inches)
Fuel Capacity	15 liters (3.96 gallons)
Engine type	Liquid cooled, 4-stroke, single cylinder, SOHC
Bore x Stroke	100.0 mm x 84.0 mm
Power	35 kW (48 hp) @ 6, 000 rpm
Torque	58 Nm @ 5, 500 rpm
Rear Suspension	Swingarm, (link suspension)
Dry Weight	165 kg
Length	2, 240 mm
Width	865 mm
Height	1, 230 mm
