Yamaha XT660R Service Manual

5 - 67
ENG

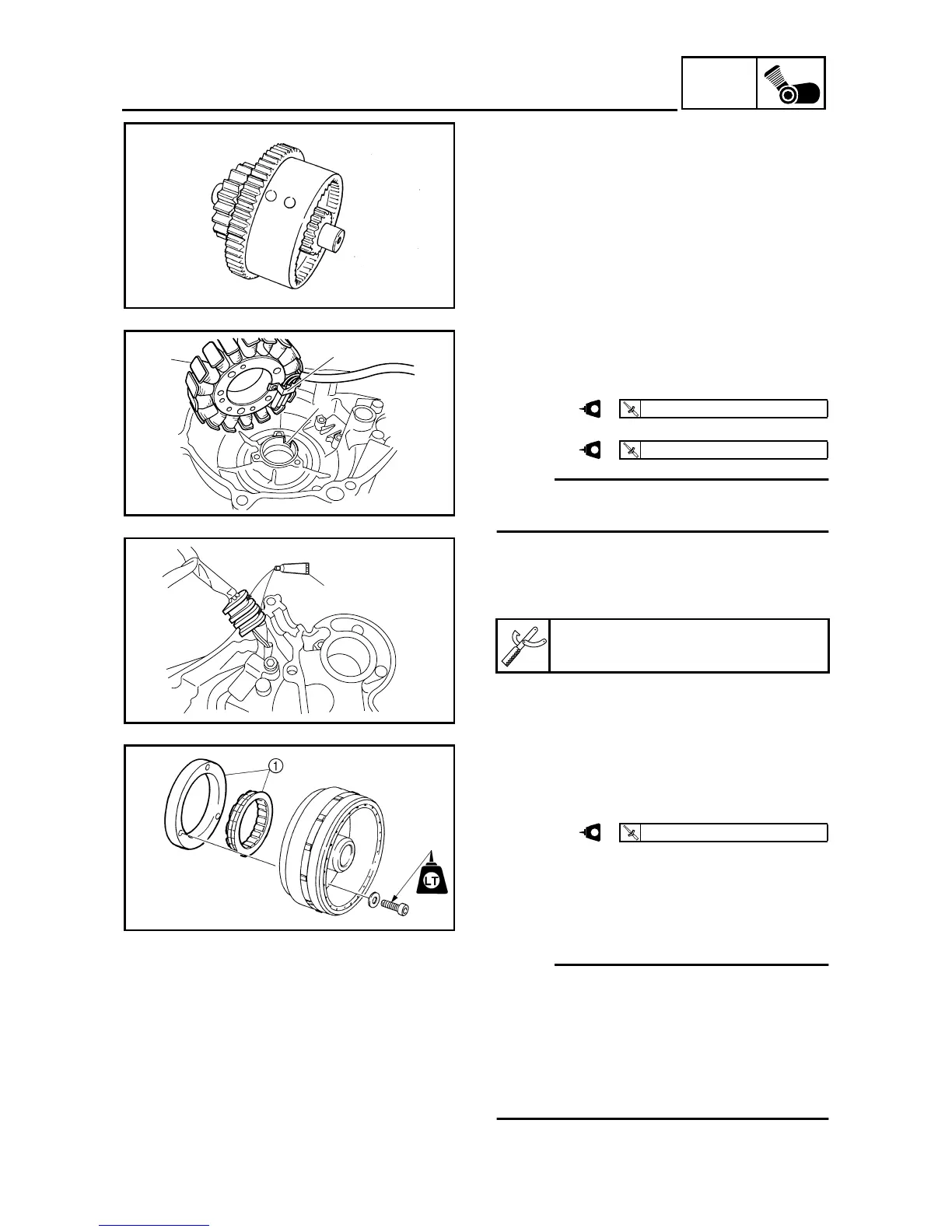

STARTER CLUTCH AND A.C. MAGNETO
CHECKING THE TORQUE LIMITER
1. Check:
• torque limiter
Damage/wear → Replace.
EAS00354
INSTALLING THE A.C. MAGNETO ROTOR
1. Install:
• stator coil 1
• crankshaft position sensor
NOTE:
_
Align the projection a on the stator coil with
the slot b in the A.C. magneto cover.
2. Apply:
• Yamaha bond No. 1215 1
(into the slits)
Yamaha bond No. 1215
90890-85505
1
a
b
T
R
.
.
10 Nm (1.0 m · kg, 7.2 ft · lb)
LT
T
R
.
.
7 Nm (0.7 m · kg, 5.1 ft · lb)
LT
1
3. Install:
• starter clutch 1
(to A.C. magneto rotor)
• starter clutch bolts
4. Install:
• woodruff key
• A.C. magneto rotor
• washer
• A.C. magneto rotor nut
NOTE:
_
• Clean the tapered portion of the crankshaft
and the A.C. magneto rotor hub.
• When installing the A.C. magneto rotor,
make sure the woodruff key is properly
seated in the keyway of the crankshaft.
• Lubricate crankshaft end threads with engine
oil.
T
R
.
.
30 Nm (3.0 m · kg, 22 ft · lb)
LT
