3. Unhook the headlight bulb holder,
and then remove the burnt-out
bulb.
4. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.
5. Install the bulb cover, and then
connect the coupler.
TIP
When installing the headlight bulb cov-
er, make sure the “TOP” mark faces up-
wards.
6. Install the headlight unit by install-
ing the screws.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24181
Tail/brake light
This model is equipped with an LED-
type tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.

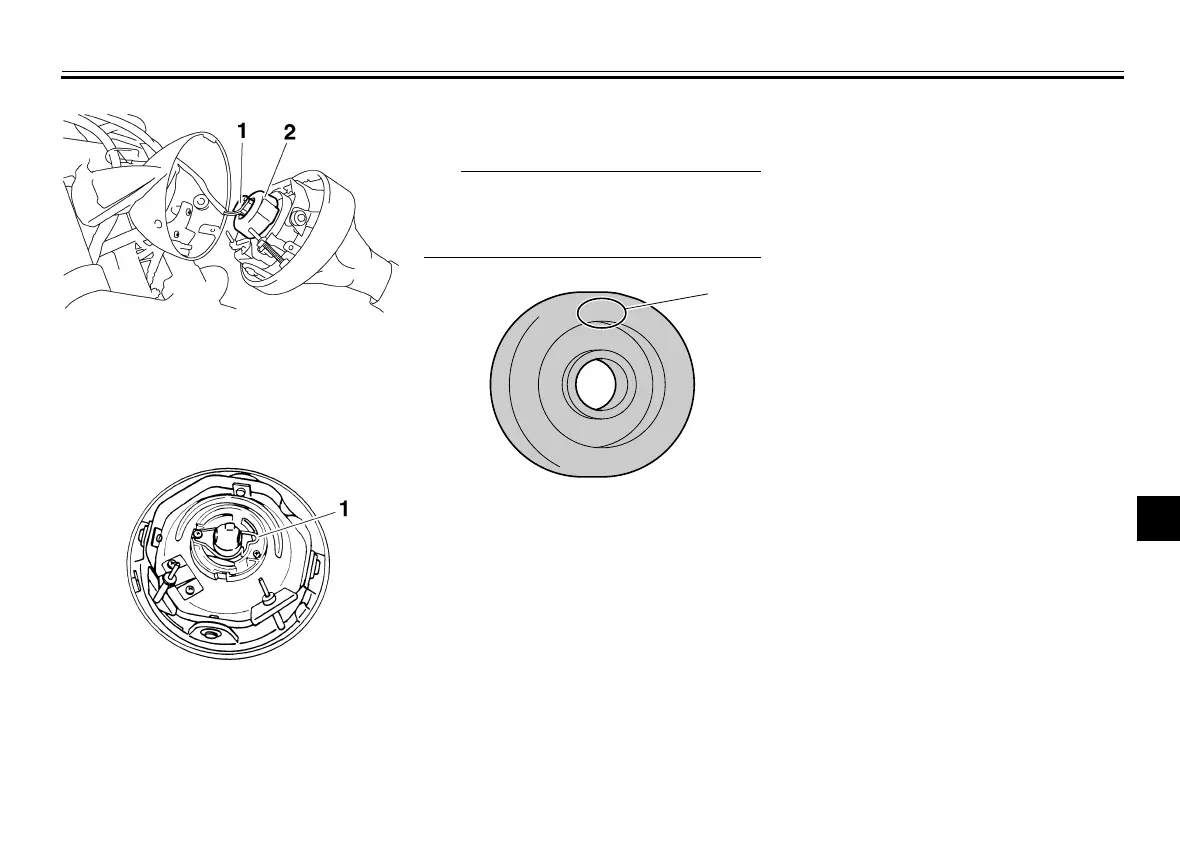

1. Headlight coupler
2. Headlight bulb cover
1. Headlight bulb holder
1. “TOP” mark
