– 23 –
CHAS

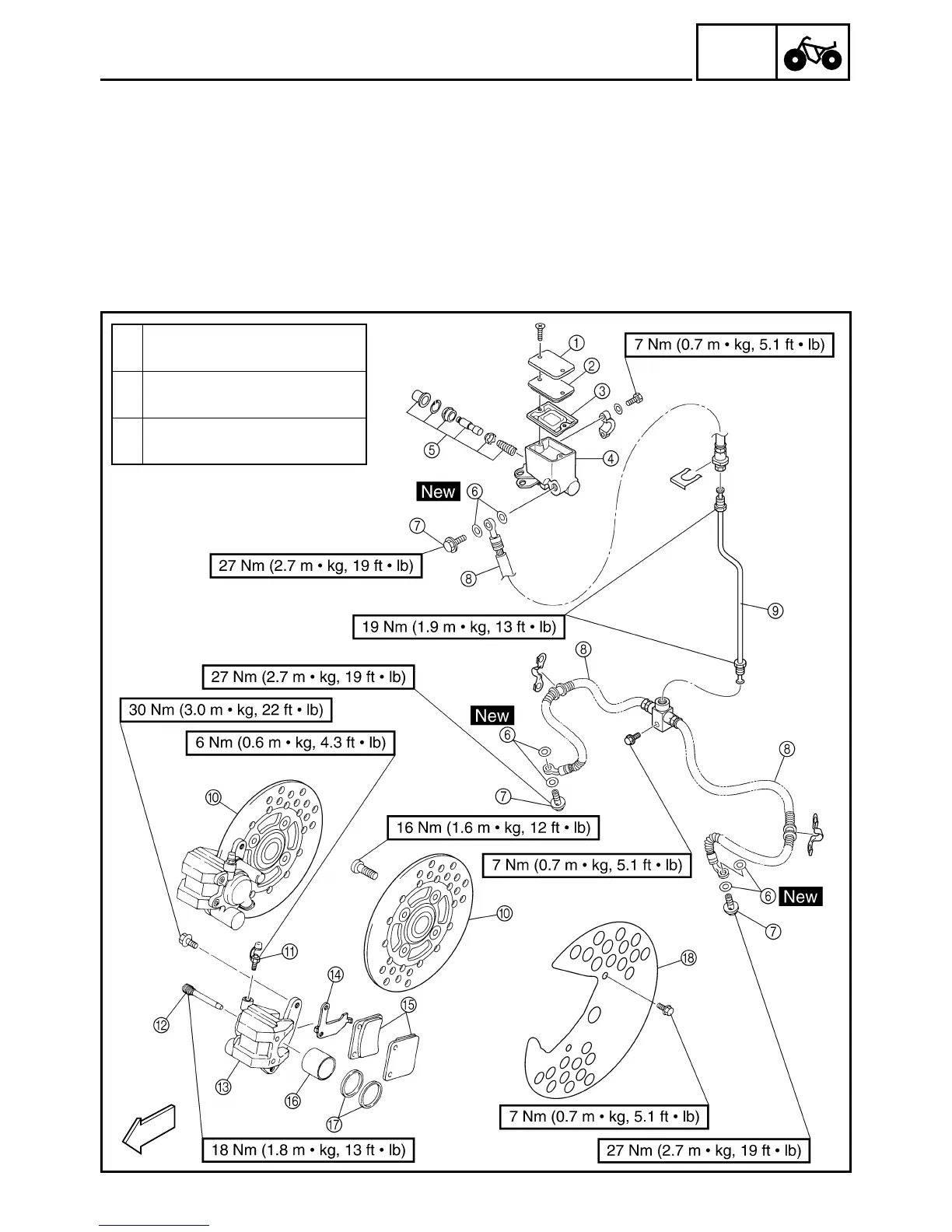

FRONT BRAKE
FRONT BRAKE
1
Brake master cylinder reservoir cap
2
Brake master cylinder reservoir diaphragm holder
3
Brake master cylinder reservoir diaphragm
4
Brake master cylinder
5
Brake master cylinder kit
6
Copper washer
7
Union bolt
8
Brake hose
9 Brake pipe
0 Brake disc
A Caliper bleed screw
B Retaining bolt
C Brake caliper
D Pad shim
E Brake pad
F Piston
G Piston seal
H Brake disc guard
FWD
A
BRAKE FLUID TYPE:
DOT 4
B
BRAKE PAD WEAR LIMIT:
1.0 mm (0.04 in)
C
BRAKE DISC WEAR LIMIT:
3.0 mm (0.12 in)
FWD
