73
4 Main switch
5 Backup Fuse
6 Battery
7 Main fuse
22 Lights switch
27 Seat switch
28 Box light
29 Head light fuse
39 Dimmer switch
40 Pass switch
42 License plate light
45 Tail/Brake light
46 Head light (Lo)
47 Head light (HI)
48 Auxiliary light
50 High beam indicator light
51 Meter lights

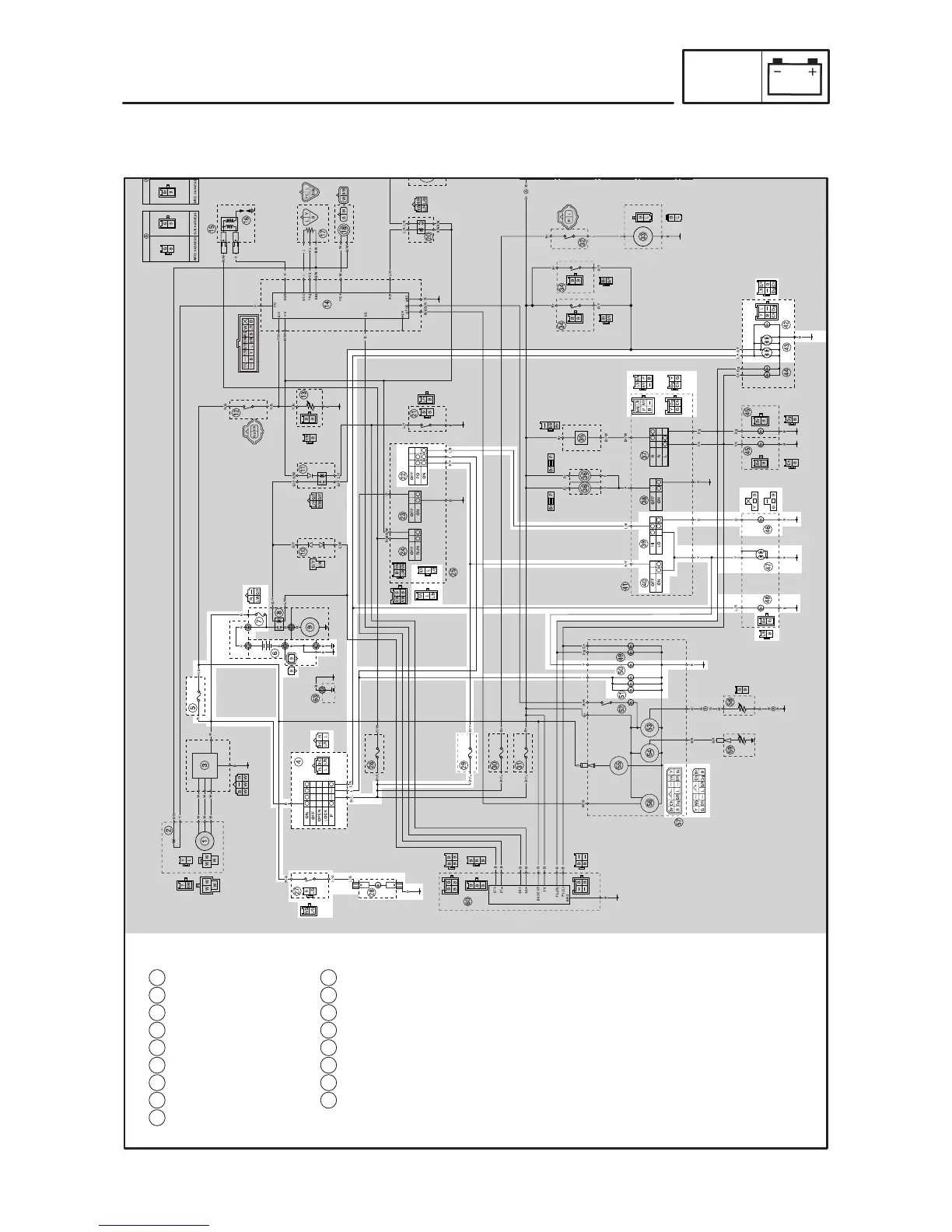

LIGHTING SYSTEM
ELEC
EB804000
LIGHTING SYSTEM
CIRCUIT DIAGRAM
