89
4 Main switch
6 Battery
7 Main fuse
14 Ignitor unit
19 Fuel pump
20 Fuel pump relay
24 Engine stop switch
26 Ignition fuse
EB808000

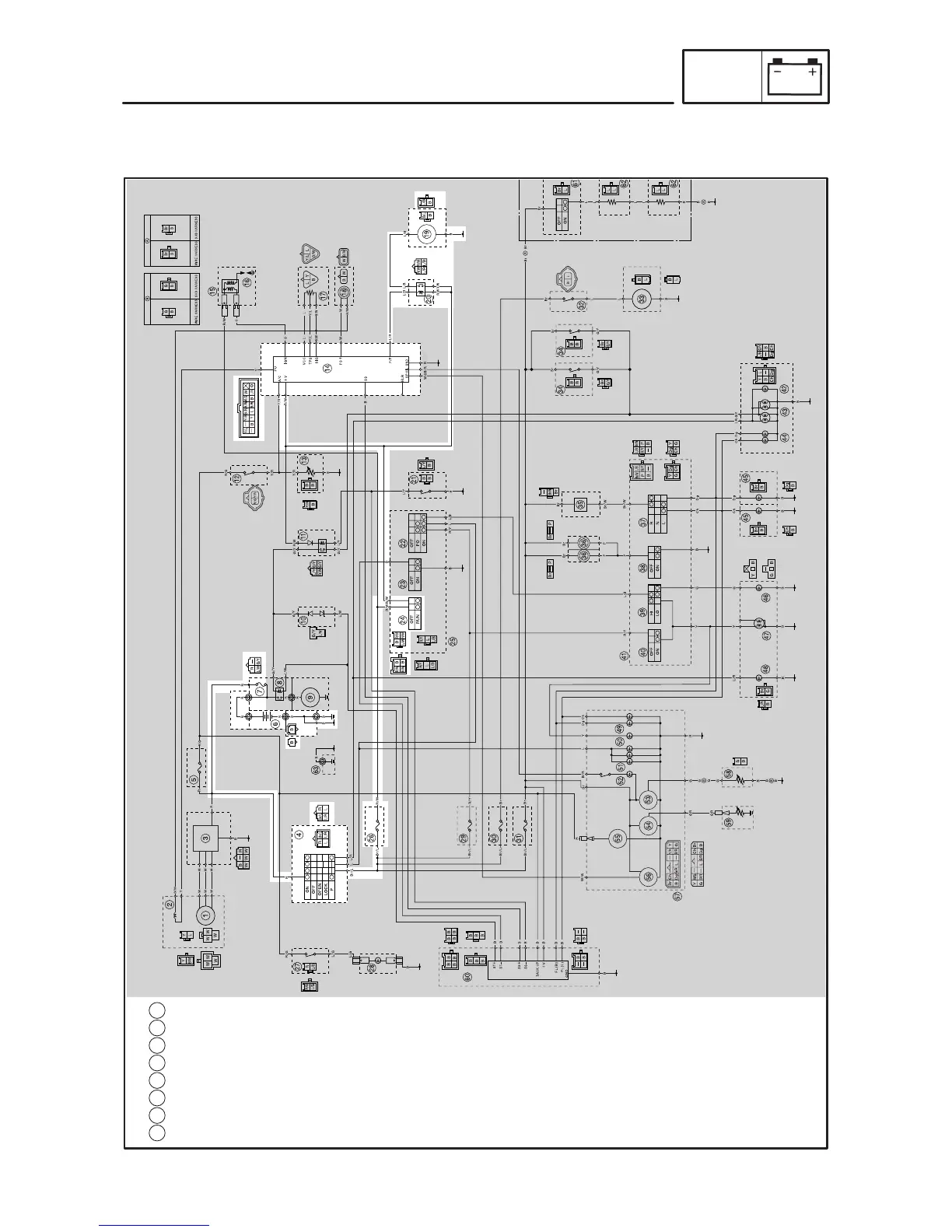

FUEL PUMP SYSTEM
CIRCUIT DIAGRAM
FUEL PUMP SYSTEM
ELEC
