Yamaha YZ250 2001 User Manual

Chapter II 9
Chapter 2
2.1 Loosen Fork Bolts
Before removing the wheel from your YZ250 you must loosen the bolts
squeezing the forks (front suspension) to the bolts.
Tools Needed

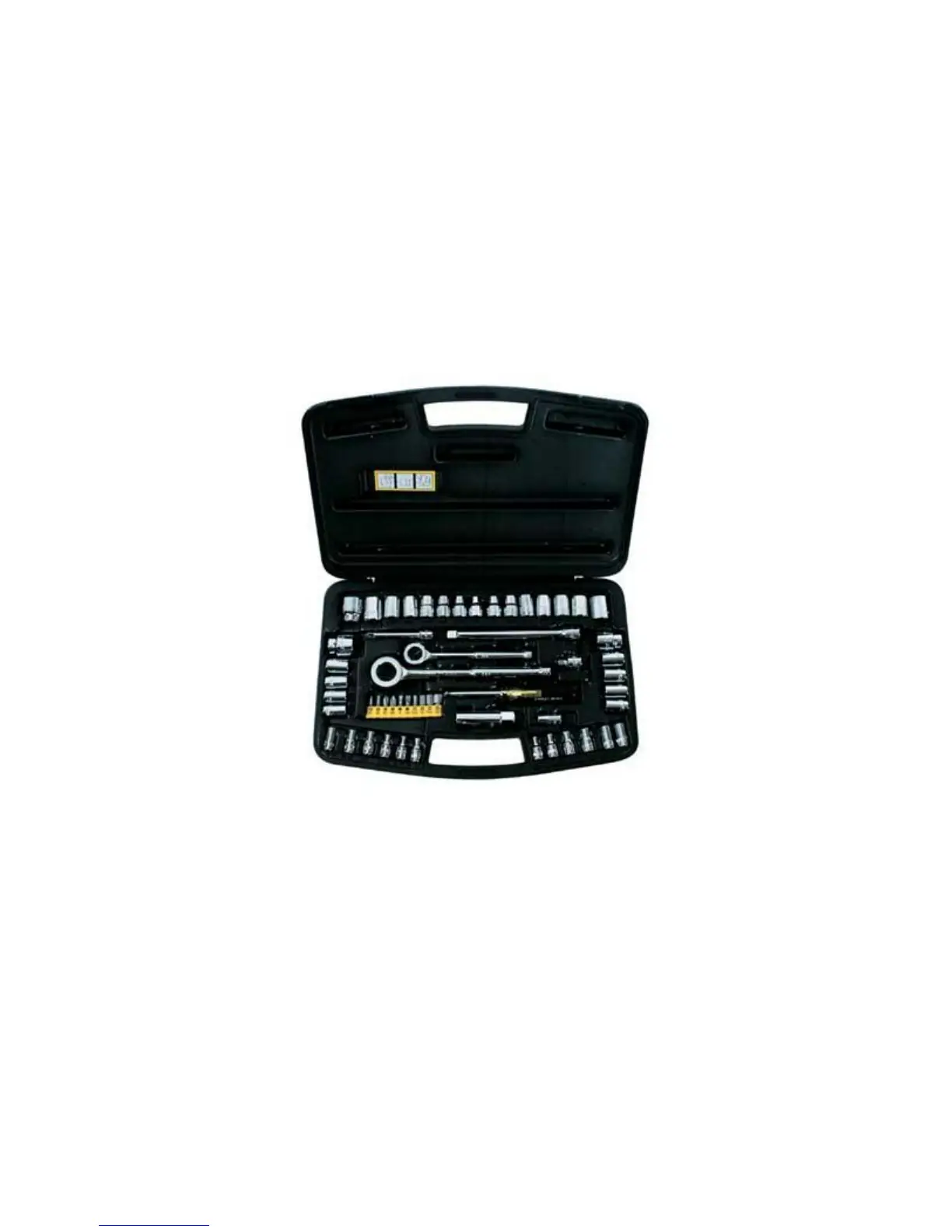

 Socket set

Procedures
 First locate the 8mm socket and attach it to the wrench.
 Find the two bolts located at the bottom of each fork.
 Ensure your ratchet is set to loosen and twist the bolts off to the left.

Yamaha YZ250 2001 Specifications

General

Displacement	249 cc
Bore x Stroke	66.4 mm x 72.0 mm
Compression Ratio	8.9:1
Fuel System	Keihin PWK38S carburetor
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Tire	80/100-21
Rear Tire	110/90-19
Engine Type	2-stroke
Front Suspension	46mm telescopic fork
Rear Suspension	Swingarm, 12.4 inches travel
Front Brake	Single disc
Rear Brake	Single disc
Wheelbase	58.3 inches
Seat Height	39.4 in.
Dry Weight	212 lbs
Fuel Capacity	2.1 gallons
Width	32.5 in.
Ground Clearance	14.2 in.
Height	51.4 in.
