5 - 42
CHAS
HANDLEBAR
EC5B0000
HANDLEBAR
Extent of removal:
1
Handlebar removal
Extent of removal Order Part name Q’ty Remarks
Preparation for removal

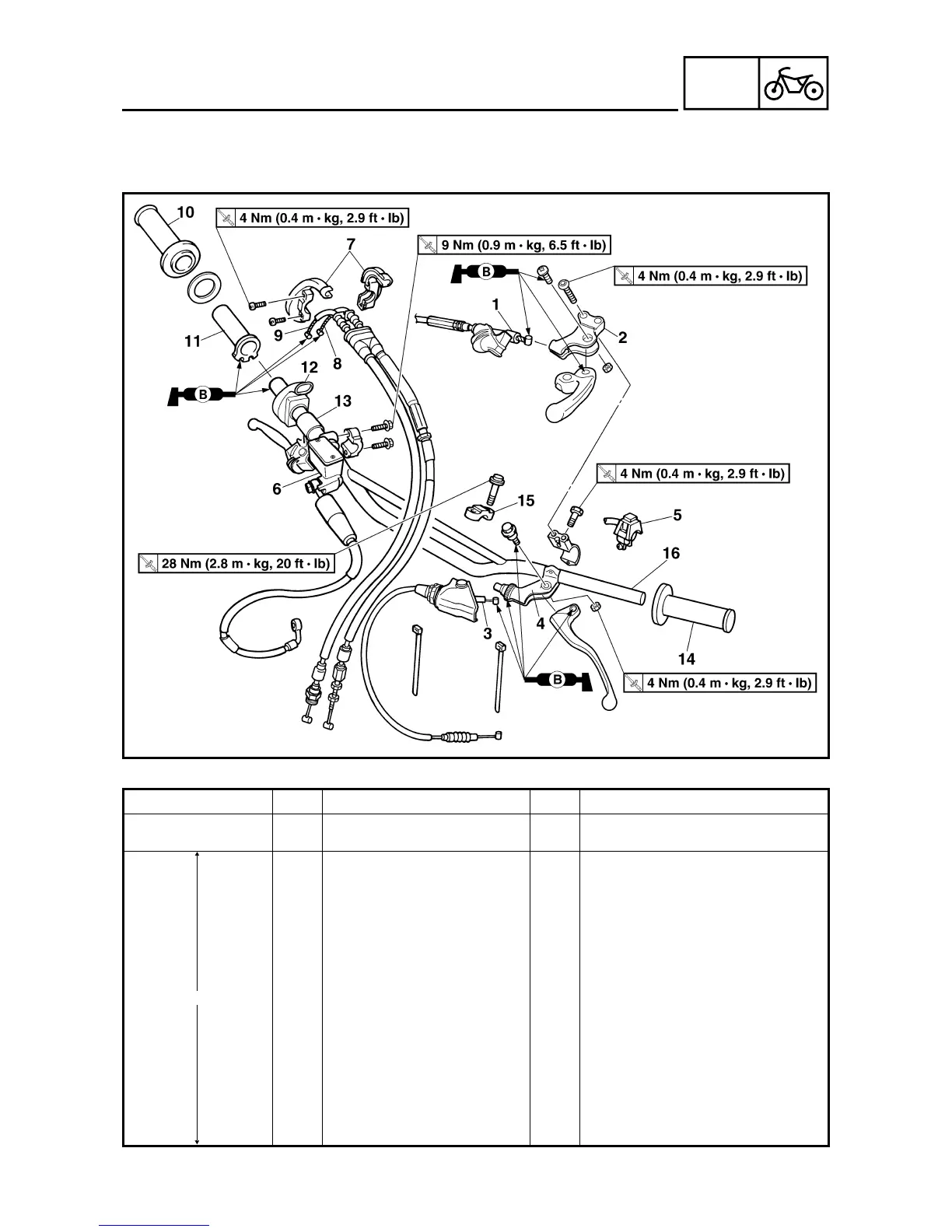

HANDLEBAR REMOVAL
Number plate Remove the clamp portion only.
1 Hot starter cable 1 Disconnect at the lever side.
2 Hot starter lever holder 1
3 Clutch cable 1 Disconnect at the lever side.
4 Clutch lever holder 1
5 Engine stop switch 1
6 Brake master cylinder 1 Refer to “REMOVAL POINTS”.
7 Throttle cable cap 1
8 Throttle cable #1 (pulled) 1 Disconnect at the throttle side.
9 Throttle cable #2 (pushed) 1 Disconnect at the throttle side.
10 Right grip 1 Refer to “REMOVAL POINTS”.
11 Tube guide 1
12 Grip cap cover 1
13 Collar 1
14 Left grip 1 Refer to “REMOVAL POINTS”.
15 Handlebar upper holder 2
16 Handlebar 1
1

Yamaha yz250f 2005 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 5-valve
Displacement	249 cc
Bore x Stroke	77.0 x 53.6mm
Compression Ratio	12.5:1
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Tire	80/100-21
Rear Tire	100/90-19
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Single disc
Wheelbase	1, 475 mm
Width	32.5 in
