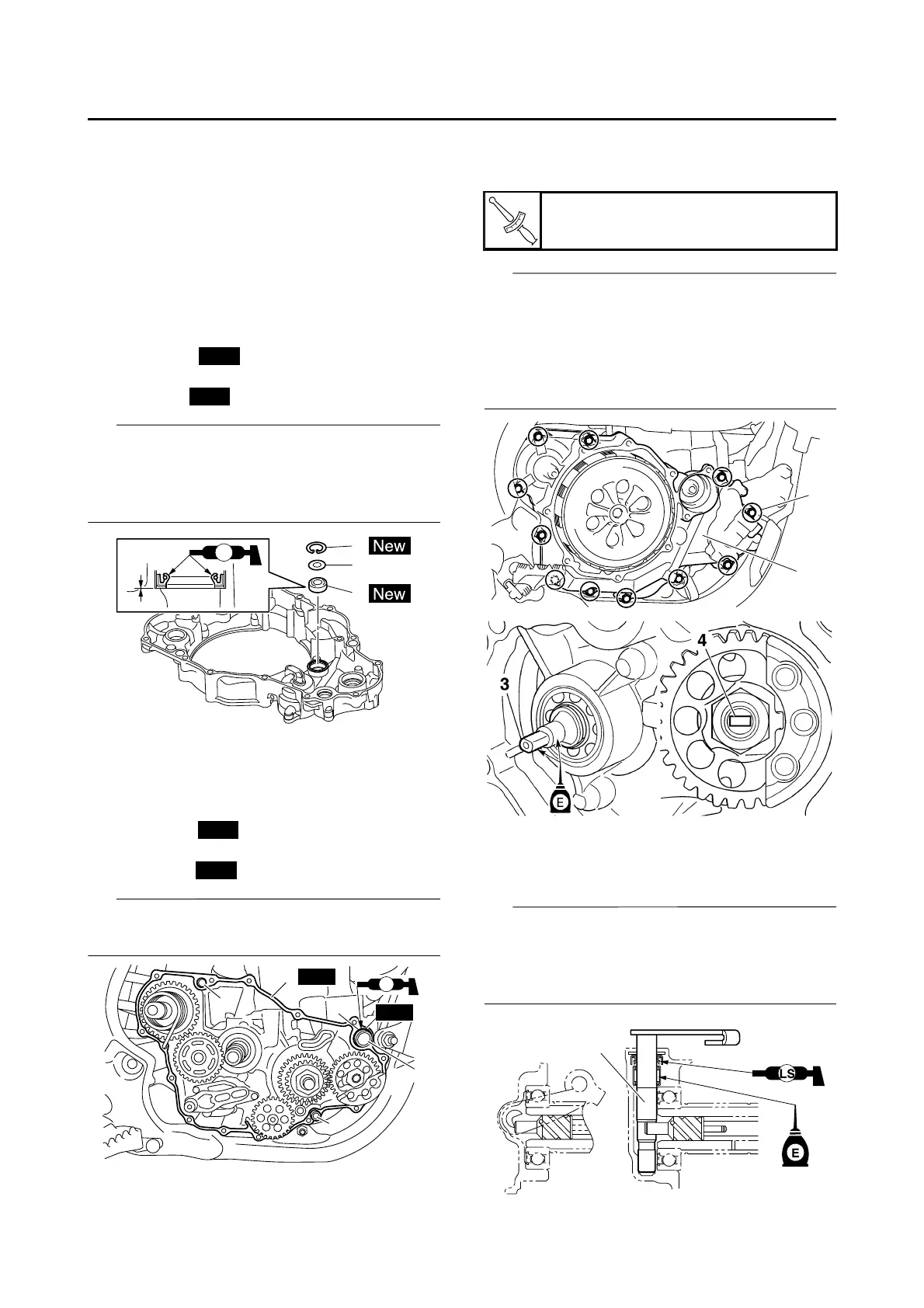

CLUTCH
5-42
EAS1SL5244
CHECKING THE PRIMARY DRIVEN GEAR
1. Check:
• Primary driven gear
Damage/wear  Replace the primary drive
and primary driven gears as a set.
Excessive noise during operation  Re-
place the primary drive and primary driven
gears as a set.
EAS1SL5245
INSTALLING THE OIL SEAL
1. Install:
• Oil seal “1”
• Washer “2”
• Circlip “3”
TIP
• Apply is lithium-soap-based grease on the oil
seal lip.
• Install the oil seal in parallel with its manufac-
ture's marks or numbers facing inward.
EAS1SL5246
INSTALLING THE RIGHT CRANKCASE
COVER
1. Install:
• Dowel pin “1”
• O-rings “2”
• Collar “3”
• Gasket “4”
TIP
Apply the lithium-soap-based grease on the O-
ring.
2. Install:
• Right crankcase cover “1”
• Right crankcase cover bolt “2”
TIP
• Apply the engine oil on the impeller shaft end.
• When installing the crankcase cover onto the
crankcase, make sure that the impeller shaft
end “3” aligns with the balancer end slot “4”.
• Tighten the right crankcase cover bolts in
stages and in a crisscross pattern.
EAS1SL5247
INSTALLING THE CLUTCH
1. Install:
• Push lever shaft “1”
TIP
• Apply the lithium soap base grease on the oil
seal lip.
• Before installation, apply the engine oil to the
push lever shaft sliding surface.
New
New
3
2
1
LS
New
New
1
1
4
2
New
New
3
LS
Right crankcase cover bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
T
R
.
.
1
2
1

Yamaha YZ450F Specifications

General

Displacement	449cc
Bore x Stroke	97.0 mm x 60.8 mm
Transmission	5-speed
Final Drive	Chain
Width	32.5 in
Seat Height	38.2 in
Wheelbase	58.5 in
Fuel Capacity	1.6 gal
Fuel System	Fuel Injection
Front Suspension	KYB® Speed-Sensitive System inverted fork; fully adjustable, 12.2-in travel
Front Brakes	Hydraulic single disc, 270mm
Rear Brakes	Hydraulic single disc
Front Tire	80/100-21
Rear Tire	120/80-19
Wet Weight	245 lbs
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
