Periodic maintenance and adjustment
7-22
1
2
3
4
5
6
7
8
9
10
11
12
5. Tighten the locknut.
6. Install the cowling.
EAU37914
Checking the brake lever free
play
There should be no free play at the
brake lever end. If there is free play,
have a Yamaha dealer inspect the
brake system.
WARNING
EWA14212
A soft or spongy feeling in the brake
lever can indicate the presence of air
in the hydraulic system. If there is air
in the hydraulic system, have a
Yamaha dealer bleed the system be-
fore operating the vehicle. Air in the
hydraulic system will diminish the
braking performance, which may re-
sult in loss of control and an acci-
dent.

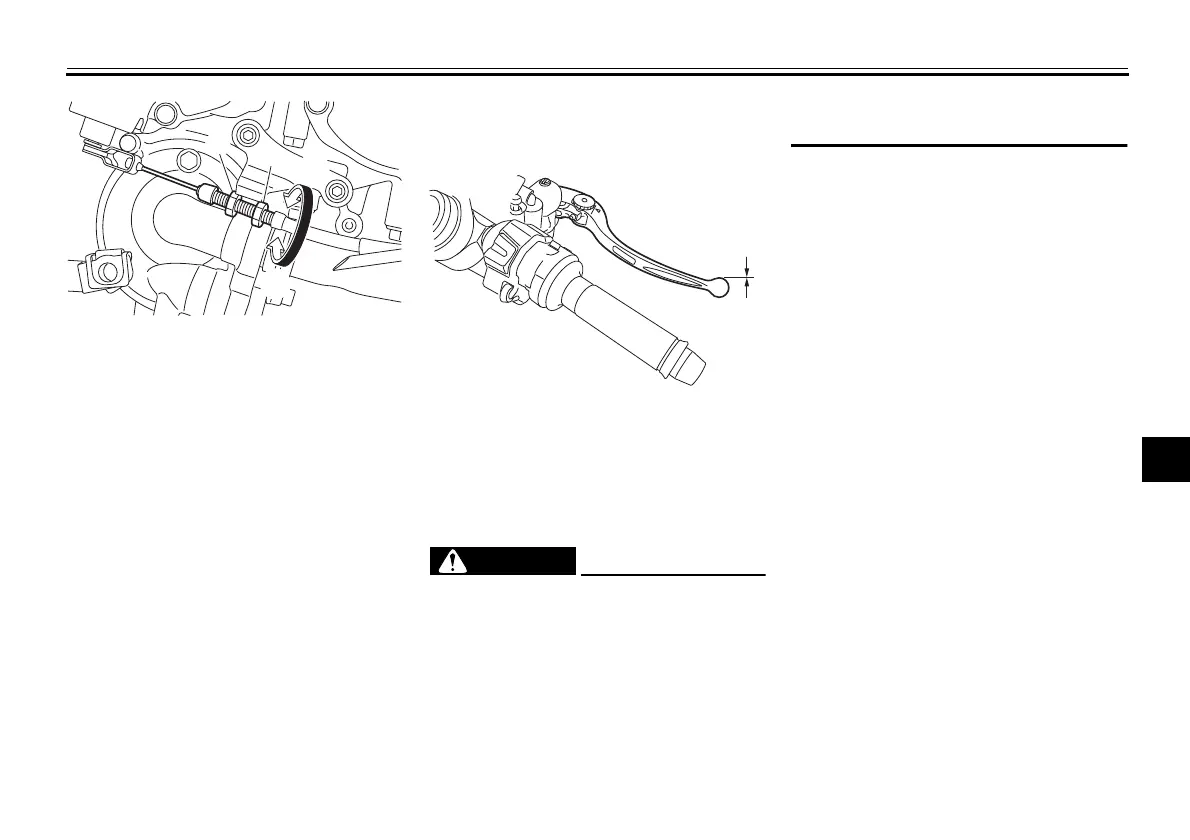

1. Locknut
2. Clutch lever free play adjusting nut
1
2
(a)
(b)
1. No brake lever free play
1
BX4-9-E1_1.book 22 ページ ２０１８年４月２７日 金曜日 午後４時３分

Yamaha YZF-R1 Specifications

General

Bore x Stroke	79.0mm x 50.9mm
Compression Ratio	13.0:1
Fuel System	Fuel injection with YCC-T and YCC-I
Final Drive	Chain
Front Tire	120/70ZR17
Rear Tire	190/55ZR17
Wheelbase	55.3 in
Fuel Capacity	4.5 gal
Curb Weight	448 lb
Width	27.2 in
Ground Clearance	5.1 in
Engine Type	Liquid-cooled inline 4-cylinder; DOHC, 4 valves per cylinder
Transmission	6-speed
Clutch	Multiplate slipper clutch
Front Suspension	43mm KYB® inverted fork; fully adjustable
Rear Suspension	KYB® single shock; fully adjustable
Front Brakes	Dual 320mm hydraulic disc; ABS
Rear Brakes	220mm hydraulic disc; ABS
