Instrument and control functions
4-3
1
2
3
4
5
6
7
8
9
10
11
12

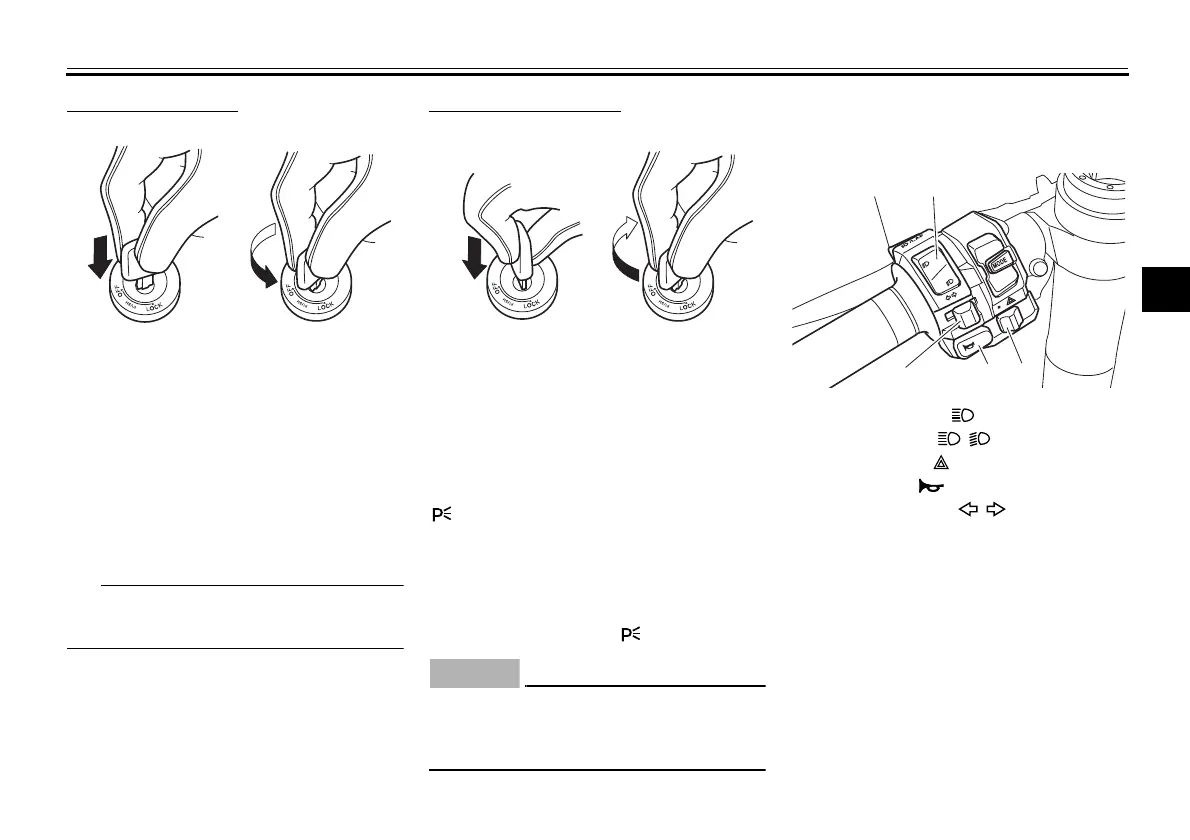

To lock the steering
1. Turn the handlebars all the way to
the left.
2. With the key in the “OFF” position,
push the key in and turn it to
“LOCK”.
3. Remove the key.
TIP
If the steering will not lock, try turning
the handlebars back to the right slightly.
To unlock the steering
From the “LOCK” position, push the
key in and turn it to “OFF”.
EAU65680
(Parking)
The hazard lights can be turned on, but
all other electrical systems are off. The
key can be removed.
The steering must be locked before the
key can be turned to “ ”.
NOTICE
ECA22330
Using the hazard lights for an ex-
tended length of time may cause the
battery to discharge.
EAU66055
Handlebar switches
Left
1. Push.
2. Turn.
12
1. Push.
2. Turn.
12
1. Pass/LAP switch “ /LAP”
2. Dimmer switch “ / ”
3. Hazard switch “ ”
4. Horn switch “ ”
5. Turn signal switch “ / ”
12
543
BX4-9-E1_1.book 3 ページ ２０１８年４月２７日 金曜日 午後４時３分

Yamaha YZF-R1 Specifications

General

Bore x Stroke	79.0mm x 50.9mm
Compression Ratio	13.0:1
Fuel System	Fuel injection with YCC-T and YCC-I
Final Drive	Chain
Front Tire	120/70ZR17
Rear Tire	190/55ZR17
Wheelbase	55.3 in
Fuel Capacity	4.5 gal
Curb Weight	448 lb
Width	27.2 in
Ground Clearance	5.1 in
Engine Type	Liquid-cooled inline 4-cylinder; DOHC, 4 valves per cylinder
Transmission	6-speed
Clutch	Multiplate slipper clutch
Front Suspension	43mm KYB® inverted fork; fully adjustable
Rear Suspension	KYB® single shock; fully adjustable
Front Brakes	Dual 320mm hydraulic disc; ABS
Rear Brakes	220mm hydraulic disc; ABS
