SWINGARM
4-69
NOTE:
• Lubricate the swingarm pivot ring nut threads
and mating surfaces with lithium-soap-based
grease.

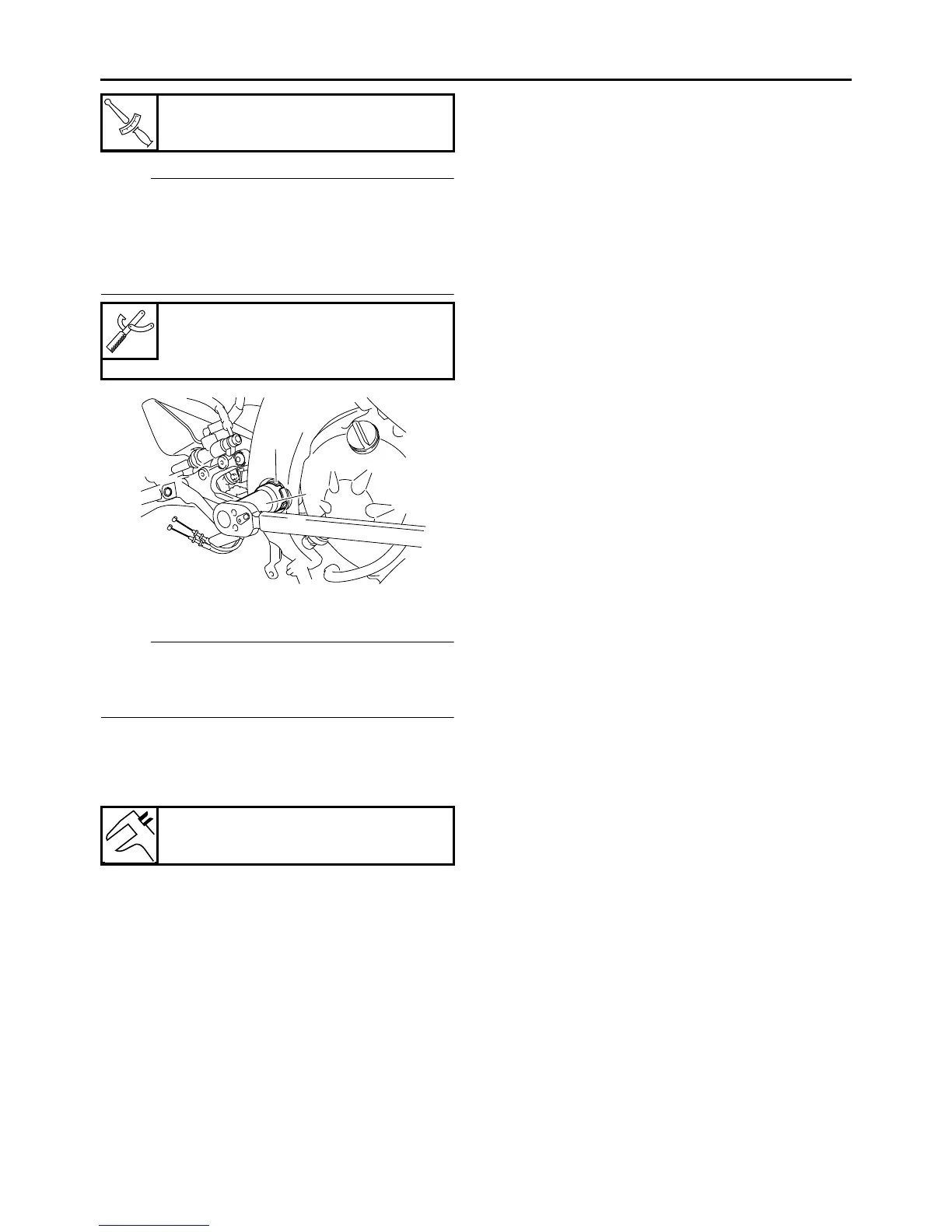

• Tighten the swingarm pivot shaft ring nut with
the ring nut wrench “2”.
5. Install:
• Swingarm pivot shaft nut
NOTE:
Lubricate the swingarm pivot shaft nut threads
and mating surfaces with lithium-soap-based
grease.
6. Adjust:
• Drive chain slack
Refer to “ADJUSTING THE DRIVE CHAIN
SLACK” on page 3-25.
T
R
.
.
Swingarm pivot shaft ring nut
95 Nm (9.5 m·kg, 68 ft·lb)
Ring nut wrench
90890-01507
YM-01507
Drive chain slack
35.0–45.0 mm (1.38–1.77 in)
