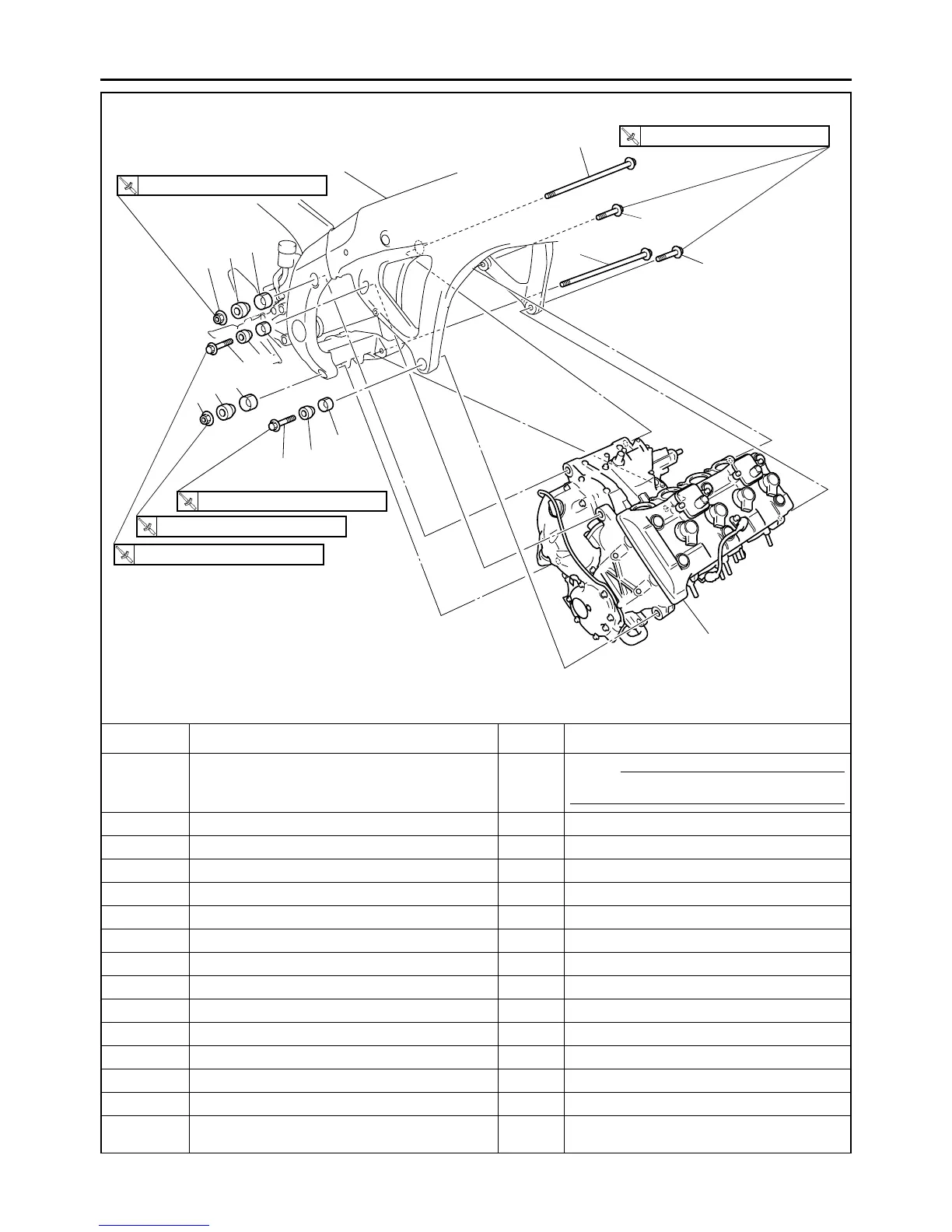

ENGINE REMOVAL
5-5
Removing the engine
Order Job/Parts to remove Q’ty Remarks
NOTE:
Place a suitable stand under the engine.
1 Engine mounting bolt (front right side) 2
2 Engine mounting collar (outside) 2
3 Engine mounting collar (inside) 2
4 Engine mounting bolt (front left side) 2
5 Engine mounting nut (rear upper side) 1
6 Engine mounting collar (outside) 1
7 Engine mounting collar (inside) 1
8 Engine mounting bolt (rear upper side) 1
9 Engine mounting nut (rear lower side) 1
10 Engine mounting collar (outside) 1
11 Engine mounting collar (inside) 1
12 Engine mounting bolt (rear lower side) 1
13 Engine 1
For installation, reverse the removal proce-
dure.
1
2
3
9
10
11
5
6
7
1
13
2
3
4
4
8
12
T
R
.
.
45 Nm (4.5 m
•
kg, 32 ft
•
Ib)
T
R
.
.
45 Nm (4.5 m
•
kg, 32 ft
•
Ib)
T
R
.
.
68 Nm (6.8 m
•
kg, 49 ft
•
Ib)
T
R
.
.
68 Nm (6.8 m
•
kg, 49 ft
•
Ib)
T
R
.
.
45 Nm (4.5 m
•
kg, 32 ft
•
Ib)
