CAMSHAFTS
5-8

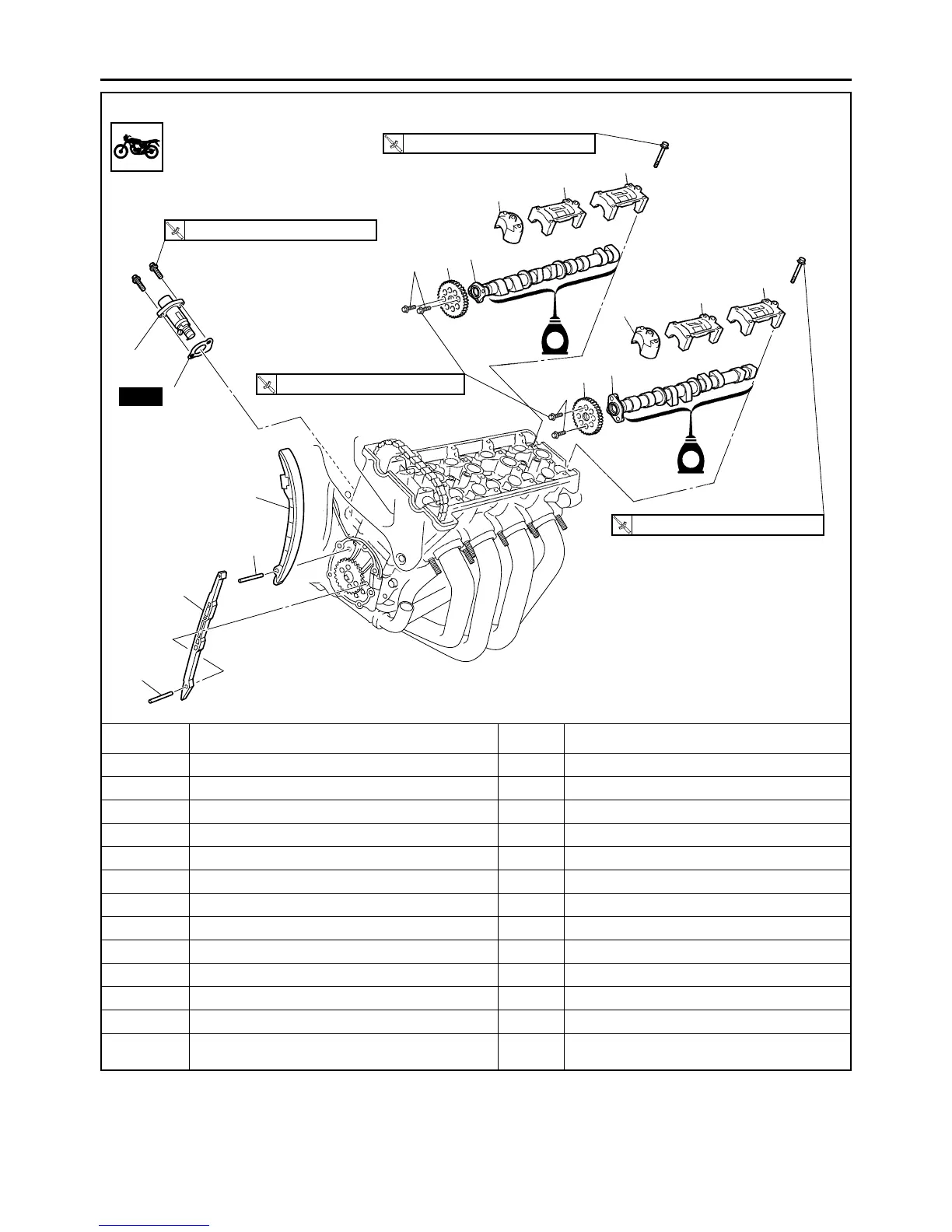

Removing the camshafts
Order Job/Parts to remove Q’ty Remarks
Pickup rotor cover Refer to “PICKUP ROTOR” on page 5-30.
1 Camshaft sprocket bolt 4 Loosen.
2 Timing chain tensioner 1
3 Timing chain tensioner gasket 1
4 Intake camshaft cap 3
5 Exhaust camshaft cap 3
6 Camshaft sprocket 2
7 Intake camshaft 1
8 Exhaust camshaft 1
9Pin 2
10 Timing chain guide (intake side) 1
11 Timing chain guide (exhaust side) 1
For installation, reverse the removal proce-
dure.
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
24 Nm (2.4 m
•
kg, 17 ft
•
Ib)
T
R
.
.
12 Nm (1.2 m
•
kg, 8.7 ft
•
Ib)
New
4
1
6
2
3
10
9
7
5
5
5
(10)
(10)
8
6
1
11
9
4
4
M
M
