Instruments and indicators
33
will return to normal thereafter.
EMU26752
Fuel flow meter
The fuel flow meter displays the amount of
fuel flow over a one-hour period, at the cur-
rent rate of engine operation.
●
The fuel flow meter displays gallons/hour
or liters/hour according to operator prefer-
ence. Select the desired units of measure-
ment by setting the selector switch on the
back of the gauge during installation.
●
The fuel consumption meter and fuel
economy meter will indicate the same unit
of measurement.
Fuel flow readings are not accurate when the
engine is operating under about 1300 r/min.
As the fuel pump cycles on and off, the dis-
play indicates either no fuel flow or higher
flow than the actual average use.
Dual engine users: the fuel flow meter can
display the fuel flow of either or both engines.
To change the fuel flow display, press the
“” (set) button repeatedly until the gauge
displays “” (for fuel flow to the starboard en-
gine only), “” (for fuel flow to the port engine
only), or “” (for total fuel flow both en-
gines).
EMU36090
Fuel consumption meter / Fuel
economy meter / Twin engine speed
synchronizer
The display shows either the fuel consump-
tion meter, the fuel economy meter, or the
twin engine synchronizer.
To change the display, press the “”
(mode) button repeatedly until the indicator
on the face of the gauge points to “” (fuel
consumption meter), “” (fuel economy
meter), or “” (twin engine speed syn-
chronizer).
EMU26761
Fuel consumption meter
This gauge displays the total amount of fuel
consumed since the gauge was last reset.
To reset the total fuel consumption meter to
zero, press the “” (set) and “” (mode)
buttons at the same time.

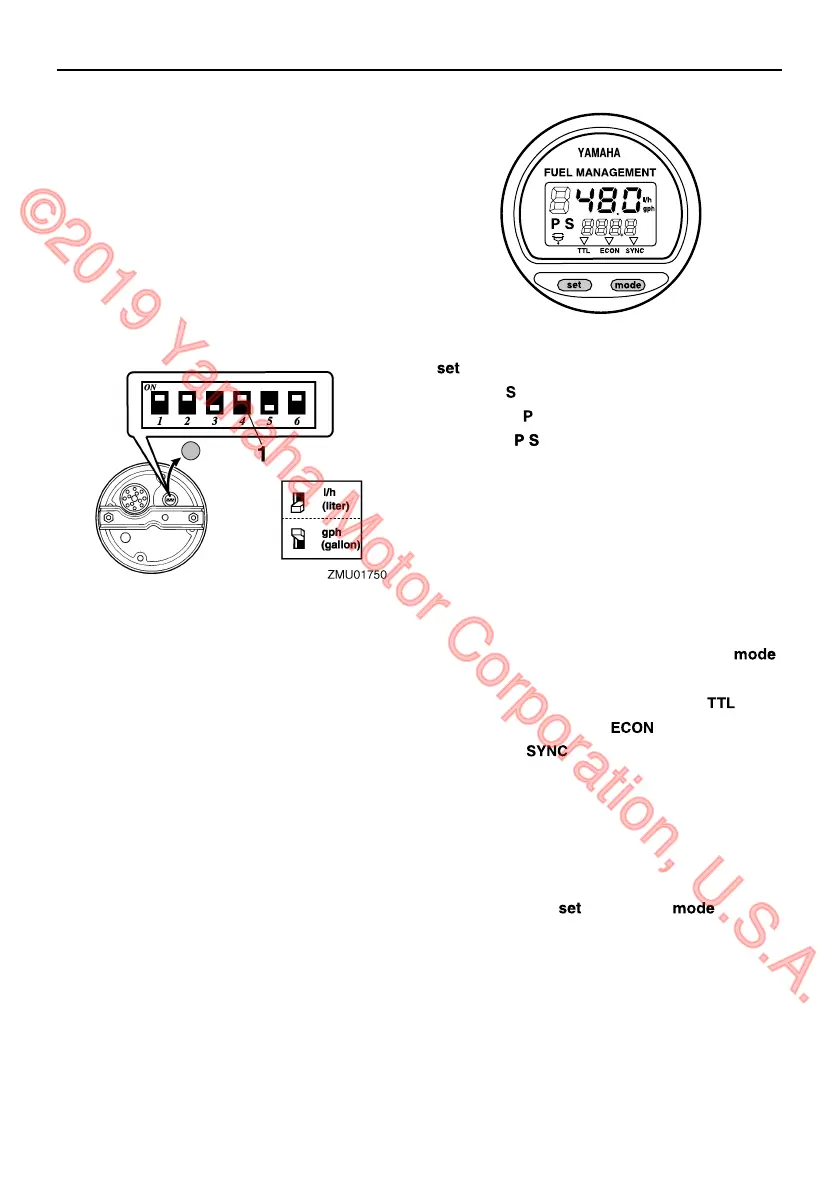

1. Selector switch
ZMU01749
✩✫✳✬✤✲ ✦✦
