9.3 FUEL SYSTEM
The Yamarin 6230 has a built-in 140 litre fuel tank. A fuel filter has been installed in the fuel
line. A filter located in the tank compartment also functions as a water separator. The filter
must be emptied every now and then and it should be replaced at least once a year. When the
filter has been removed and reinstalled, fill the fuel line with the hand pump bulb.

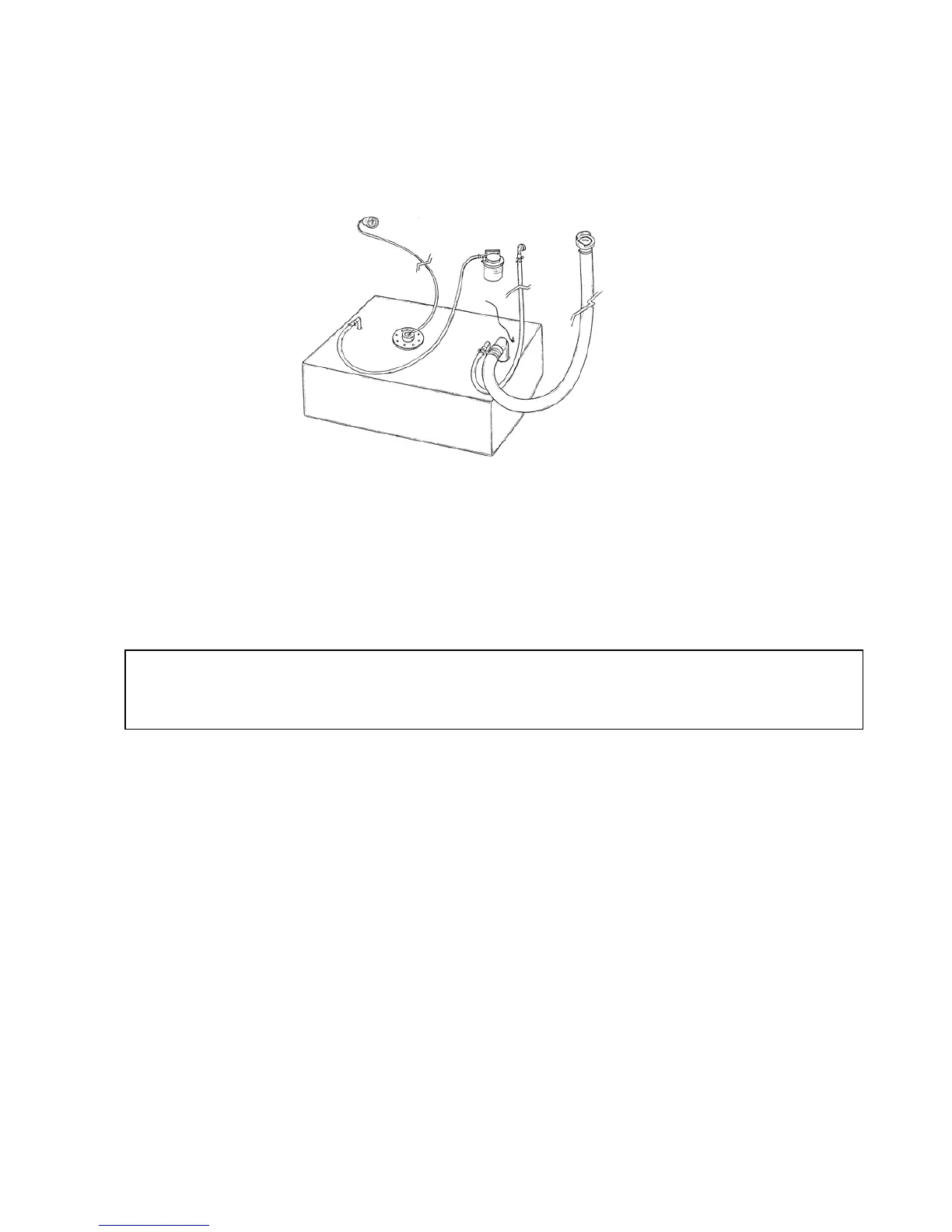

Figure 6. Fuel system
9.4 STEERING SYSTEM
The Yamarin 6230 has a hydraulic steering system. The length of the hydraulic hoses is 5.2
metres.
9.5 ELECTRICAL SYSTEM
The standard electrical system of the Yamarin 6230 boat includes the following main
components:
1. BATTERY
2. WIRE HARNESS
3. MAIN SWITCH
4. BATTERY COMPARTMENT FUSE PANEL
5. CABIN FUSE PANEL
6. 4 SWITCHES WITH AUTOMATIC FUSES
7. 2 EXTRA SWITCHES WITH AUTOMATIC FUSES
8. 12V OUTLET
9. NAVIGATION LIGHTS
10. BILGE PUMP
11. WINDSHIELD WIPER (RIGHT)
12. CABIN LIGHT
Additionally, an essential part of the boat's electrical system is the engine, which functions as
a power source and power consumer. Cables for connecting the engine with the boat's
electrical system are normally delivered with the engine.
NOTE! If you want to replace a component in the steering system, you should know
that all components must be in conformity with the ISO 10592 standard and
have the CE marking.
