Digital Controller SIO Driver
GP-Pro EX Device/PLC Connection Manual
122
6H)

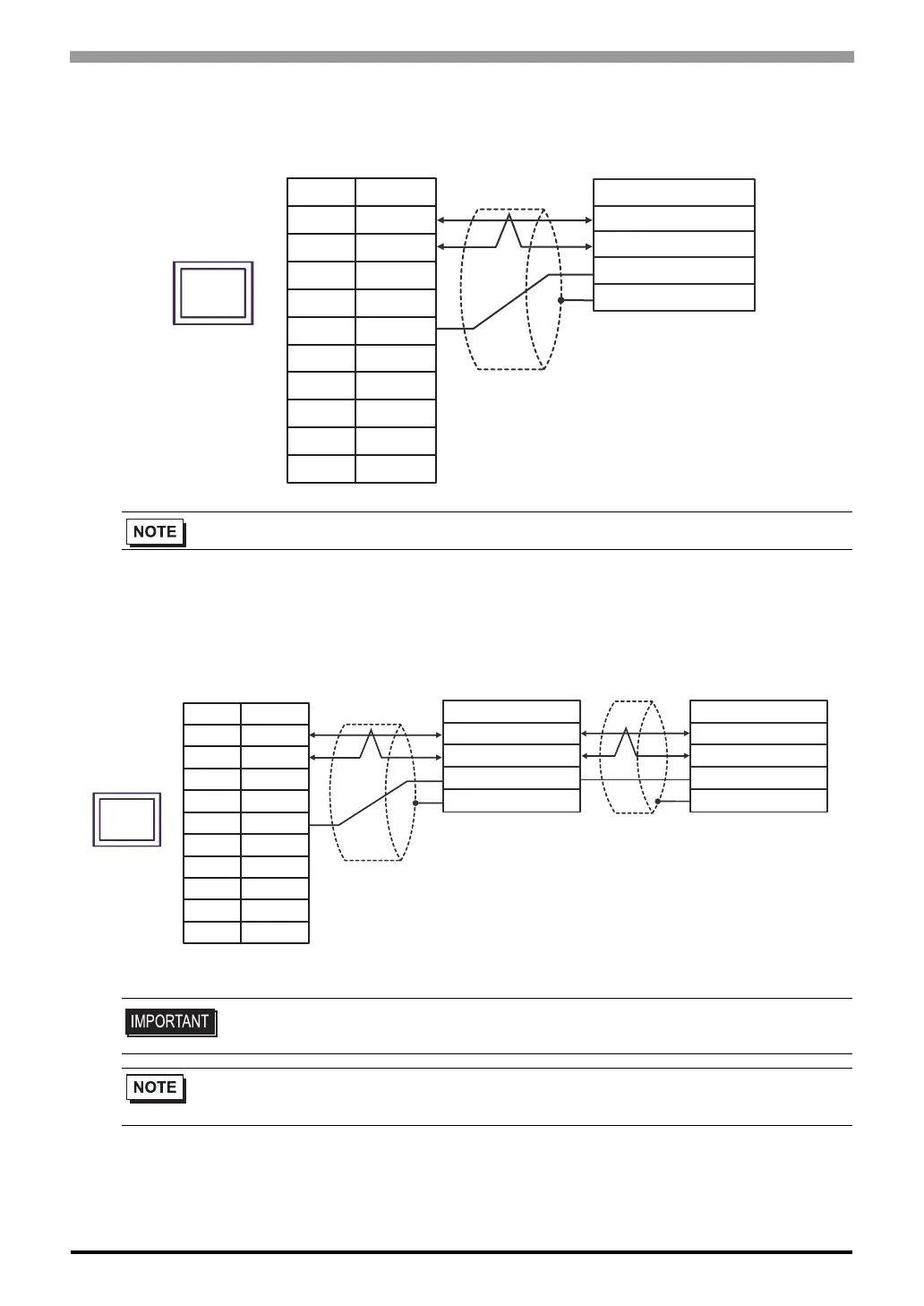

1:1 Connection
1:n Connection
No termination resistor is required.
The 5V output (Pin #6) on the GP-4107 is the power for the Siemens AG’s
PROFIBUS connector. Do not use it for other devices.
No termination resistor is required.
In COM on the GP-4107, the SG and FG terminals are isolated.
Shield
DA
DB
SG
FG
Terminal block
Signal name
Controller
Display
Pin
Signal name
NC
NC
GND(SG)
RS(RTS)
5V
NC
NC
FG
LINE(+)
LINE(-)
3
8
1
2
5
4
6
7
9
Shell
Display side
D-Sub 9pin (plug)
Shield
DA
DB
SG
FG
Shield
DA
DB
SG
FG
Terminal block
Signal name
Controller
Terminal block
Signal name
Controller
Display
Pin
Signal name
NC
NC
GND(SG)
RS(RTS)
5V
NC
NC
FG
LINE(+)
LINE(-)
3
8
1
2
5
4
6
7
9
Shell
Display side
D-Sub 9pin (plug)
