104
CHAPTER SIX

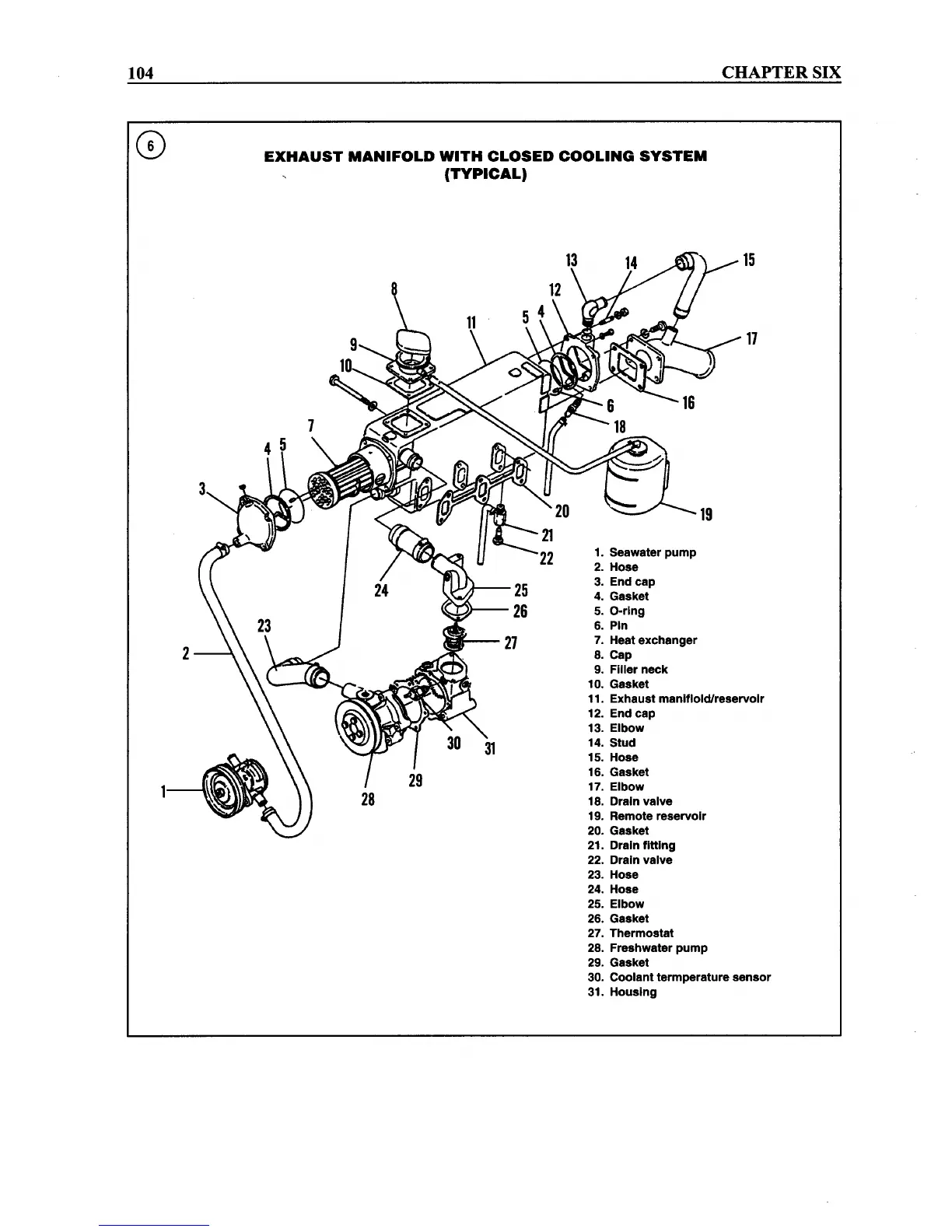

EXHAUST MANIFOLD WITH CLOSED COOLING SYSTEM
(TYPICAL)
29
15
17
1. Seawater pump
2. Hose
3. End cap
4. Gasket
5. a-ring
6. Pin
7. Heat exchanger
8. Cap
9. Filler neck
10. Gasket
11. Exhaust manlfloldlreservolr
12. End cap
13. Elbow
14. Stud
15. Hose
16. Gasket
17. Elbow
18. Drain valve
19. Remote reservoir
20. Gasket
21. Drain fitting
22. Drain valve
23. Hose
24. Hose
25. Elbow
26. Gasket
27. Thermostat
28. Freshwater pump
29. Gasket
30. Coolant termperature sensor
31. Housing
