206
CHAPTER TEN

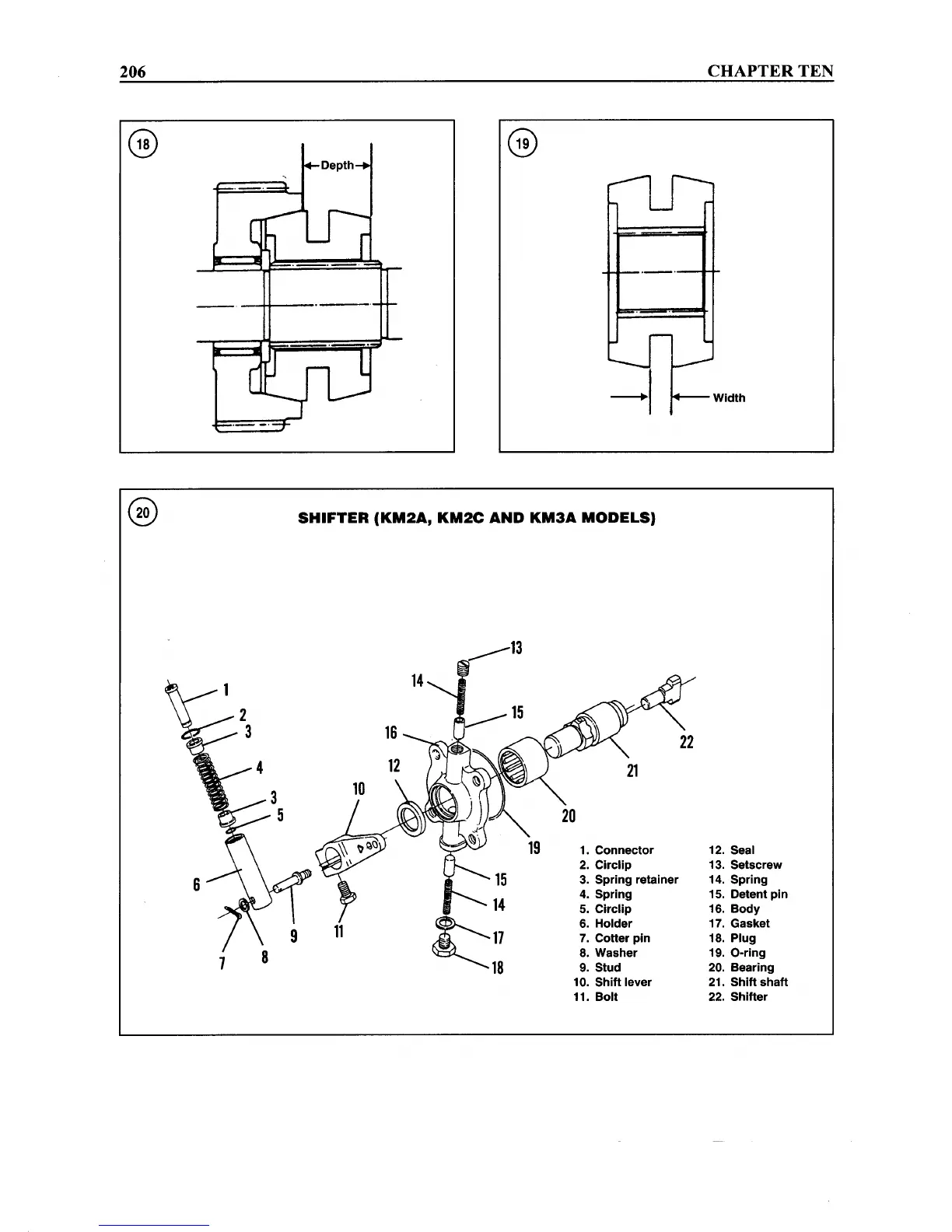

SHIFTER (KM2A, KM2C AND KM3A MODELS)
.---13
7
15
14
~17
~18
1. Connector
2. Circlip
3. Spring retainer
4. Spring
5. Circlip
6. Holder
7. Cotter pin
8. Washer
9. Stud
10. Shift lever
11.
Bolt
12. Seal
13. Setscrew
14. Spring
15. Detent pin
16.
Body
17. Gasket
18. Plug
19. O-ring
20. Bearing
21. Shift shaft
22. Shifter
