22 OPE_EF312T&352T_en.doc
TRAVELLING, PTO RE RELATED FUNCTIONS

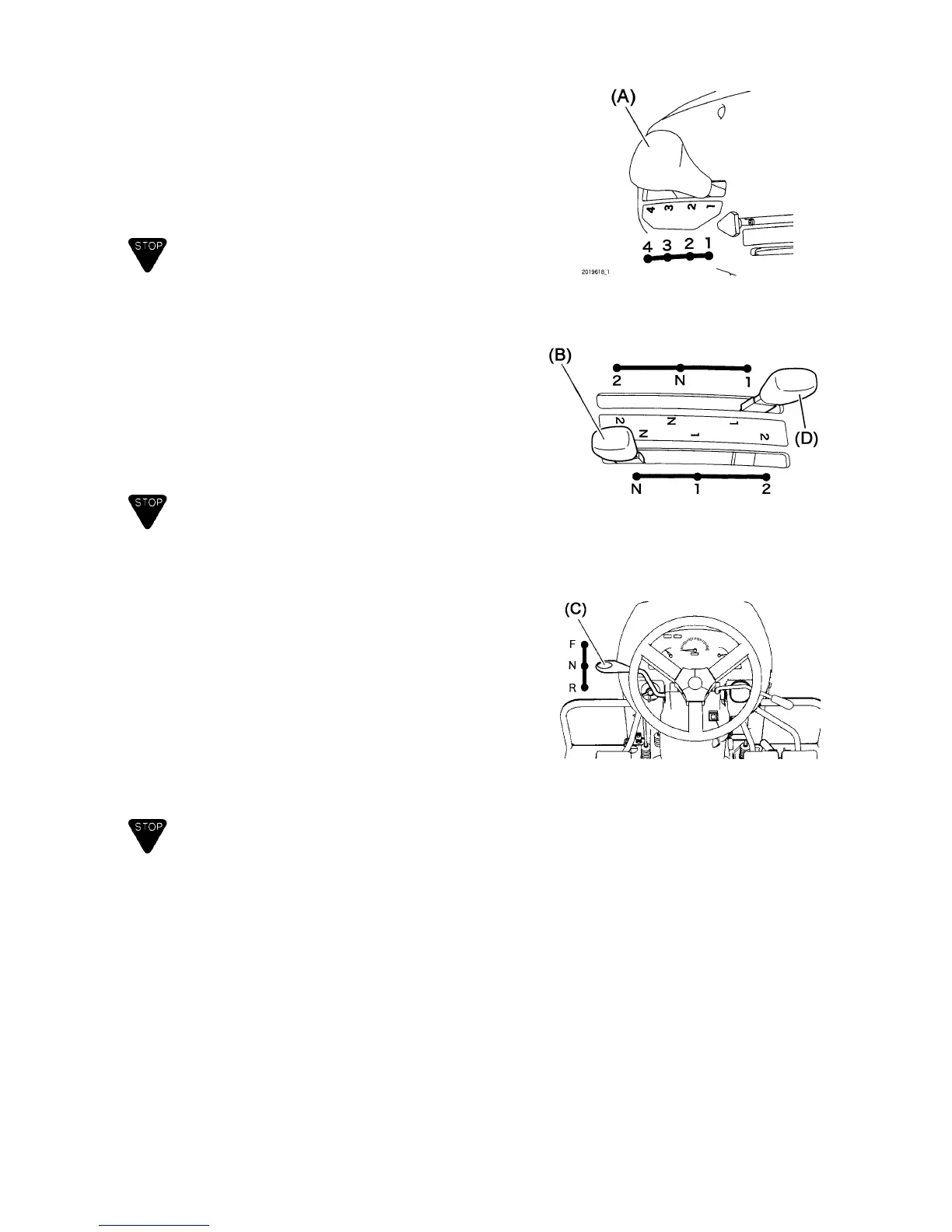

Main shift lever
The transmission has 4 main gear shifts.
Depress the clutch pedal fully, and move the lever to
desired position.
(A) Main shift lever
IMPORTANT
Be sure the tractor stops whenever shifting. If not, it
may cause damage to transmission gears.
Range shift lever
The transmission has 2 range gear shift aside from 4
main gear shifts.
(B) Range shift lever
2: High Speed range
1: Low speed range
N: Neutral
IMPORTANT
Be sure tractor stops when shifting. Do not change
Range shift lever while moving.
Reverser lever
Reverser lever changes the direction of travel of the
tractor, forward or reverse. Depress the clutch pedal
and stop tractor whenever shift the lever.
Lift up the lever to put it in a required position.
Lever lamp lights in the N position.
(C) Reverser lever
F: Forward
N: Neutral
R: Reverse
IMPORTANT
Be sure tractor stops when shifting. Do not change
Reverser lever while moving.
