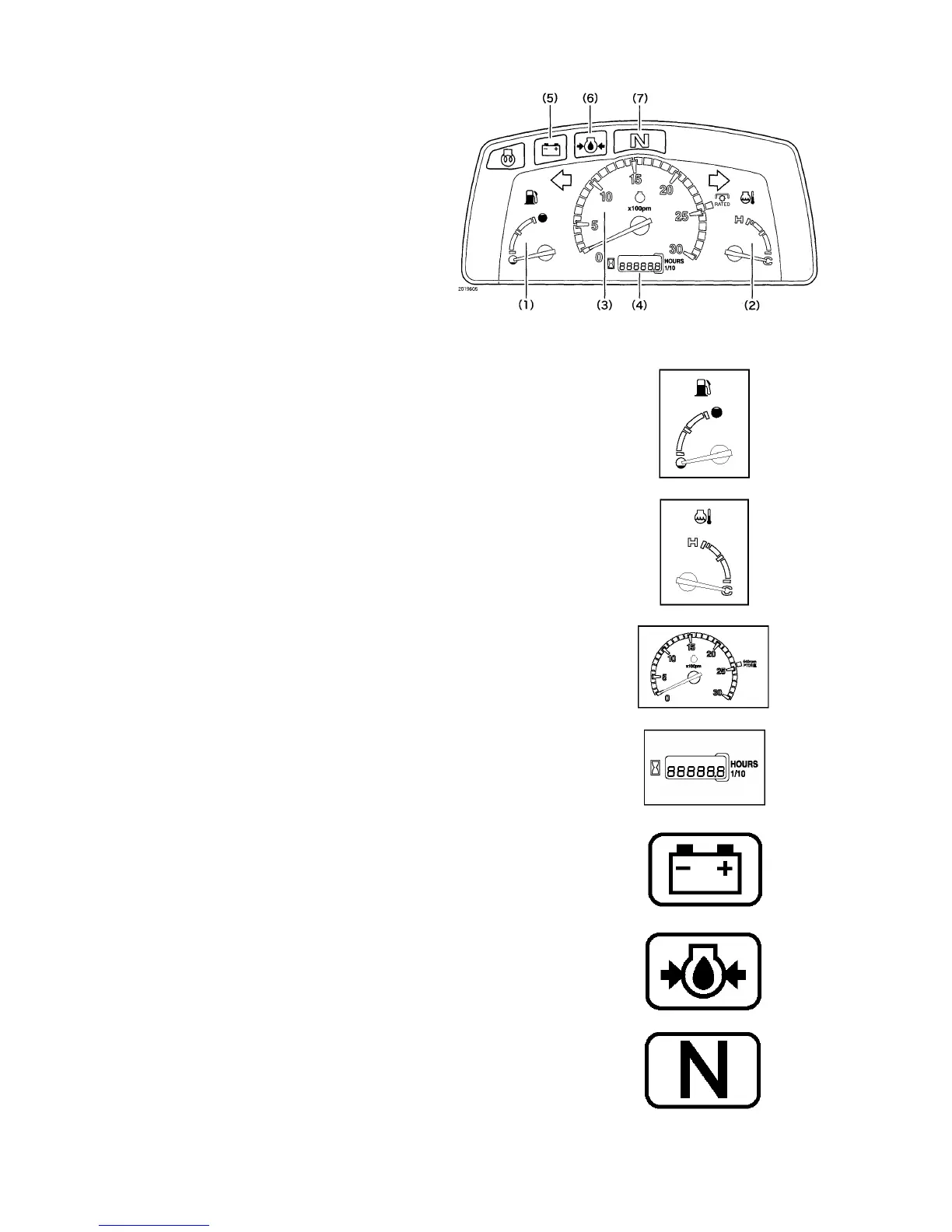

INSTRUMENT PANEL
(1) Fuel gauge
(2) Engine coolant temperature gauge
(3) Tachometer
(4) Hour meter
(5) Battery charge pilot lamp
(6) Engine oil pressure pilot lamp
(7) Reverser lever neutral pilot lamp
(1) Fuel gauge
It indicates fuel level remained in fuel tank when key switch turns on.
(2) Engine coolant temperature gauge
It indicates engine coolant temperature.
If this pointer comes to the red zone, reduce engine speed to idling
and wait for cooling down. Find out the cause and call your dealer
if necessary.
(3) Tachometer
Indicates engine speed in revolution per minute (RPM).
It also indicates PTO speed 540rpm.
(4) Hour meter
It shows operating hour of the engine. It shows when key switch is
in “ON” position. Actual working hour may be different from the
meter amount due to engine speed at working.
(5) Battery charge pilot lamp
This lamp lights when the key switch is in “ON” position.
The charge lamp turns off when engine starts. If the lamp does not
turn off at 1500rpm engine speed or higher, see your dealer.
(6) Engine oil pressure pilot lamp
This lamp lights when the key switch is in “ON” position and goes off
when the engine starts. If the lamp does not turn off after engine
starts, stop the engine immediately and check oil level. If oil level is
sufficient, see your dealer.
(7) Reverser lever neutral pilot lamp
The lamp lights when the reverser lever is in “N” position.
