50 OPE_EF312T&352T_en.doc

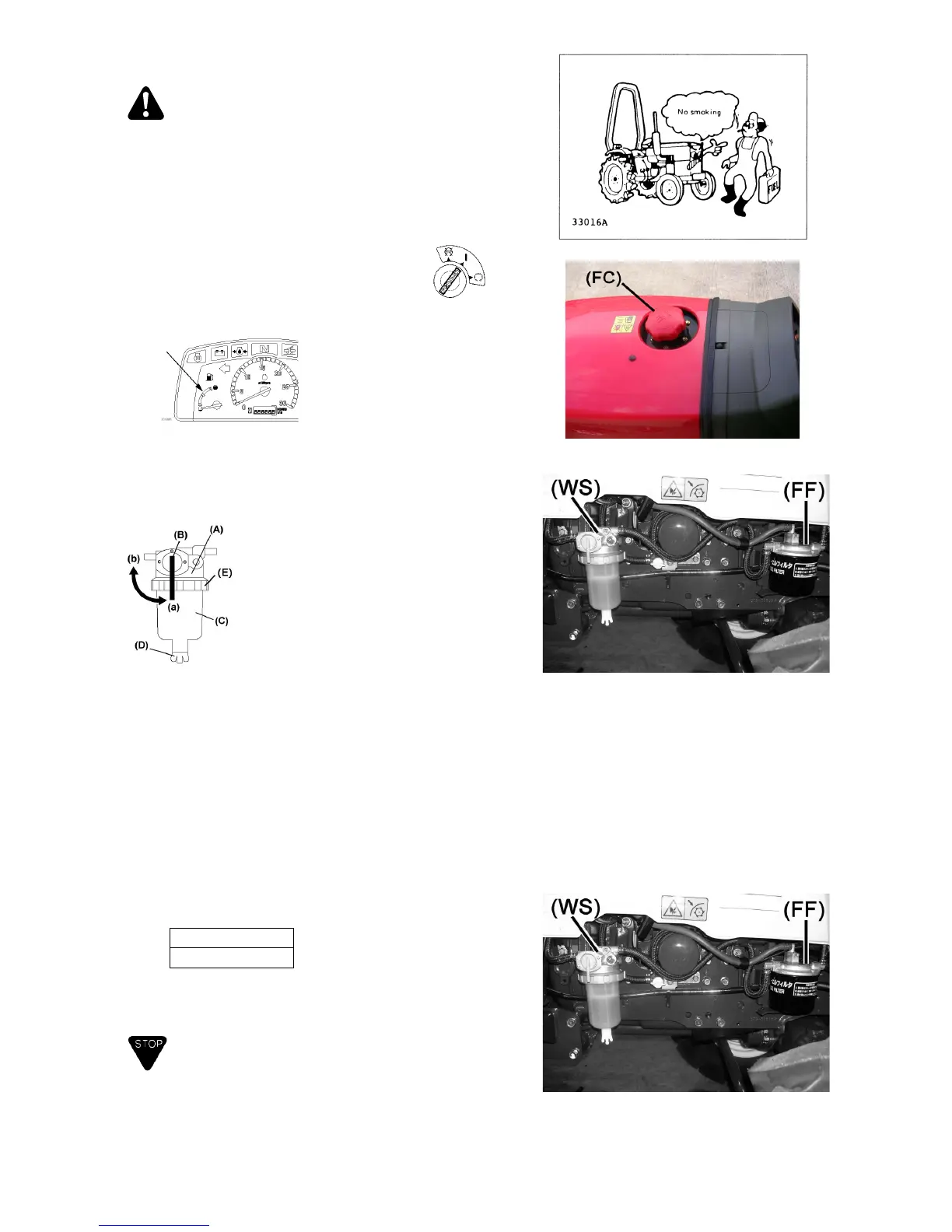

5-2. Refill fuel
DANGER
1) Never smoke or use a bare lamp/light during filling
fuel.
2) After filling fuel, be sure to put the fuel tank cap back
firmly and clean off spelled fuel.
3) Fill fuel after the engine stops and becomes cool. A
fire can result.
Turn key switch to ON position to check fuel
amount in the tank. Fuel gauge shows
amount that fuel remained in the tank.
Refill fuel as required.
(A)
(A) Fuel gauge
(FC) Fuel tank cap
5-3. Drain and cleaning of water separator
Water separator removes water in fuel. When water is
deposited in the bawl of the
separator, drain it.
(A) Water separator
(B) Fuel cock
(C) Strainer
(D) Drain cock
(E) Retaining ring
(a) Open (b) Close
(WS) Water separator
(1) Turn the fuel cock to close position.
(2) Loosen the drain cock on the bottom of the water
separator and drain water. Do not remove drain
cock.
(3) If water is dirty, loosen retaining ring and remove the
bawl. Clean inside of bawl and strainer.
(4) Tighten drain cock or reinstall the removed bawl,
strainer to the original position.
(5) Open fuel cock and see water separator is filled up
with fuel. Crank engine for about 5 – 10 seconds to
bleed the air from the fuel and start engine.
5-4. Replacing fuel filter (Cartridge type)
Replace
Every 300 hours
(1) Apply lubricating oil to the rubber ring of fuel filter.
(2) Install it surely.
IMPORTANT
Use a genuine filter. Engine fuel injector has very
fine hole. If the filtering efficiency is low, it may
cause a trouble in engine.
(FF) Fuel filter
