61 OPE_EF312T&352T_en.doc

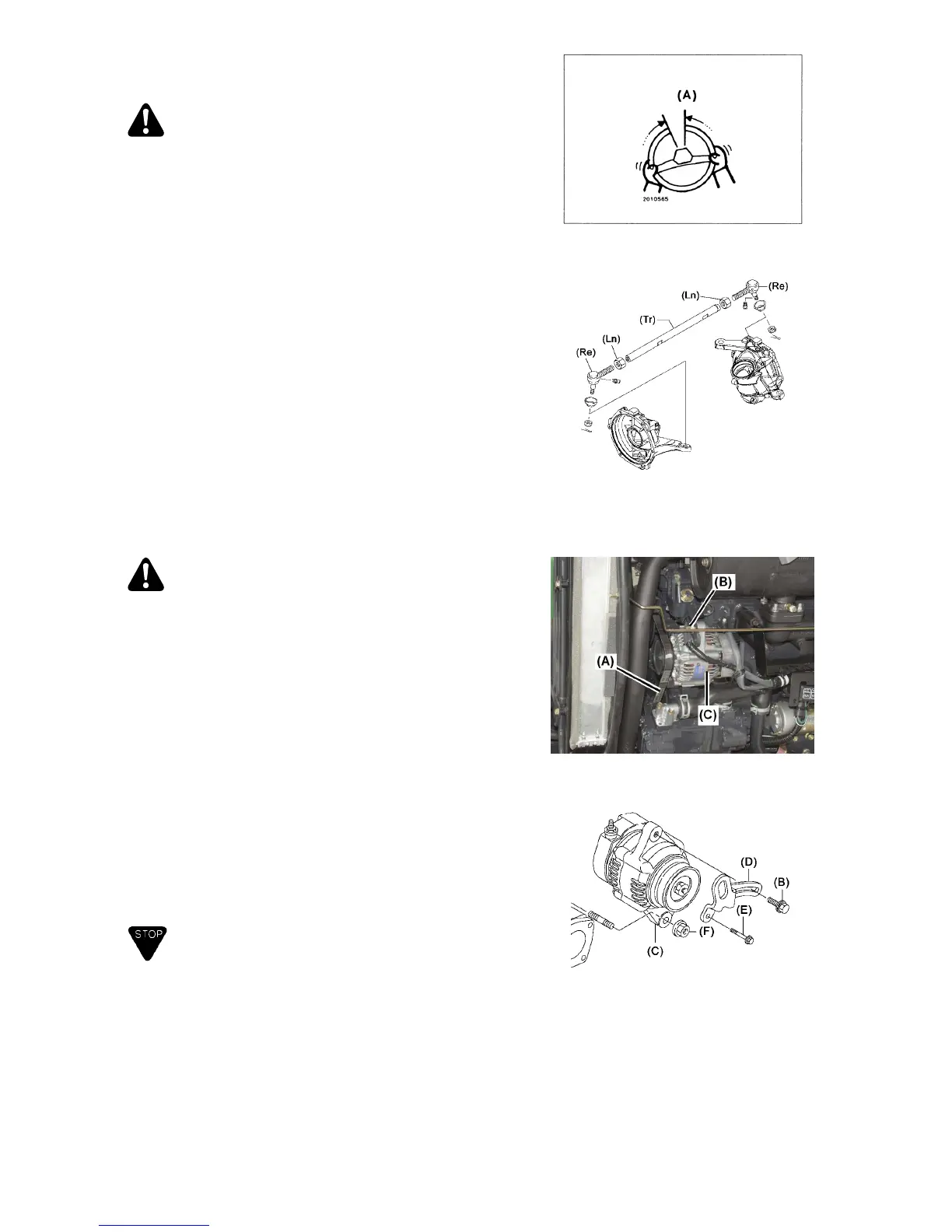

17. Checking steering wheel
WARNING
Check free play of steering wheel. The normal free
play is 20-50 mm.
This tractor is equipped with hydrostatic power steering
and it causes less wearing of steering system.
When free play is more than normal, check wearing of
tie rod ends. The wearing of tie rod end causes more
free play on steering wheel.
(A) Steering wheel free play.
Measure the free play on wheel circle.
(Tr) Tie rod (Re) Tie rod end
18. Adjusting fan belt
CAUTION
Stop the engine and wait until the engine is sufficiently
cooled down. Otherwise, you may be burned.
Check
Press the fan belt with a finger at the midpoint and see
the belt deflections.
The specified deflection is 10 -15 mm.
Adjustment
(1)
Open the bonnet and pull upper part of the left side
cover and remove it.
(2) Loosen generator bolt, belt adjuster bolt, and
generator nut.
(3) Move generator to stretch the belt tight. Tighten
generator bolt and see deflection. If the deflection is
10 - 15 mm, tighten generator bolt, generator nut
and belt adjuster bolt.
IMPORTANT
When tractor is new, fan belt stretched in a short time.
Check belt deflection frequently.
(A) Fan belt (B) Generator bolt.
(C) Generator
(B) Generator bolt (C) Generator
(D) Belt adjuster (E) Belt adjuster bolt
(F) Generator nut
