HYDRAULIC SYSTEM

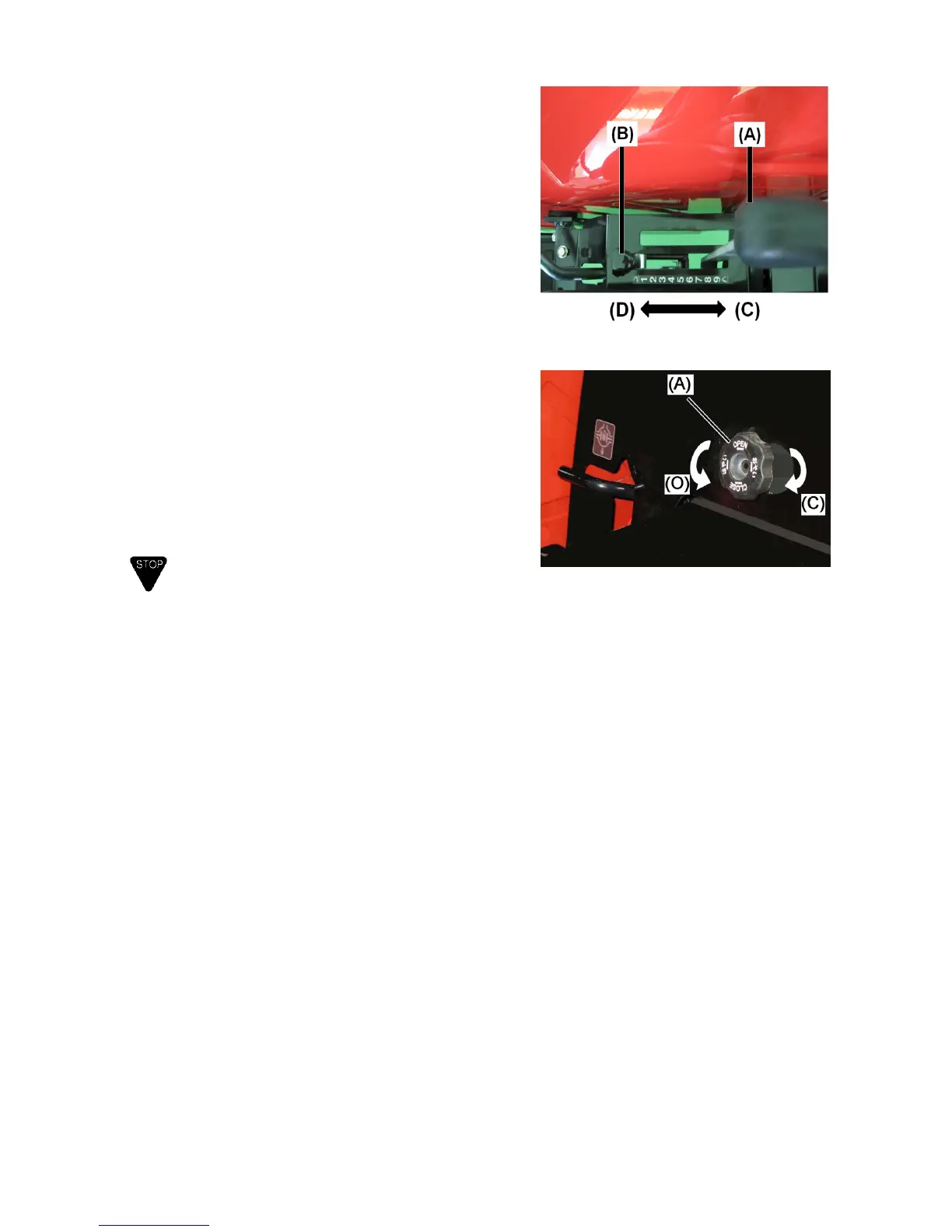

Position control lever
Position control lever holds desired height of a rear
hitched implement.
Lever stopper (B) limits lowering an implement to limit
the working range of the lever, or when traveling on
road.
(A) Position control lever
(B) Lever stopper
(C) Raise
(D) Lower
Hydraulic stop and slow return valve
The stop and slow return valve controls lowering speed
of implement.
(A) Hydraulic stop and slow return valve
(C) The lowering speed of implement becomes
slower and it stops hydraulic flow when turned
fully.
(O) It opens the valve and the lowering speed of
implement becomes fast (normal speed).
IMPORTANT
When driving on a road with rear hitched implement,
open the hydraulic stop and slow return valve and fix
the hydraulic control lever in raise position with stopper.
Do not operate the hydraulic control lever when the
valve is fully closed. Otherwise, it may damage
hydraulic parts.
