EF393T OM
45
17. Power steering
This tractor is equipped with hydrostatic powered steering
system.
The hydraulic power assists steering works only when the
engine is running. The steering wheel may become a
little heavier at low engine speeds
WARNING
Whenever the engine is running, steering wheel turns with
light force. Avoid from abrupt steering or it may cause
uncontrollable steering and may cause accident or injury.
IMPORTANT
1) When the steering wheel is turned to its end, the relief
valve works and chirp sound comes out. If relief valve
works in a short time, it is not a problem but long time
work of valve may cause trouble in the hydraulic
system.
2) When tractor dose not run, do not turn steering wheel
as much as possible. It may cause damage on tires
or rims.

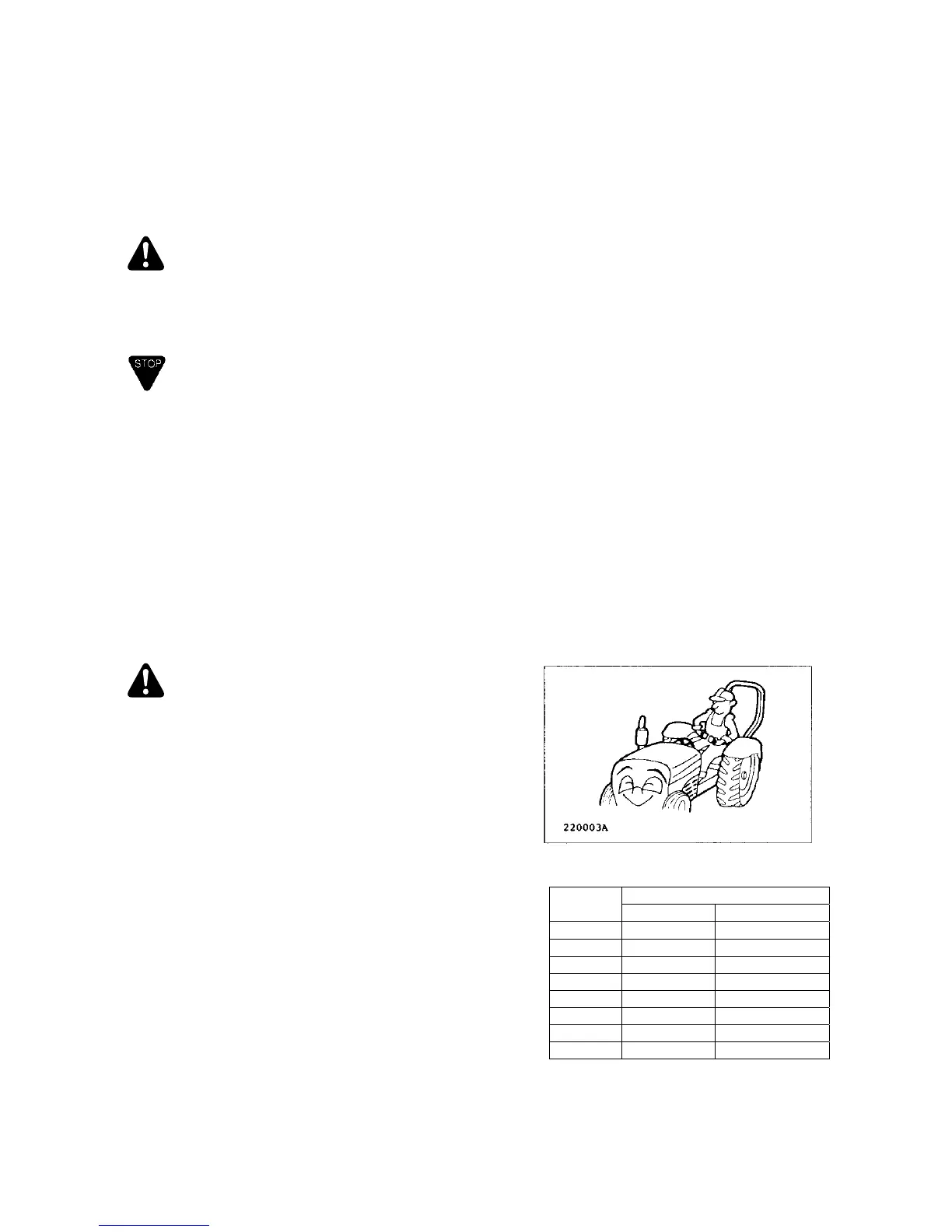

18. Safety frame (ROPS)
The safety frame is designed to protect the driver from
an accident. Never fail to use the safety frame when
the tractor is in use.
WARNING
Always fasten the seat belt while operating the tractor
with Roll-over Protective Structure up.
Do not use the seat belt if the foldable Roll-over
Protective Structure (ROPS) is in the folded position or
the tractor does not have the ROPS.
Do not modify the safety frame. Safety factor can be
lost.
Damaged frame should be replaced as a complete set.
Partial repair may lead loss of safety level.
19. Tightening torque of bolts and nuts
Bolts and nuts being used on this tractor are of grade “7T”
unless otherwise grade is not specified in this manual.
Tighten torques show on right table.
Bolt size Grade 7T
(mm) (N-m) (kgf-m)
M6 8 - 12 0.8 - 1.2
M8 23 - 30 2.3 - 3.0
M10 44 - 59 4.5 - 6.0
M12 78 - 98 8.0 - 10.0
M14 118 - 147 12.0 - 15.0
M16 167 - 206 17.0 - 21.0
M18 235 - 284 24.0 - 29.0
M20 323 - 402 33.0 - 41.0
