EF393T OM
41
12. Wheel tread
IMPORTANT
The tread of front and rear wheel is not adjustable.
Wheel tread
Tire Size
(ply rate) Wheel tread (mm)
Front 8-16 (4) 1,065
Rear 12.4-24 (6) 1,120

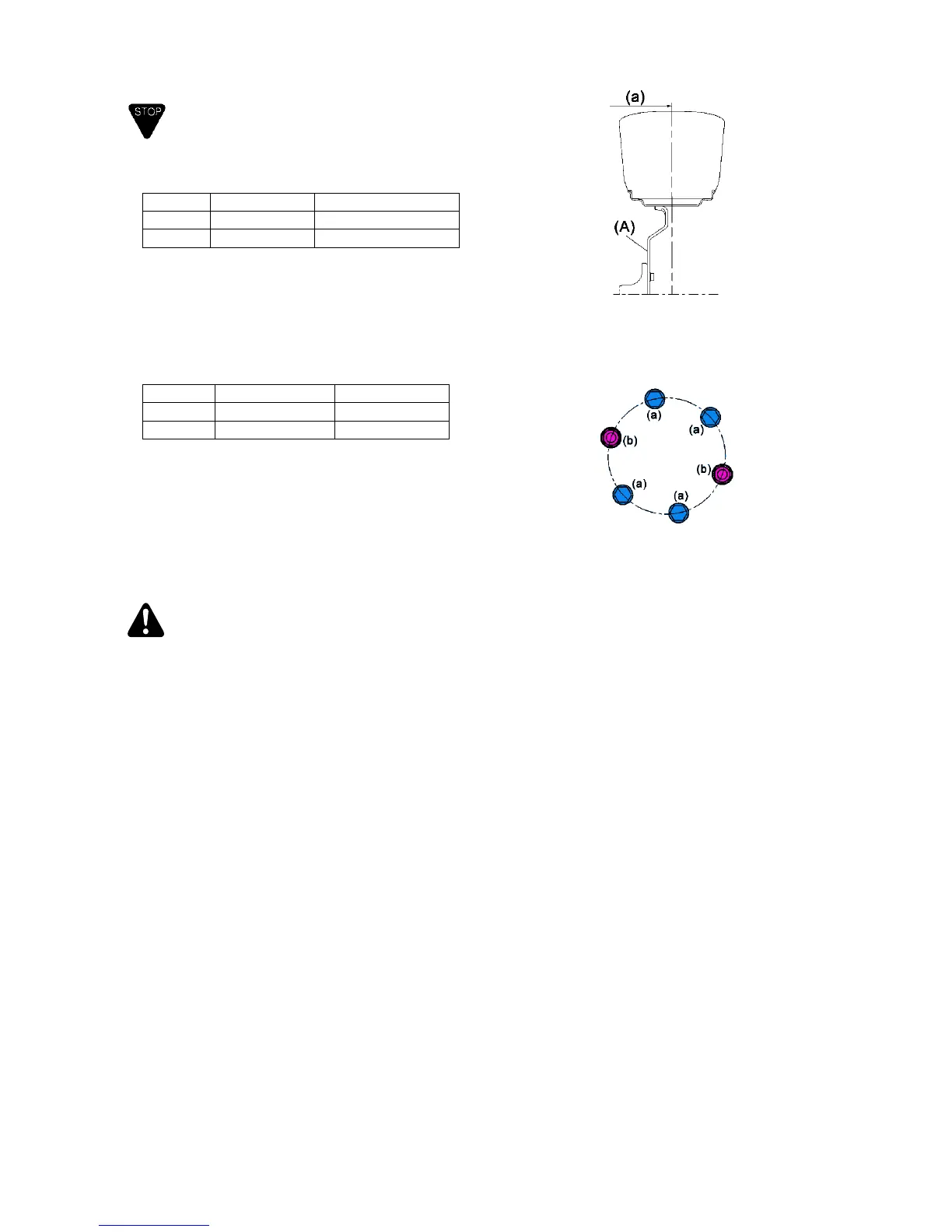

Rear wheel
(A) Wheel disc
(a) Wheel tread
Tightening torque of wheel disc mounting bult and nut
Tire N-m
Kgf-m
Front 118-147 12.5-15.0
Rear 177-196 18.0-20.0
Front wheel disc mounting bolt: M14x24 fine tread
Rear wheel disc monting bolt and nut
(a) Bolt M14x24 fine tread
(b) Stud bolt M14x31 fine trad, nut M14 fine tread
and lock washer M14
DANGER
Do not move the tractor if the wheel mounting bolts
or nuts are loose. If the tractor is driven with loose
nuts or bolts, there is a possibility that an accident
will occur.
Make daily and periodic wheel inspections to check
for loose nuts and bolts on the wheels. If they are
loose, retighten them to the specified torque.
