EF393T OM
43

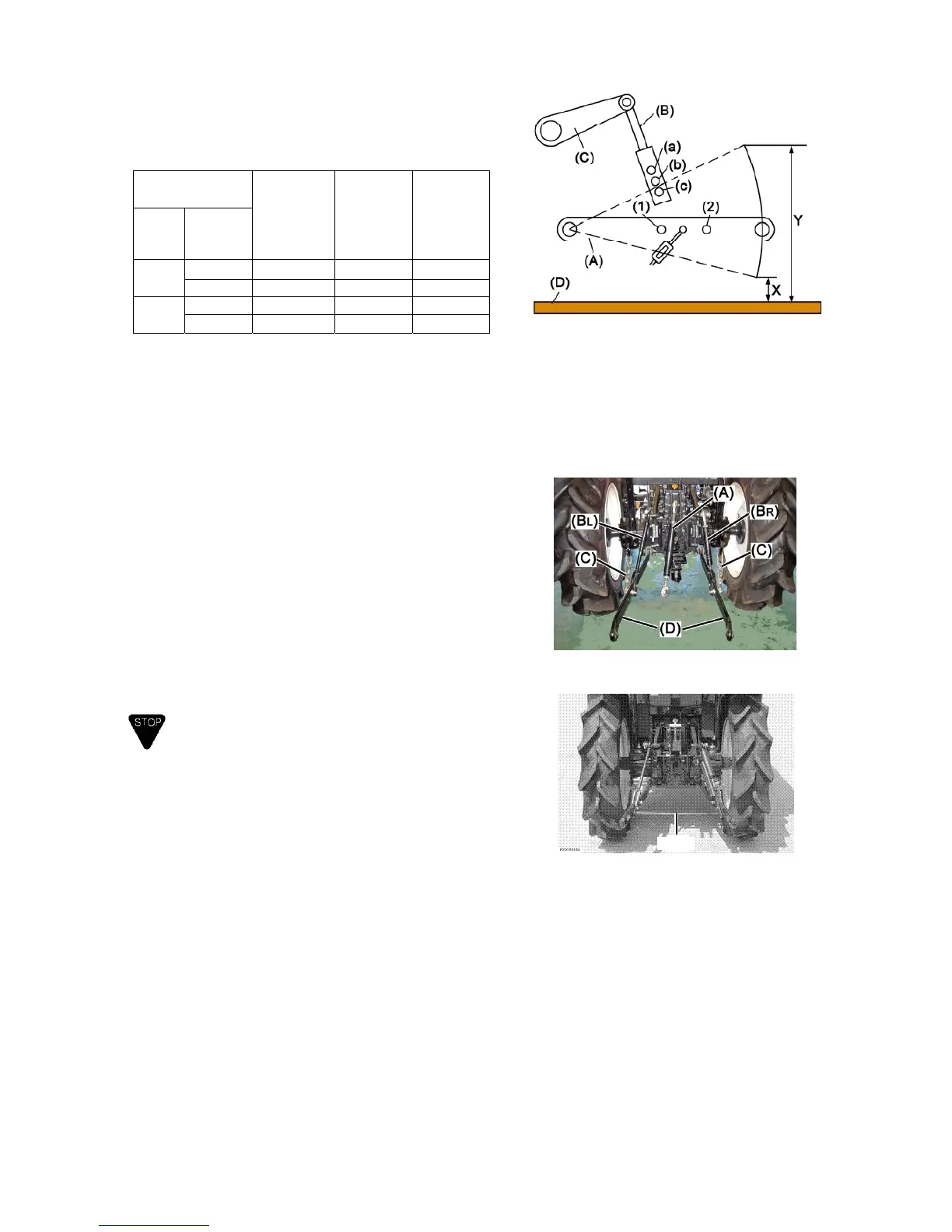

Lift link and lower link
Set lower link hole and lift link hole according to
implement and work.
Lower link hitch point height
Lower link
Lift link
hole (a)
Lift link
hole (b)
Lift link
hole (c)
hole
Hitch
point
height
(1)
X
270 212
162
Y
857 817
785
(2)
X 453 403 338
Y 848 818 785
(mm)
X: Minimum height of lower link hitch point
Y: Maximum height of lower ling hitch point
Heights would vary according to tire air pressure, lift
arm free play and/or field condition etc.
(A) Lower link (B) Lift link
(C) Lift arm (D) Ground
Check chain
Check chain adjustment.
(1) For implements such as a plough, harrow and subsoil
plow, adjust check chains so as an implement could
be swung about 5 cm. Make sure that lower ling
does not hit tire.
(2) For implements such as a rotary tiller and mower,
adjust check chains so that an implement can move
1cm to right and left.
IMPORTANT
When an implement is not attached to tractor, tie lower
links to avoid from hitting rear tire while driving.
(C) Check chain
