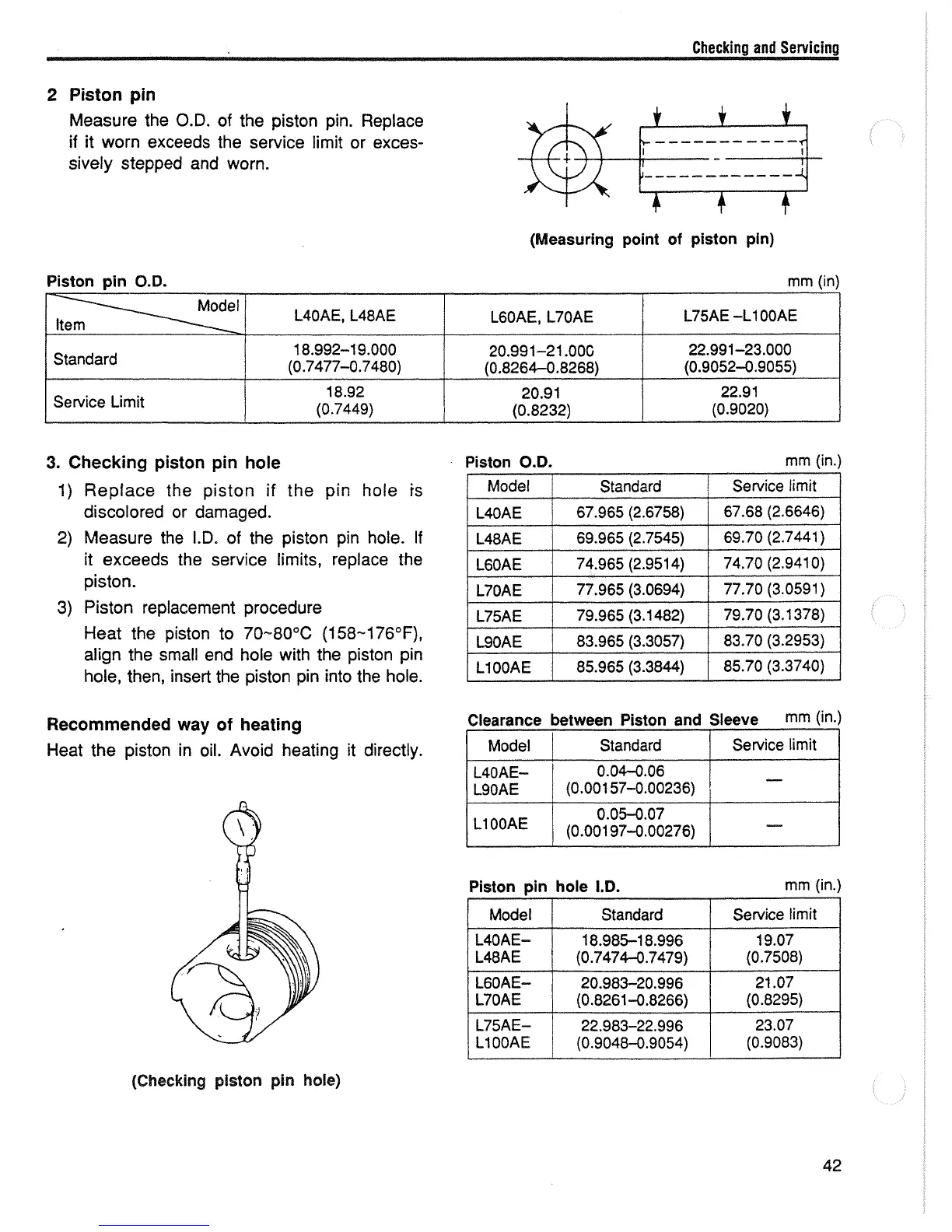

Yanmar L90AE - Piston Pin Servicing; Checking Piston Pin Hole; Piston O.D. Table; Clearance between Piston and Sleeve Table;Piston Pin Hole I.D. Table
