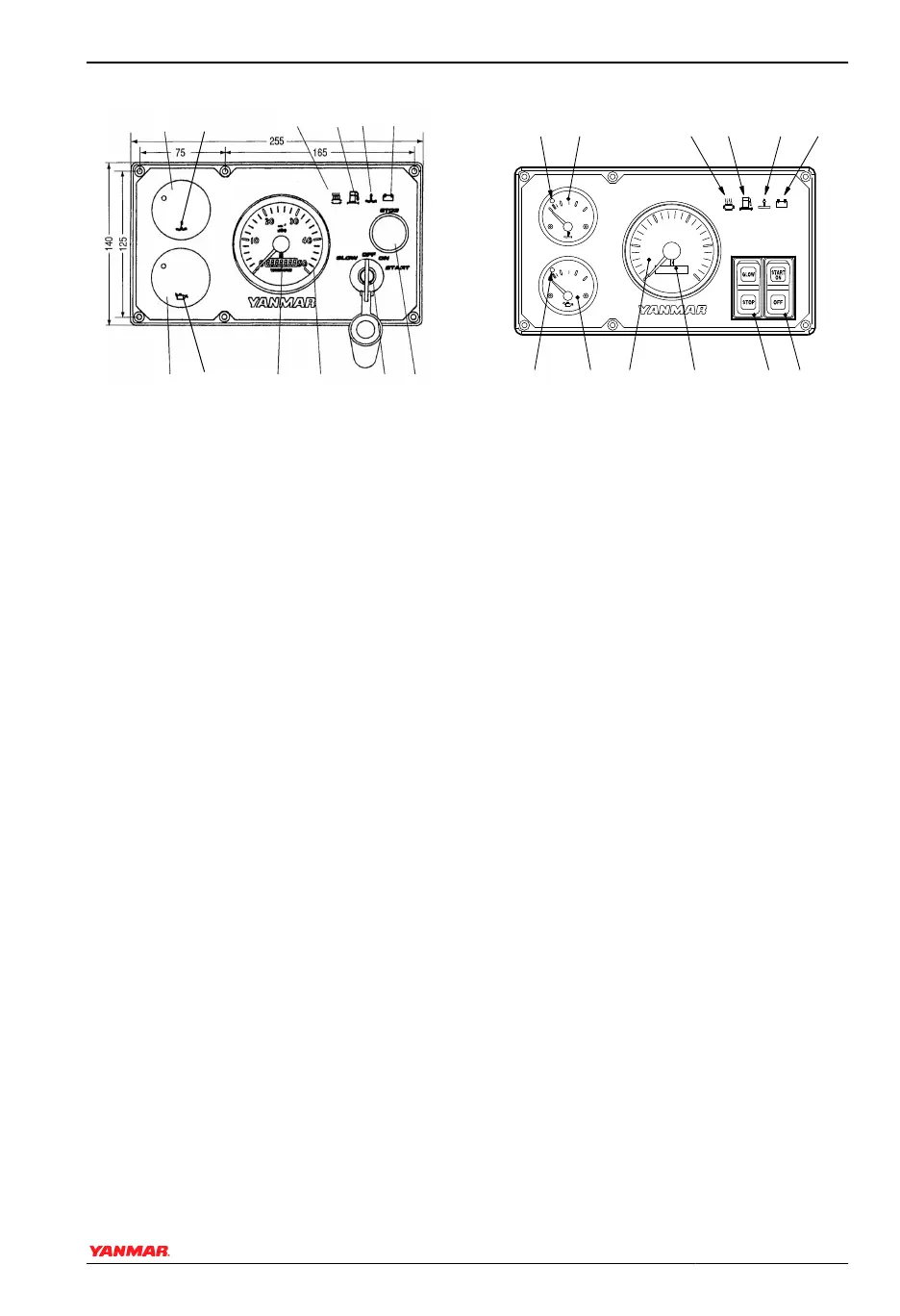

New C-Type
0000473SD
(1)
(2)
(3)
(4)
(5)
(11)
(6)
(12)
(7) (8)
(9)
(10)
Figure 7
1 – Battery Low Charge Alarm
2 – Sail-Drive Seal Warning Lamp
3 – Fuel Filter Warning Lamp
4 – Seawater Insufficient Flow Alarm
5 – Coolant Temperature Gauge
6 – Engine Oil Pressure Gauge
7 – Hour Meter
8 – Tachometer
9 – Key Switch
10–STOP Button
11–Coolant High Temperature
Warning Lamp
12–Engine Oil Low Pressure
Warning Lamp
C (Keyless) - Type
(10) (9)
(2)
(11) (8) (7)
(1)
(12)
(5) (6)(4)(3)
026103-00X
Figure 8
1 – Coolant High Temperature
Indicator
2 – Coolant Temperature Gauge
3 – Not Used On This Engine
4 – Water in Fuel Filter Indicator
5 – Water in Sail Drive Charge
Indicator
6 – Battery Low Charge Indicator
7 – ON/OFF/START Switch
8 – GLOW/STOP Switch
9 – Hourmeter
10–Tachometer
11–Engine Oil Pressure Gauge
12–Engine Oil Low Pressure
Indicator
BEFORE YOU OPERATE
SD Operation Manual 21
